NSN 5342-01-104-1801 T44AB10, T44-AB-10, 7576152
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-01-104-1801 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: T44AB10, T44-AB-10, 7576152, 757615-2, 09A08404, 09A084-04, 5342-01-104-1801, 01-104-1801, 5342011041801, 011041801
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 NOV 1980 | 01-104-1801 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

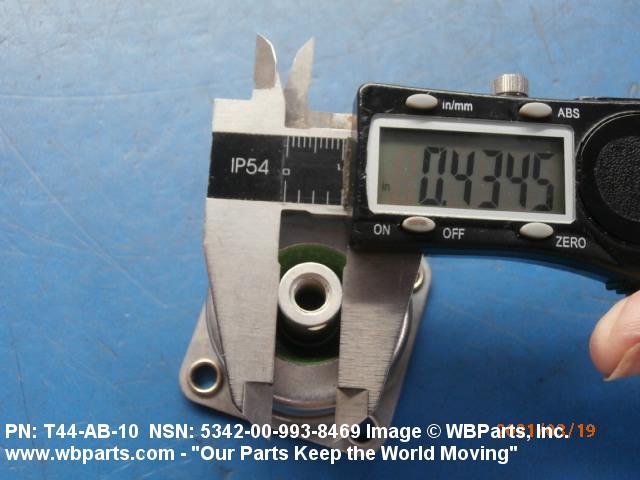

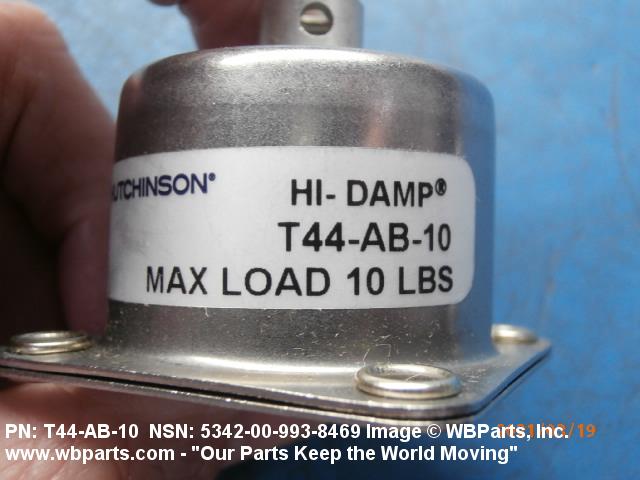

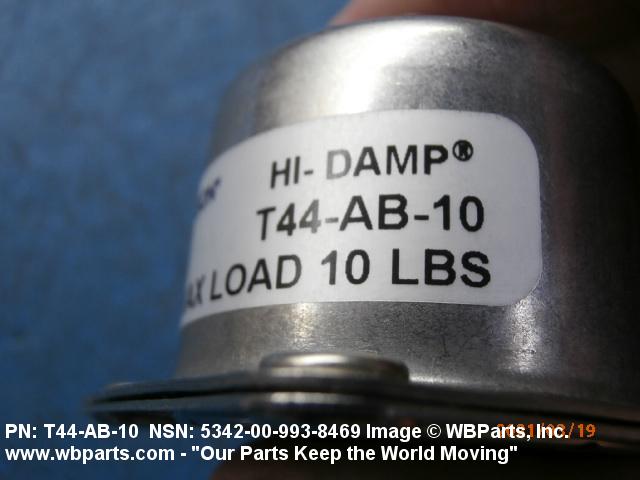

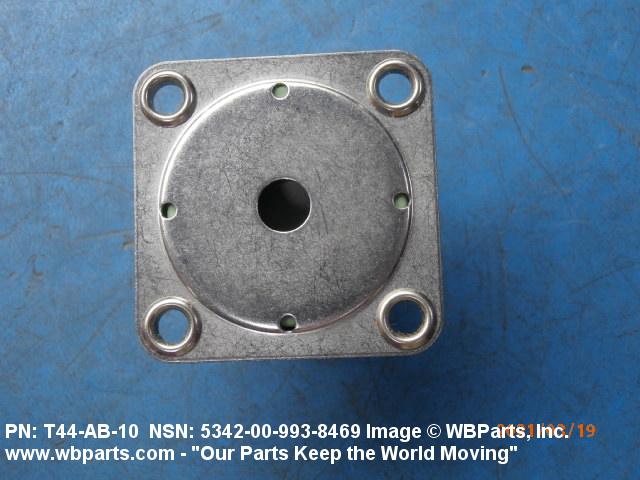

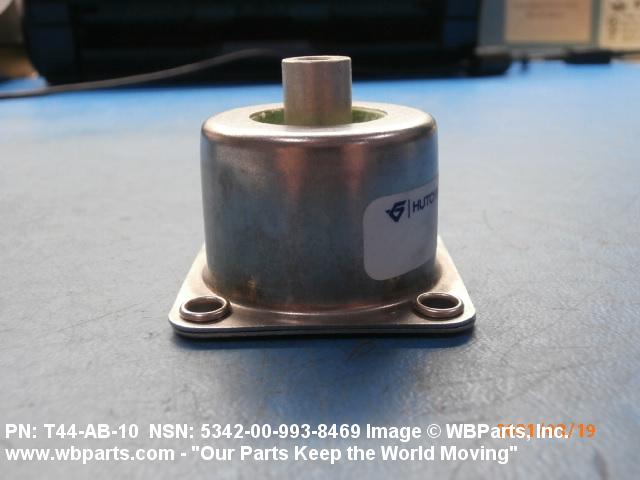

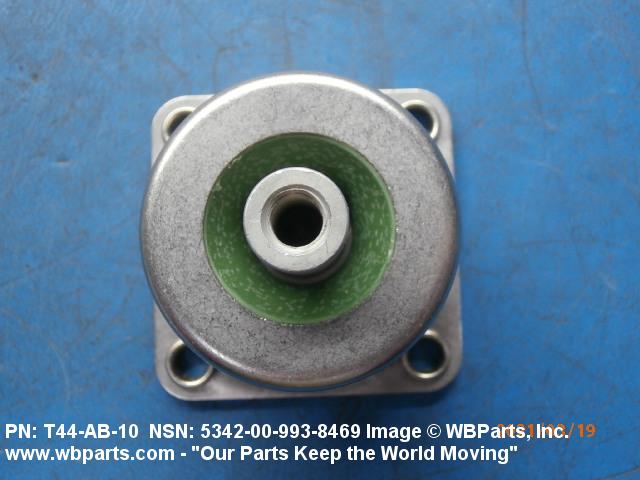

Drawings & Photos | NSN 5342-01-104-1801
Demand History | NSN 5342-01-104-1801
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| T44AB10 | 2023-02-21 | 1000 | US |
| 5342-01-104-1801 | 2022-10-18 | 778 | US |
| 5342-01-104-1801 | 2022-10-10 | 350 | US |
| T44AB10 | 2021-05-18 | 12 | Malaysia |
| T44AB10 | 2019-08-20 | 8 | US |
| 5342-01-104-1801 | 2017-10-26 | 1 | DIBBS-RFPs |
| 5342-01-104-1801 | 2014-07-31 | 573 | DIBBS |
| 5342-01-104-1801 | 2014-07-23 | 573 | DIBBS |
| 5342-01-104-1801 | 2012-09-17 | 1205 | DIBBS |
| T44AB10 | 2012-04-02 | 4 | United States |
| 5342-01-104-1801 | 2010-11-22 | 350 | US |
| 5342-01-104-1801 | 2009-02-05 | 539 | DIBBS |
| 5342-01-104-1801 | 2009-01-27 | 539 | DIBBS |
| 5342-01-104-1801 | 2008-12-10 | 562 | DIBBS |
| 5342-01-104-1801 | 2008-10-06 | 71 | DIBBS |
| 5342-01-104-1801 | 2008-10-06 | 127 | DIBBS |
| 5342-01-104-1801 | 2008-08-11 | 108 | DIBBS |
Cross Reference | NSN 5342-01-104-1801
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-104-1801
Related Products | NSN 5342-01-104-1801
Technical Data | NSN 5342-01-104-1801

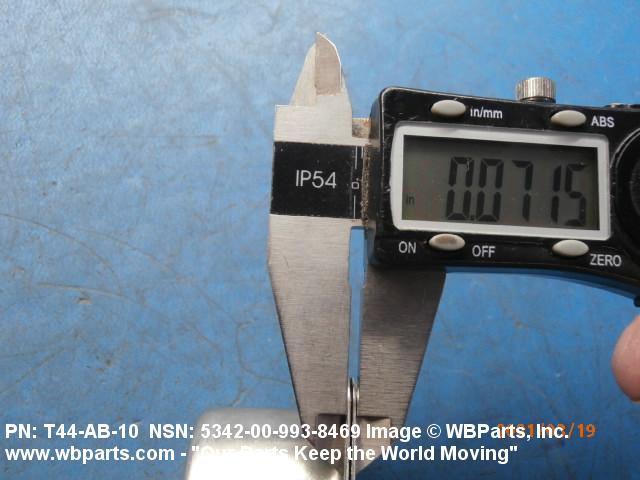

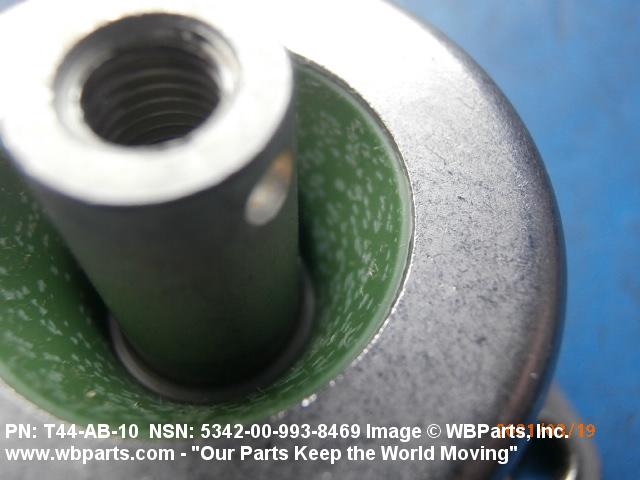

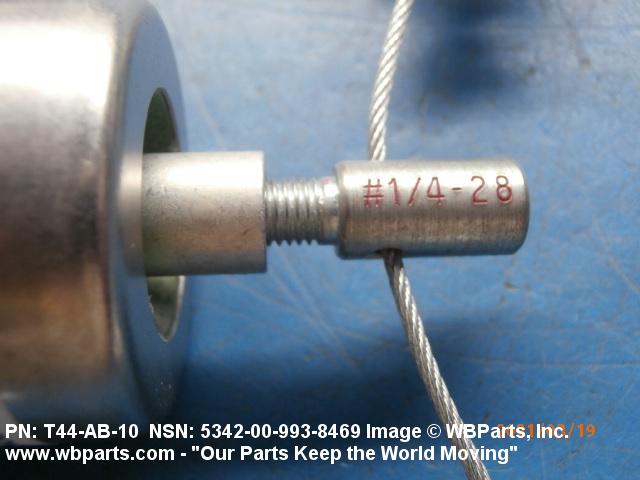

| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | ALUMINUM ALLOY |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL, CORROSION RESISTING BASE STEEL, CORROSION RESISTING CUP |
| STYLE DESIGNATOR | C60 ROUND SPRING COMPRESSION FOUR-HOLE FLANGE |
| FLANGE THICKNESS | 0.125 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| THREAD SIZE | 1/4-28 |

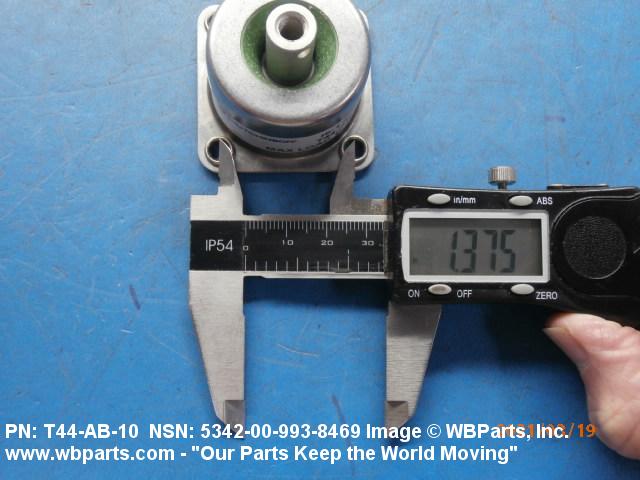

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM |

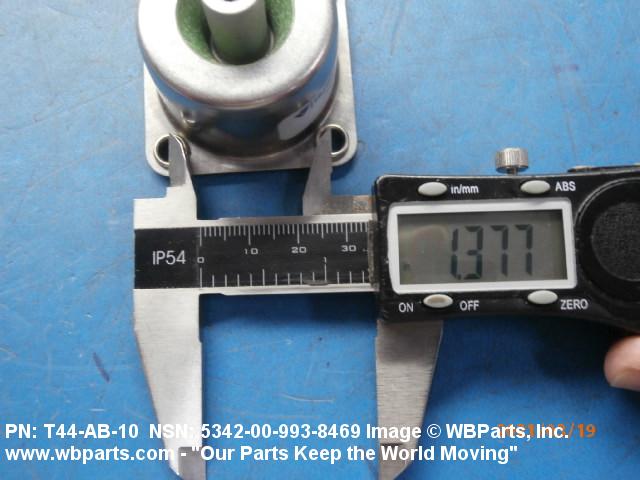

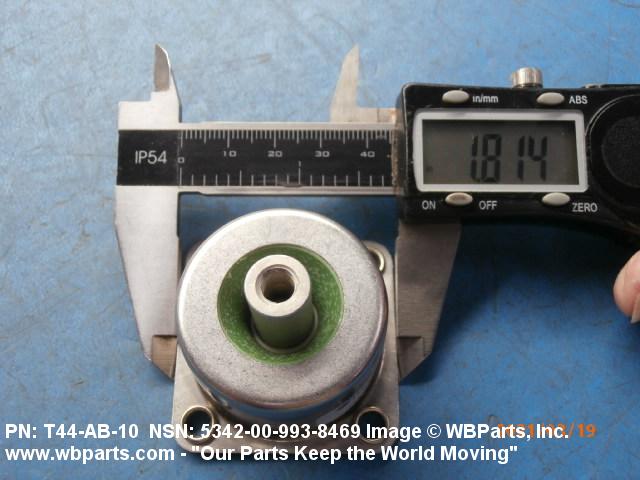

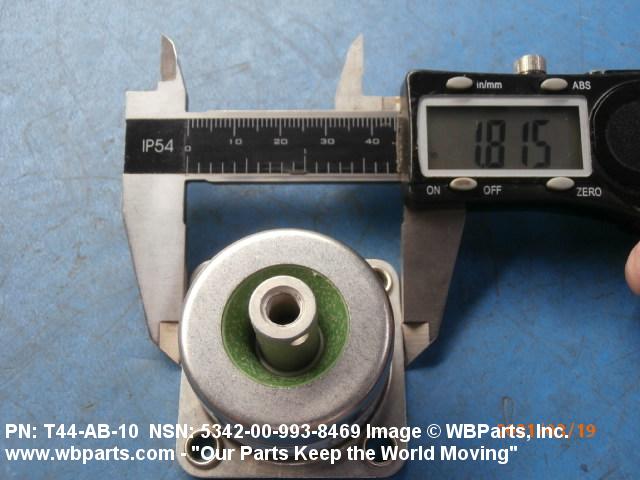

| FLANGE LENGTH | 1.781 INCHES MINIMUM AND 1.843 INCHES MAXIMUM |
| FLANGE WIDTH | 1.781 INCHES MINIMUM AND 1.843 INCHES MAXIMUM |
| STUD LENGTH | 0.692 INCHES MINIMUM AND 0.756 INCHES MAXIMUM |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM |

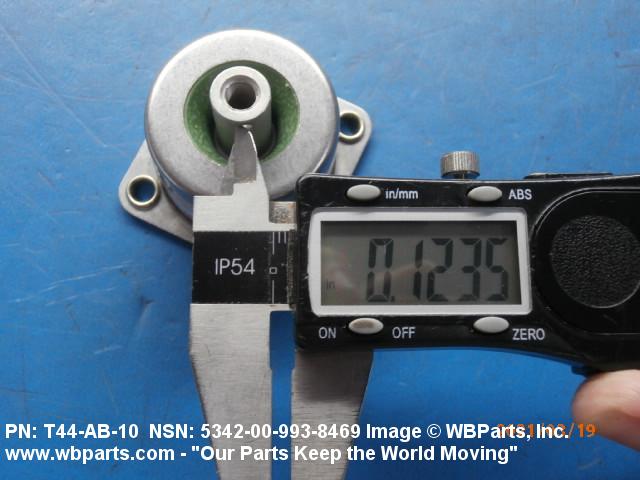

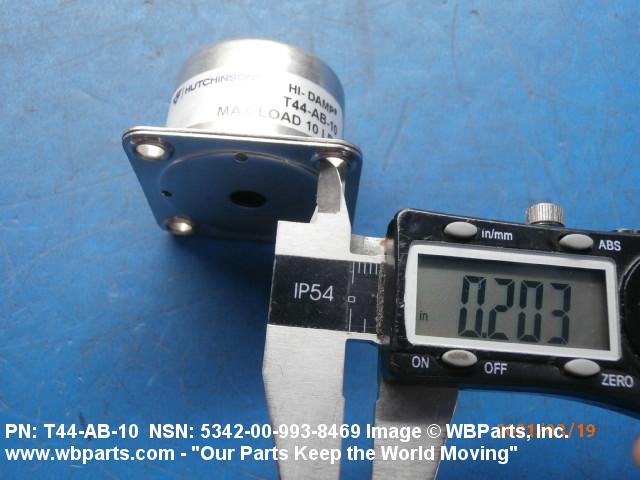

| FLANGE MOUNTING HOLE DIAMETER | 0.196 INCHES MINIMUM AND 0.206 INCHES MAXIMUM |

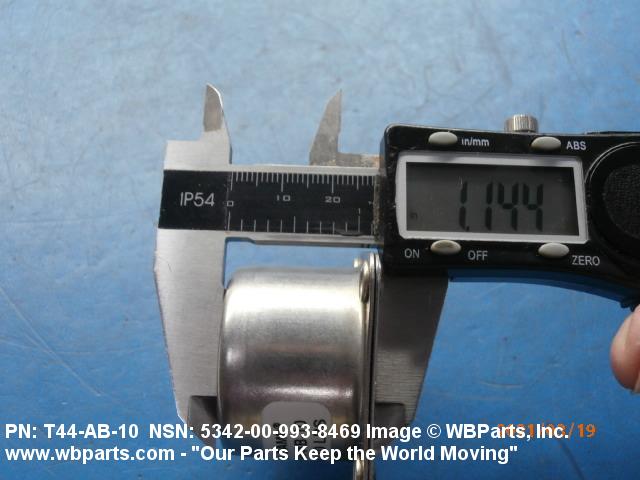

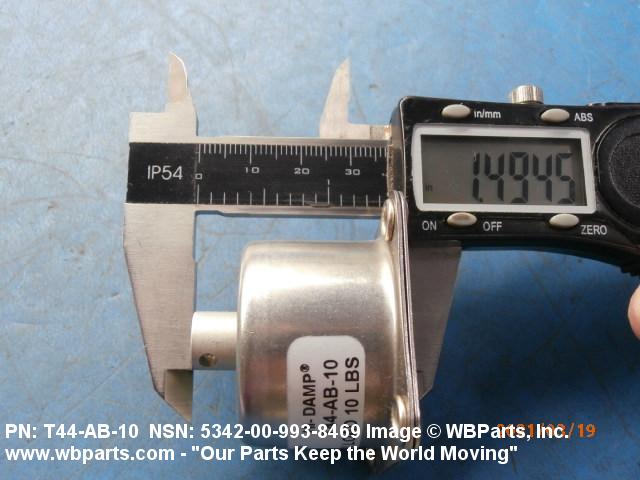

| HEIGHT | 1.124 INCHES MINIMUM AND 1.188 INCHES MAXIMUM |
| LOAD/FREQUENCY RANGE | 40.0 LB. LOAD FOR 7 TO 9 HERTZ |
| MAXIMUM LOAD RATING | 150.0 POUNDS |
| MANUFACTURERS CODE | 73030 |
| MFR SOURCE CONTROLLING REFERENCE | 757615-2 |
