NSN 5342-00-817-1085 NC1010T4, NC-1010-T4, NC1010T404

Product Details | WEAPON SYSTEM RESILIENT MOUNT

5342-00-817-1085 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.

Part Alternates: NC1010T4, NC-1010-T4, NC1010T404, NC-1010-T4-04, CUP32501MS, CUP32-501MS, 10656952001, 10656952-001, 12273557, 25735, 64020009, 640200-09, 5342-00-817-1085, 00-817-1085, 5342008171085, 008171085

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-817-1085	53589 ( MOUNT, RESILIENT, WEAPON SYSTEM )

Drawings & Photos | NSN 5342-00-817-1085

Part Number	Request Date	QTY	Origin
CUP32-501MS	2024-03-17	61	DIBBS
NC-1010-T4/04	2024-03-17	61	DIBBS
NC1010T4	2024-01-10	234	US
CUP32-501MS	2023-11-26	95	DIBBS
NC-1010-T4/04	2023-11-26	95	DIBBS
CUP32-501MS	2023-07-16	723	DIBBS
NC-1010-T4/04	2023-07-16	723	DIBBS
CUP32-501MS	2023-05-03	214	DIBBS
NC-1010-T4/04	2023-05-03	214	DIBBS
CUP32-501MS	2023-03-26	296	DIBBS
NC-1010-T4/04	2023-03-26	296	DIBBS
CUP32-501MS	2022-12-06	487	DIBBS
NC-1010-T4/04	2022-12-06	487	DIBBS
CUP32-501MS	2022-10-05	290	DIBBS
NC-1010-T4/04	2022-10-05	290	DIBBS
CUP32-501MS	2022-06-07	201	DIBBS
NC-1010-T4/04	2022-06-07	201	DIBBS
CUP32-501MS	2021-08-18	625	DIBBS
NC-1010-T4/04	2021-08-18	625	DIBBS
CUP32-501MS	2021-07-22	455	DIBBS
NC-1010-T4/04	2021-07-22	455	DIBBS
5342-00-817-1085	2020-05-08	1	United States
CUP32-501MS	2020-01-08	439	DIBBS
NC-1010-T4/04	2020-01-08	439	DIBBS
CUP32-501MS	2019-03-14	421	DIBBS
NC-1010-T4/04	2019-03-14	421	DIBBS
CUP32-501MS	2019-03-06	421	DIBBS
NC-1010-T4/04	2019-03-06	421	DIBBS
5342-00-817-1085	2018-11-08	319	DIBBS
5342-00-817-1085	2018-10-31	319	DIBBS
5342-00-817-1085	2013-03-05	2149	DIBBS
5342-00-817-1085	2012-08-10	394	DIBBS
5342-00-817-1085	2012-06-11	588	DIBBS
5342-00-817-1085	2010-05-20	30	DIBBS
5342-00-817-1085	2010-05-04	27	DIBBS
5342-00-817-1085	2010-04-13	14	DIBBS
5342-00-817-1085	2009-03-04	976	DIBBS

Cross Reference | NSN 5342-00-817-1085

Part Number	Cage Code	Manufacturer
10656952-001	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
12273557	19200	US ARMY ARDEC RDECOM
25735	81860	BARRY WRIGHT CORPORATION DBA BARRY CONTROLS
640200-09	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
CUP32-501MS	0LRN7	SHOCK TECH, INC.
NC-1010-T4	81860	BARRY WRIGHT CORPORATION DBA BARRY CONTROLS
NC-1010-T4-04	81860	BARRY WRIGHT CORPORATION DBA BARRY CONTROLS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-00-817-1085

Compare

Related Products | NSN 5342-00-817-1085

5342-00-817-4074, 5342-00-817-4929, 5342-00-817-5877, 5342-00-817-5878, 5342-00-818-0498

Technical Data | NSN 5342-00-817-1085

Characteristic	Specifications
RESILIENT MEMBER MATERIAL	RUBBER
NONMETALLIC HARDNESS RATING	NOT RATED
RIGID MEMBER MATERIAL AND LOCATION	STEEL OVERALL
RIGID MEMBER SURFACE TREATMENT AND LOCATION	CADMIUM OVERALL AND CHROMATE OVERALL

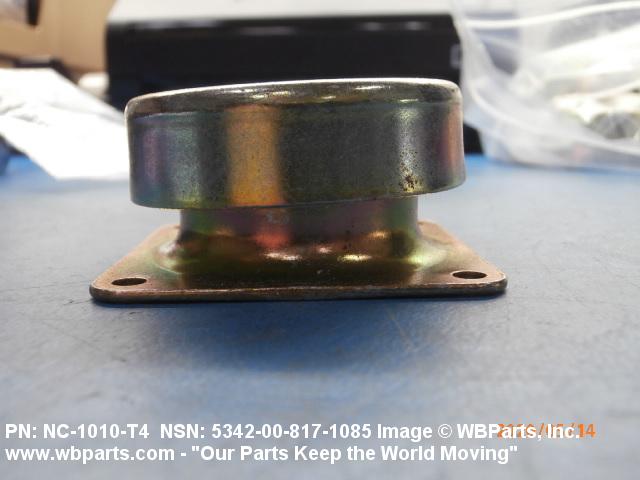

STYLE DESIGNATOR	C57 ROUND W/FLANGED BUSHING FOUR-HOLE FLANGE

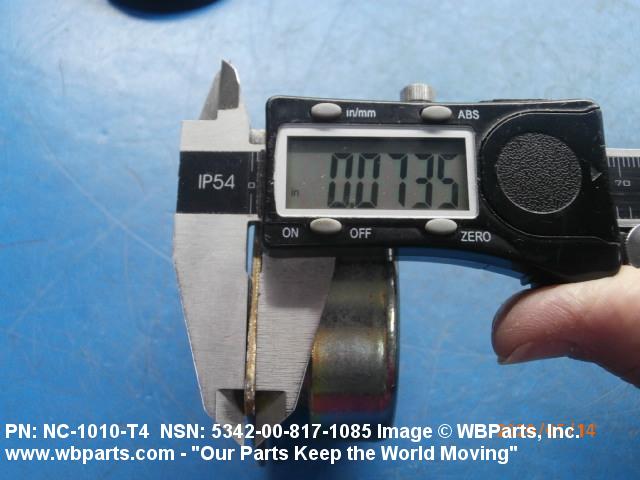

FLANGE THICKNESS	0.062 INCHES NOMINAL

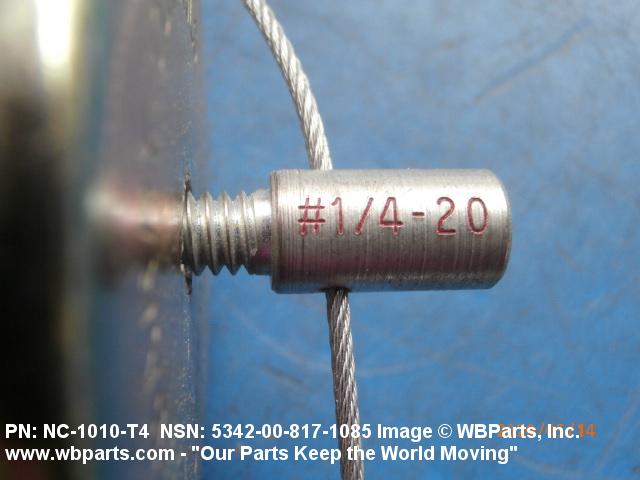

THREAD SIZE	1/4 /0.250 IN./ -20

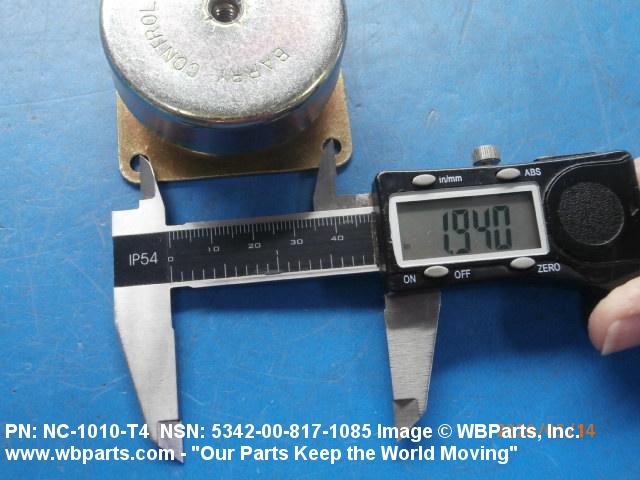

DISTANCE BETWEEN MOUNTING HOLE CENTERS	1.937 INCHES NOMINAL

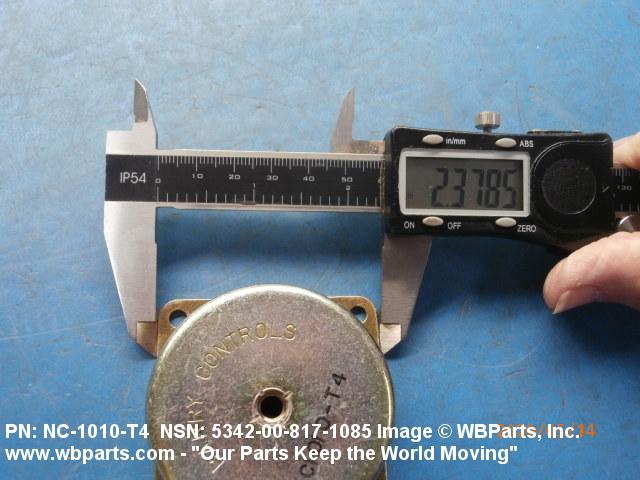

FLANGE LENGTH	2.375 INCHES NOMINAL

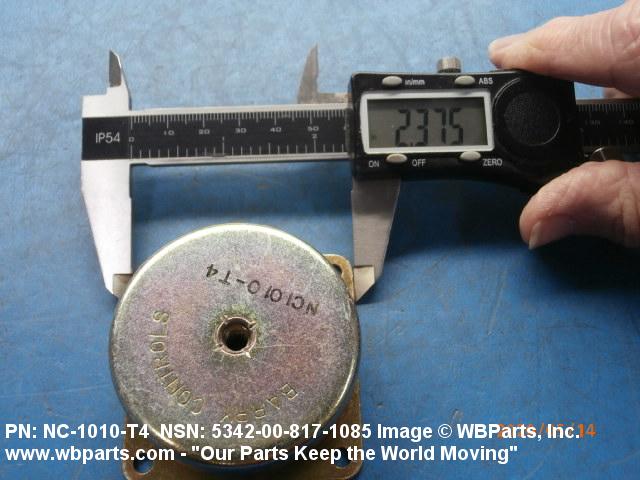

FLANGE WIDTH	2.375 INCHES NOMINAL
SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS	1.937 INCHES NOMINAL

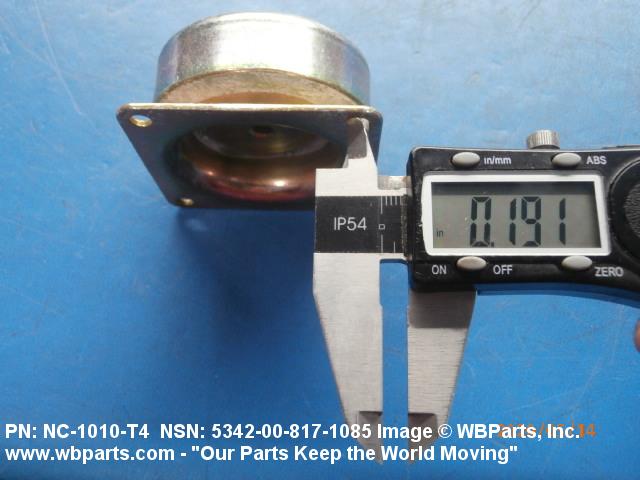

FLANGE MOUNTING HOLE DIAMETER	0.196 INCHES NOMINAL

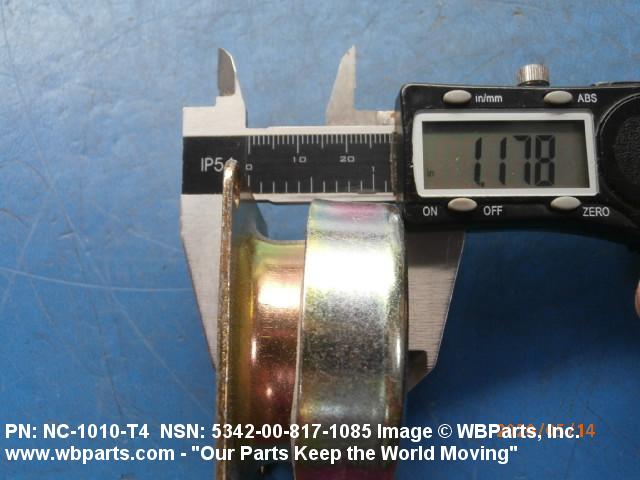

HEIGHT	1.125 INCHES NOMINAL
LOAD/FREQUENCY RANGE	NOT SPECIFIED
MAXIMUM LOAD RATING	NOT RATED
MANUFACTURERS CODE	81860
DESIGN CONTROL REFERENCE	NC-1010-T4-04

Restrictions/Controls & Freight Information | NSN 5342-00-817-1085

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	W	120 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093600	BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5342-00-817-1085

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	W	120 months
Purchasing	QTY UOM	1 EA : Each
