NSN 5342-00-530-8810 J757625, J7576-25 , MILM19379
Product Details | WEAPON SYSTEM RESILIENT MOUNT

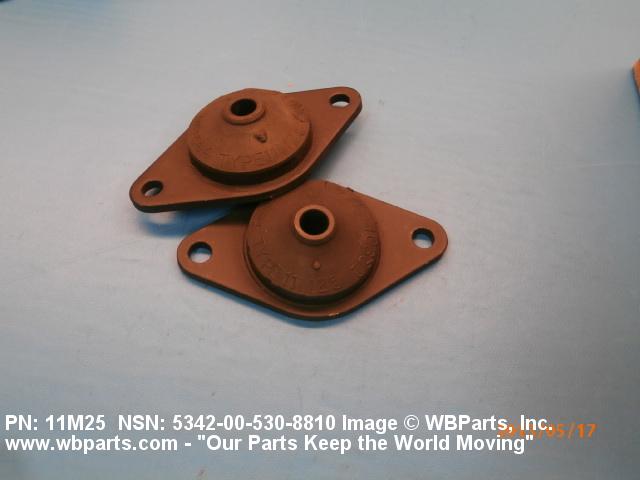

5342-00-530-8810 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.

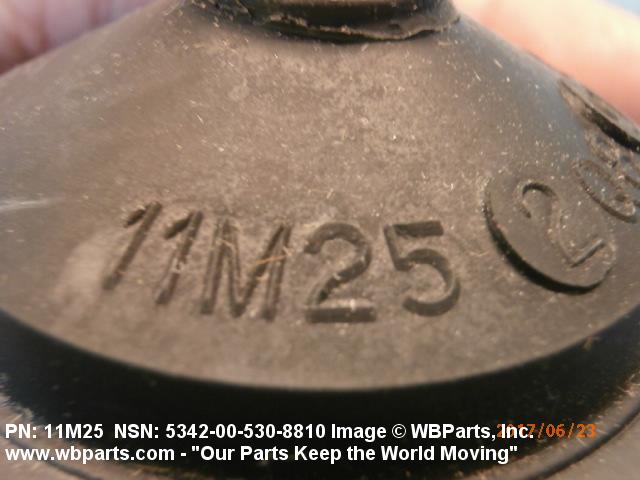

Part Alternates: J757625, J7576-25 , MILM19379, MIL-M-19379, 11M25, 5000-1112-13858, 500011121385824REVAPC11M25, 5000-1112-1385824REVAPC11M25, 500011121385824REVAPC1T04, 5000-1112-1385824REVAPC1T04, 5000S11121385, 5000-S1112-1385, 8031385824TYPE11M25, 803-1385824TYPE11M25, 5342-00-530-8810, 00-530-8810, 5000111213858, 5342005308810, 005308810
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-530-8810 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

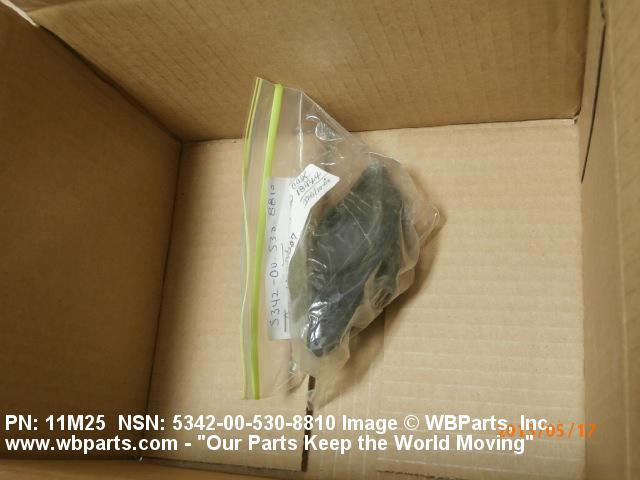

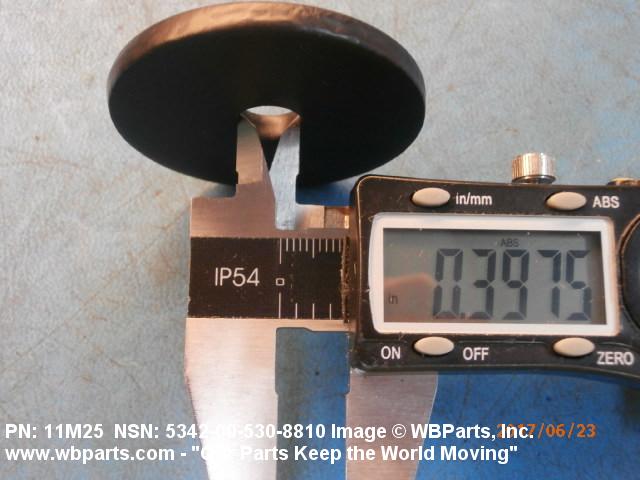

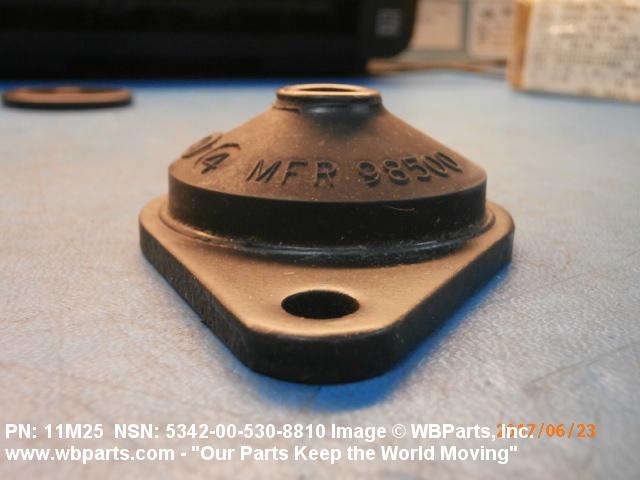

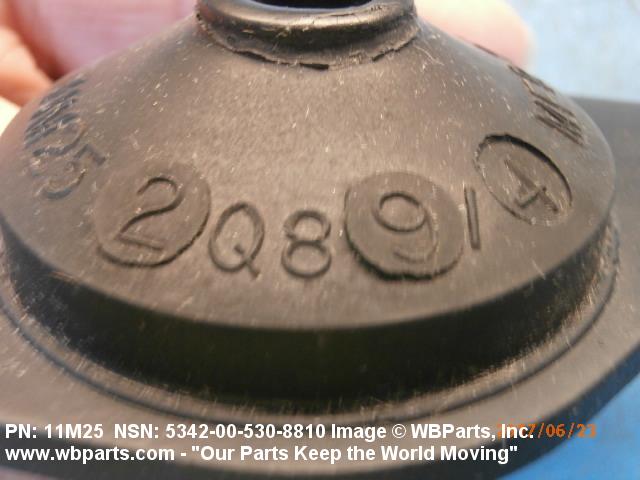

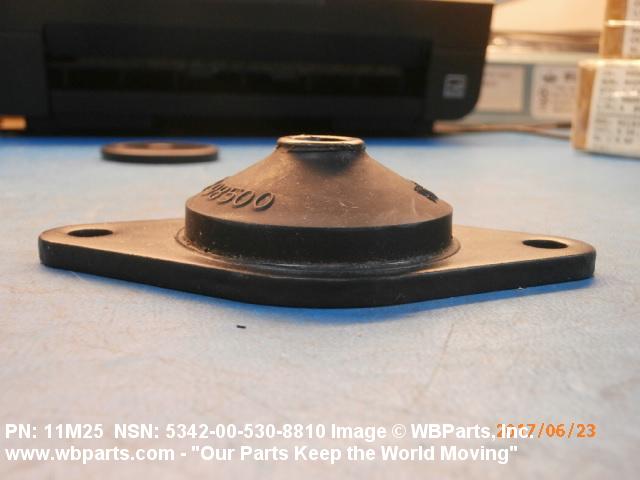

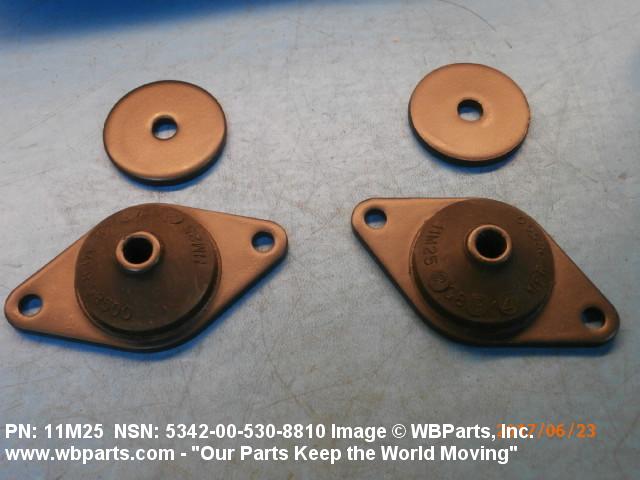

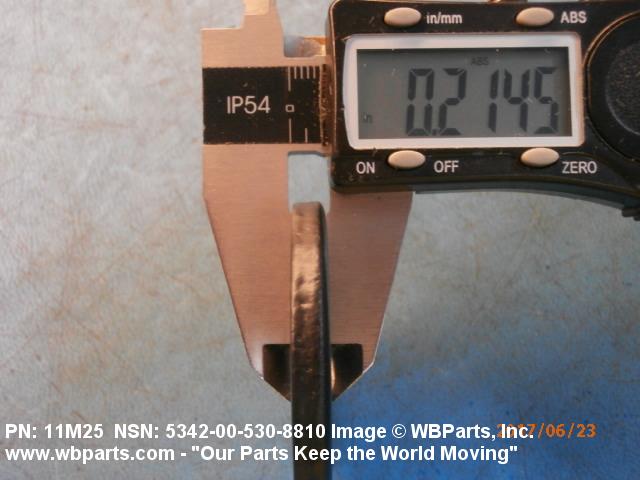

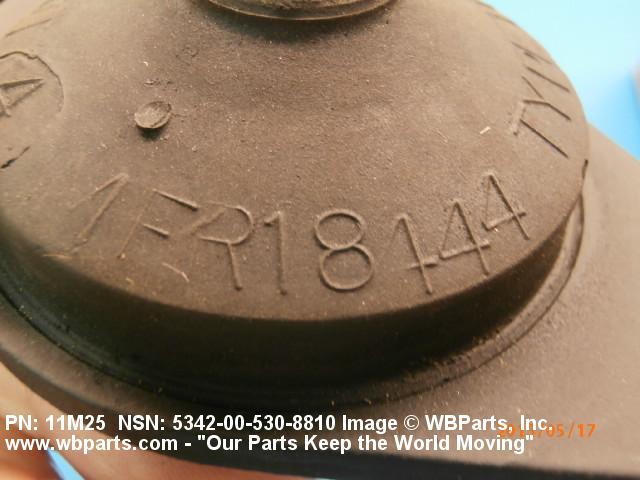

Drawings & Photos | NSN 5342-00-530-8810
Demand History | NSN 5342-00-530-8810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-530-8810 | 2023-10-278 | 12 | United States |
| 5342-00-530-8810 | 2021-03-80 | 872 | DIBBS |
| 5342-00-530-8810 | 2021-02-48 | 1 | DIBBS-RFPs |
| 5342-00-530-8810 | 2020-09-251 | 278 | DIBBS |
| 5342-00-530-8810 | 2020-05-135 | 185 | DIBBS |
| 5342-00-530-8810 | 2020-03-78 | 4 | DIBBS |
| 5342-00-530-8810 | 2020-03-65 | 80 | DIBBS |
| 5342-00-530-8810 | 2020-02-55 | 56 | DIBBS |
| 5342-00-530-8810 | 2020-01-30 | 9 | DIBBS |
| 5342-00-530-8810 | 2020-01-29 | 4 | DIBBS |
| 5342-00-530-8810 | 2020-01-28 | 1 | DIBBS |
| 5342-00-530-8810 | 2020-01-21 | 111 | DIBBS |
| 5342-00-530-8810 | 2020-01-21 | 300 | DIBBS |
| 5342-00-530-8810 | 2020-01-15 | 111 | DIBBS |
| 5342-00-530-8810 | 2019-10-289 | 4 | United States |
| 5342-00-530-8810 | 2019-08-239 | 4 | United States |
| 5342-00-530-8810 | 2019-08-213 | 1 | DIBBS-RFPs |
| 5342-00-530-8810 | 2018-11-308 | 269 | DIBBS |
| 5342-00-530-8810 | 2018-10-298 | 8 | United States |
| 5342-00-530-8810 | 2018-10-277 | 708 | DIBBS |
| 5342-00-530-8810 | 2018-09-266 | 708 | DIBBS |
| 5342-00-530-8810 | 2018-09-261 | 2663 | DIBBS |
| 5342-00-530-8810 | 2018-05-124 | 5 | UK |
| 5342-00-530-8810 | 2018-02-46 | 900 | DIBBS |
| 11M25 | 2017-09-271 | 199 | United States |
| 5342-00-530-8810 | 2017-09-271 | 199 | United States |
| 5342-00-530-8810 | 2017-08-235 | 2663 | DIBBS |
| 5342-00-530-8810 | 2017-06-160 | 4 | United States |
| 5342-00-530-8810 | 2017-05-122 | 173 | US |
| 11M25 | 2017-04-116 | 277 | US |
| 5342-00-530-8810 | 2017-03-89 | 1 | DIBBS-RFPs |
| 5342-00-530-8810 | 2017-03-88 | 1200 | US |
| 5342-00-530-8810 | 2016-10-287 | 2501 | DIBBS |
| 5342-00-530-8810 | 2016-02-57 | 1 | DIBBS-RFPs |
| 11M25 | 2013-05-129 | 2 | United States |
| 5342-00-530-8810 | 2012-06-170 | 600 | DIBBS |
| 5342-00-530-8810 | 2011-06-181 | 1060 | DIBBS |
| 5342-00-530-8810 | 2010-10-301 | 1980 | DIBBS |
| 5342-00-530-8810 | 2010-09-259 | 2 | DIBBS |
| 5342-00-530-8810 | 2010-09-259 | 8 | DIBBS |
| 5342-00-530-8810 | 2010-09-259 | 30 | DIBBS |
| 5342-00-530-8810 | 2010-08-238 | 1017 | DIBBS |
| 5342-00-530-8810 | 2010-06-167 | 1470 | DIBBS |
| 5342-00-530-8810 | 2010-06-153 | 1470 | DIBBS |
| 5342-00-530-8810 | 2010-05-147 | 1470 | DIBBS |
Cross Reference | NSN 5342-00-530-8810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11M25 | 18444 | OIL STATES INDUSTRIES, INC DBA SPECIAL PRODUCTS DIV |
| 11M25 | 27456 | DCX-CHOL ENTERPRISES, INC. DBA TELETRONIC DIVISION OF DCX-CHOL |
| 11M25 | 56154 | ACRO BROACH CO INC |
| 11M25 | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 5000-1112-13858 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| 5000-1112-1385824REVAPC11M25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5000-1112-1385824REVAPC1T04 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5000-S1112-1385 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 803-1385824TYPE11M25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| J7576-25 | 25472 | BFGOODRICH CO THE |
| J7576-25 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| MIL-M-19379 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-530-8810
Related Products | NSN 5342-00-530-8810
Technical Data | NSN 5342-00-530-8810
| Characteristic | Specifications |
|---|---|
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL OVERALL |

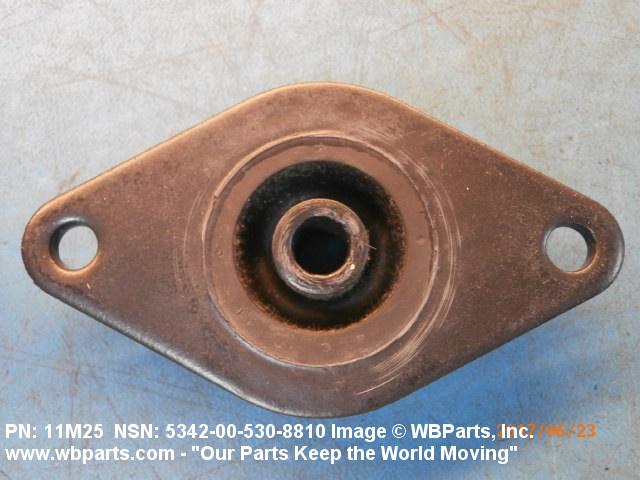

| STYLE DESIGNATOR | C45 ROUND W/FLANGED BUSHING TWO-HOLE FLANGE |

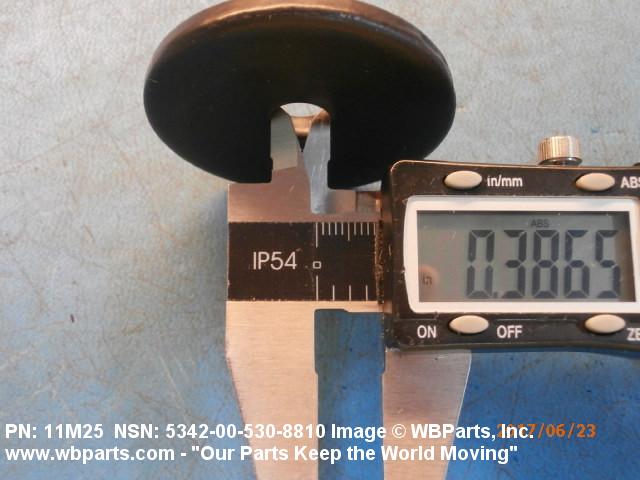

| INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| FLANGE THICKNESS | 0.333 INCHES NOMINAL |

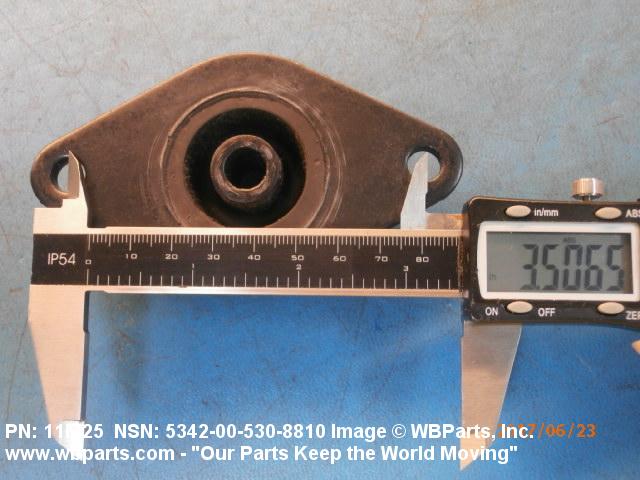

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 3.500 INCHES NOMINAL |

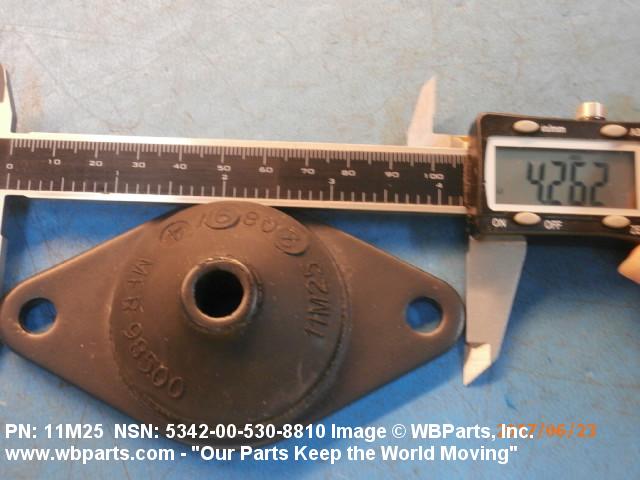

| FLANGE LENGTH | 4.250 INCHES NOMINAL |
| FLANGE WIDTH | 2.375 INCHES NOMINAL |

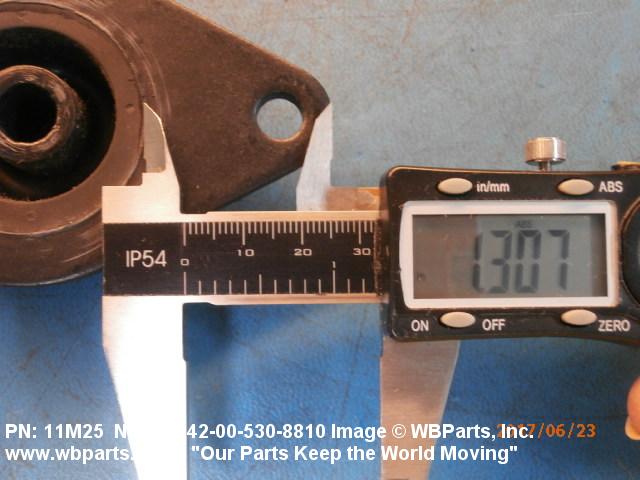

| DISTANCE FROM FLANGE TO END | 1.313 INCHES NOMINAL |

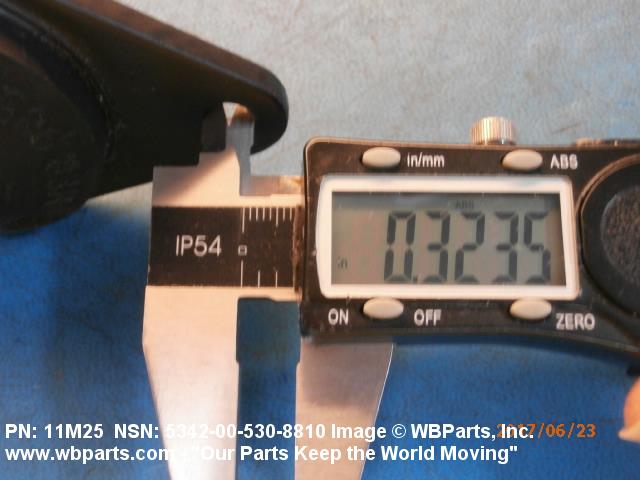

| FLANGE MOUNTING HOLE DIAMETER | 0.328 INCHES NOMINAL |
| HEIGHT | 2.250 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | RATED AT 15 LB LOAD FOR 13.2 TO 16.2 CYCLES PER SEC |
| MAXIMUM LOAD RATING | 25.0 POUNDS |
Restrictions/Controls & Freight Information | NSN 5342-00-530-8810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | T | 84 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-530-8810
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | T | 84 months |
| Purchasing | QTY UOM |
1 EA : Each |
