NSN 5342-00-526-3897 MS915271B0H, MS91527-1B0H, MS915271BOH
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-526-3897 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: MS915271B0H, MS91527-1B0H, MS915271BOH, MS91527-1BOH , L44BA101B0H, L44-BA-10-1B0H, 5342-00-526-3897, 00-526-3897, 5342005263897, 005263897
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-526-3897 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

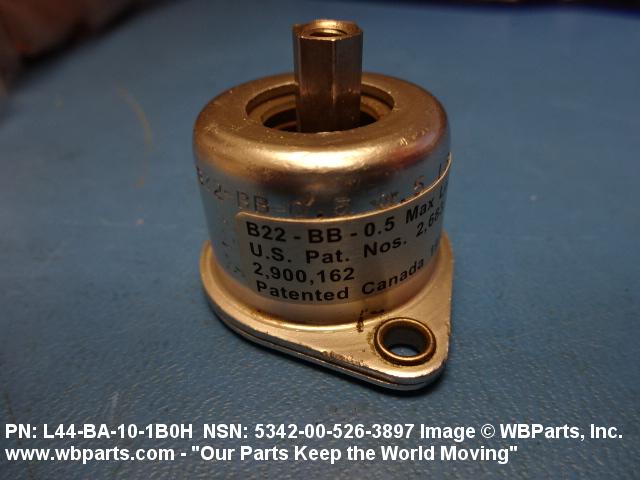

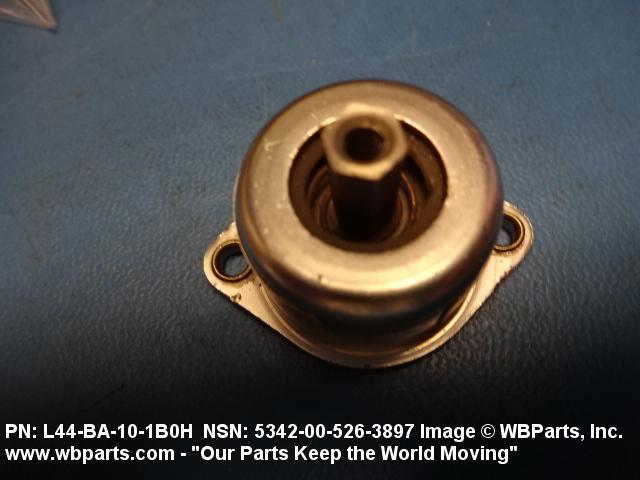

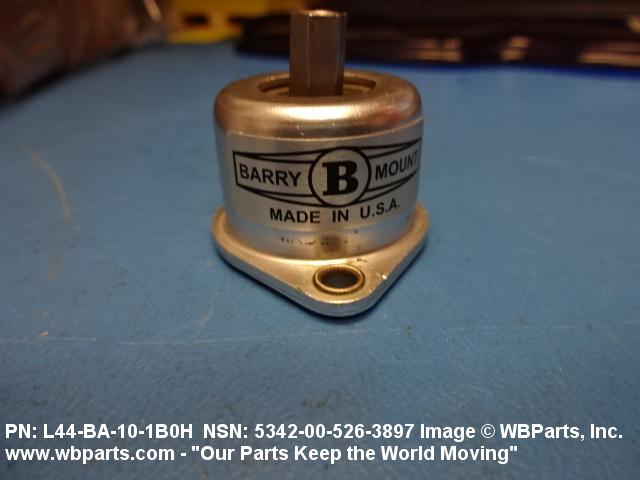

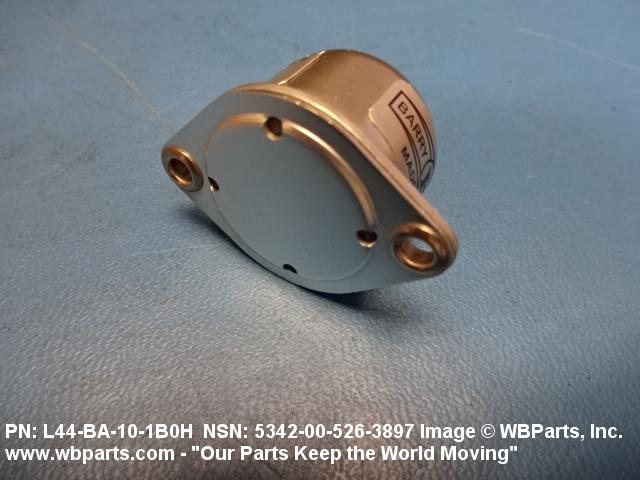

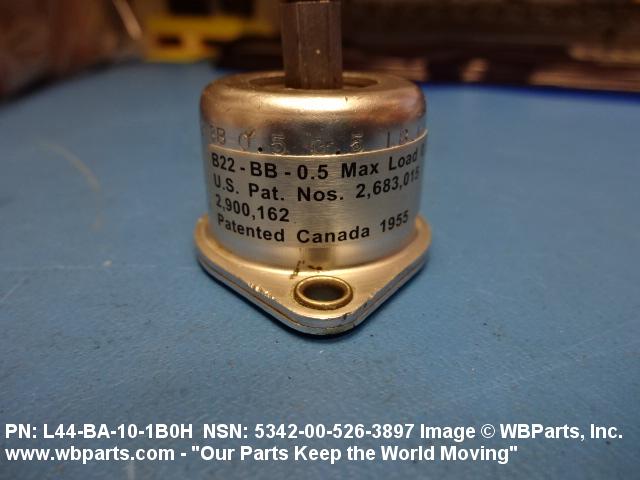

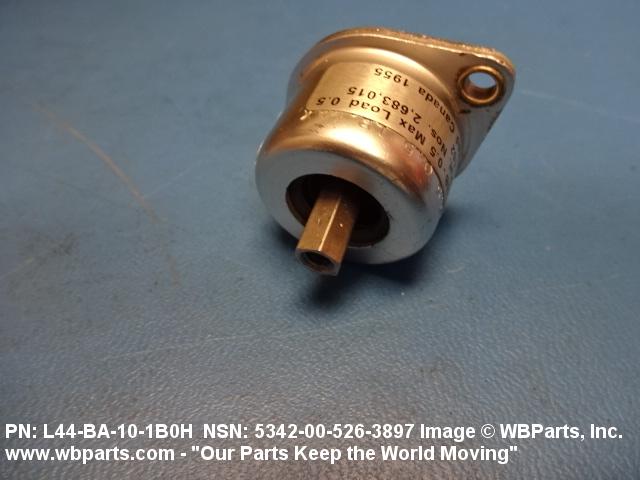

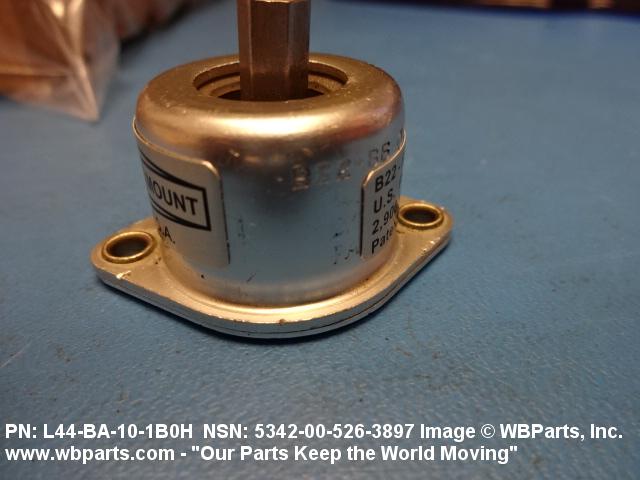

Drawings & Photos | NSN 5342-00-526-3897
Demand History | NSN 5342-00-526-3897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-526-3897 | 2022-09-265 | 76 | DIBBS |
| 5342-00-526-3897 | 2020-02-59 | 8 | ZA |
| 5342-00-526-3897 | 2017-01-04 | 35 | DIBBS |
| 5342-00-526-3897 | 2016-11-335 | 32 | United States |
| 5342-00-526-3897 | 2016-11-319 | 32 | DIBBS |
| 5342-00-526-3897 | 2015-05-133 | 55 | DIBBS |
| 5342-00-526-3897 | 2013-02-45 | 50 | DIBBS |
| 5342-00-526-3897 | 2012-11-325 | 12 | DIBBS |
| 5342-00-526-3897 | 2012-08-243 | 5 | DIBBS |
| MS915271BOH | 2011-05-140 | 48 | United States |
| MS915271BOH | 2011-05-140 | 48 | United States |
| MS915271BOH | 2011-05-140 | 48 | United States |
| 5342-00-526-3897 | 2010-02-49 | 18 | DIBBS |
| 5342-00-526-3897 | 2010-01-22 | 1 | DIBBS |
| 5342-00-526-3897 | 2010-01-22 | 5 | DIBBS |
| 5342-00-526-3897 | 2010-01-05 | 1 | DIBBS |
| 5342-00-526-3897 | 2010-01-05 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-526-3897
Related Products | NSN 5342-00-526-3897
Technical Data | NSN 5342-00-526-3897
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | STEEL, CORROSION RESISTING |
| RIGID MEMBER MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL ALUMINUM ALLOY OUTER CUP ALUMINUM ALLOY BASE PLATE |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | ANODIZED OVERALL OR CAUSTIC DIPPED OVERALL |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| THREAD SIZE | NO. 8-32 NC-3A |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.375 INCHES NOMINAL |
| FLANGE LENGTH | 1.813 INCHES NOMINAL |
| FLANGE WIDTH | 1.813 INCHES NOMINAL |
| STUD LENGTH | 0.625 INCHES NOMINAL |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.375 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| HEIGHT | 0.938 INCHES NOMINAL |
| MAXIMUM LOAD RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | B CLASS AND 1 SIZE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS91527-1B0H |
Restrictions/Controls & Freight Information | NSN 5342-00-526-3897
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-526-3897
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
