NSN 5340-01-487-0139 MS1410815C, MS14108-15C, 01-487-0139
Product Details | STRAP HINGE LEAF
5340-01-487-0139 An item consisting of one half only of HINGE, STRAP, with or without a pin.
Part Alternates: MS1410815C, MS14108-15C, 5340-01-487-0139, 01-487-0139, 5340014870139, 014870139
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 2001 | 01-487-0139 | 38515 ( LEAF, STRAP HINGE ) |

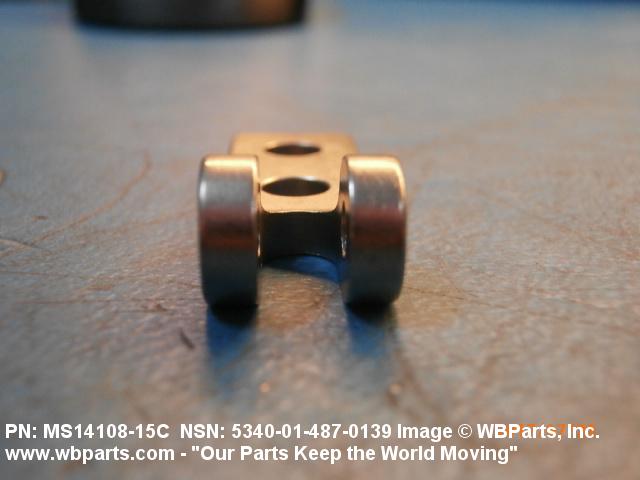

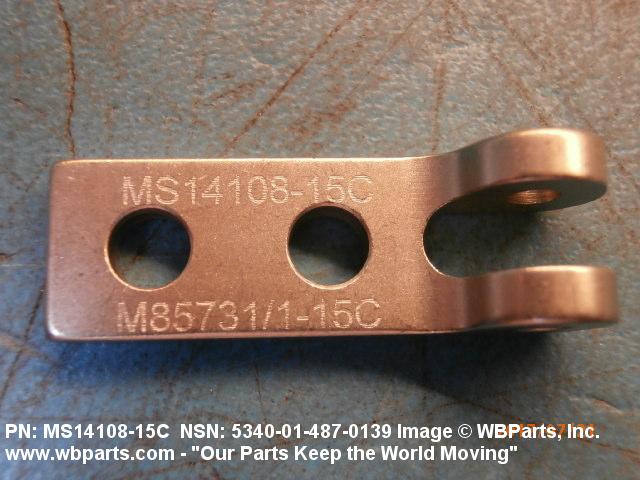

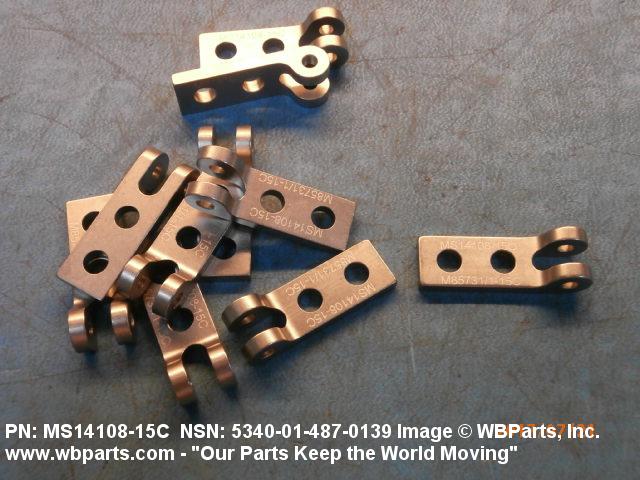

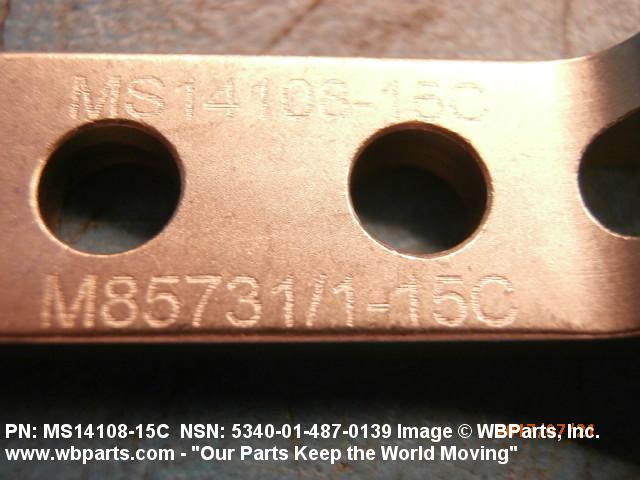

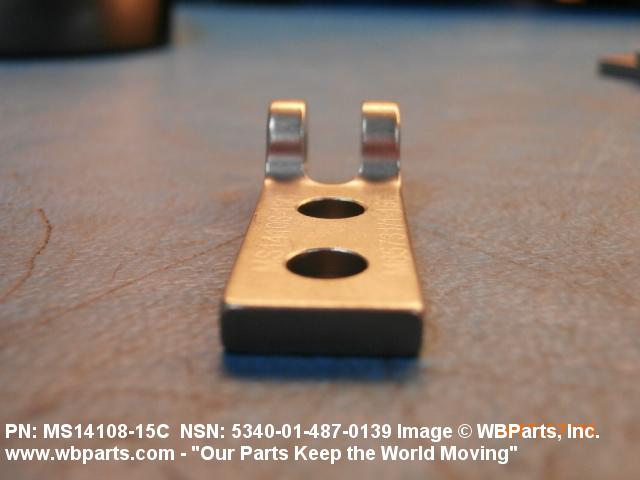

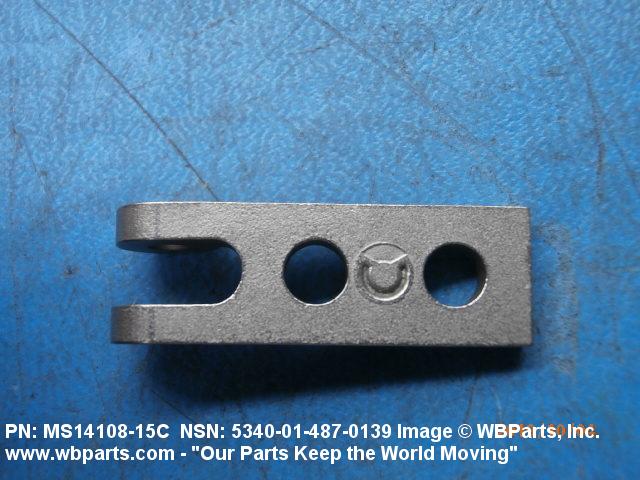

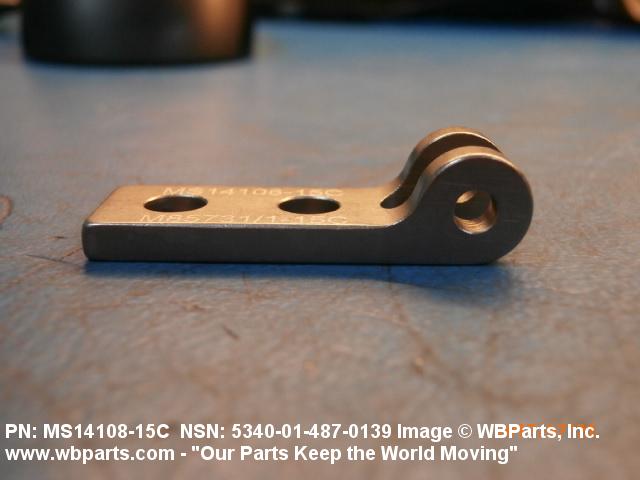

Drawings & Photos | NSN 5340-01-487-0139
Demand History | NSN 5340-01-487-0139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1410815C | 2022-03-75 | 22 | Israel |
| 5340-01-487-0139 | 2021-08-242 | 20 | IN |
| 5340-01-487-0139 | 2021-03-82 | 300 | TH |
| 5340-01-487-0139 | 2021-03-81 | 300 | Thailand |
| 5340-01-487-0139 | 2020-11-310 | 160 | DIBBS |
| 5340-01-487-0139 | 2019-12-363 | 384 | DIBBS |
| 5340-01-487-0139 | 2019-08-239 | 200 | DIBBS |
| 5340-01-487-0139 | 2019-07-197 | 30 | United States |
| 5340-01-487-0139 | 2019-06-153 | 100 | DIBBS |
| 5340-01-487-0139 | 2019-05-143 | 2 | DIBBS |
| 5340-01-487-0139 | 2019-01-31 | 2 | DIBBS |
| 5340-01-487-0139 | 2018-08-239 | 50 | DIBBS |
| 5340-01-487-0139 | 2018-05-137 | 2 | United States |
| 5340-01-487-0139 | 2018-03-78 | 50 | DIBBS |
| MS1410815C | 2017-07-200 | 10 | United States |
| 5340-01-487-0139 | 2017-07-192 | 2 | DIBBS |
| 5340-01-487-0139 | 2017-07-191 | 2 | United States |
| 014870139 | 2012-12-339 | 12 | United States |
| 5340-01-487-0139 | 2012-09-261 | 5 | United States |
| MS1410815C | 2012-08-234 | 20 | United States |
| 5340-01-487-0139 | 2011-03-74 | 50 | Israel |
| MS1410815C | 2010-11-305 | 6 | United States |
| MS1410815C | 2010-04-96 | 6 | United States |
| MS1410815C | 2009-12-348 | 2 | Israel |
| MS1410815C | 2009-06-176 | 25 | AT |
| MS1410815C | 2009-06-176 | 25 | AT |
| MS1410815C | 2009-05-139 | 14 | Israel |
| MS1410815C | 2008-11-309 | 500 | US |
Cross Reference | NSN 5340-01-487-0139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14108-15C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-487-0139
Related Products | NSN 5340-01-487-0139
Technical Data | NSN 5340-01-487-0139
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL STRAP |
| SURFACE TREATMENT AND LOCATION | PASSIVATED OVERALL |
| STYLE DESIGNATOR | 57F STRAP |

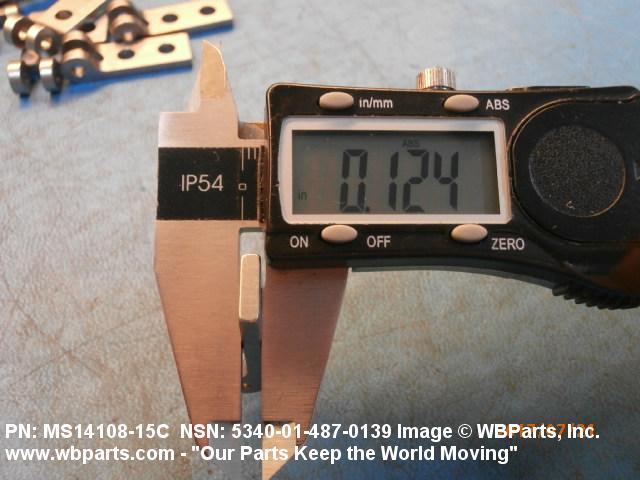

| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |

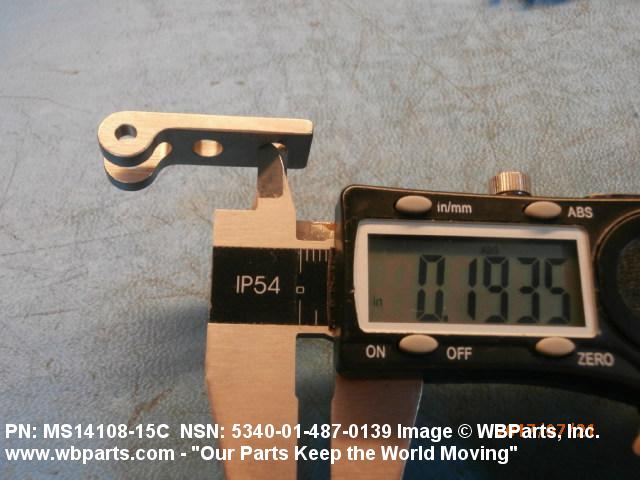

| MOUNTING HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |

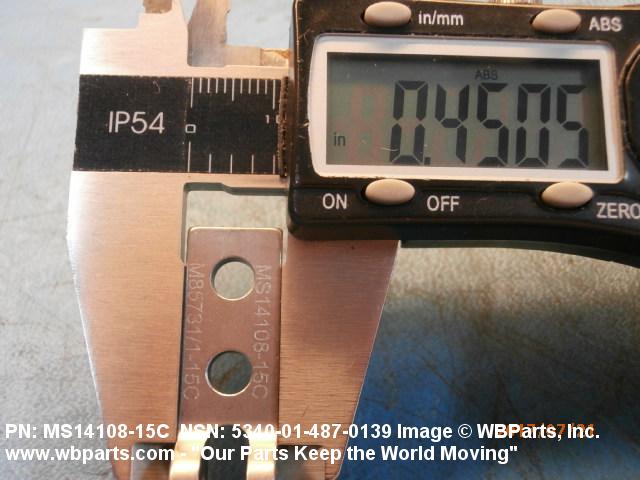

| BODY WIDTH | 0.450 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 1.186 INCHES NOMINAL |
| REVERSIBLE FEATURE | NOT INCLUDED |
| HINGE PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 2 |
| MOUNTING HOLE QUANTITY | 2 |
| PERFORMANCE TYPE | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14108-15C |
Restrictions/Controls & Freight Information | NSN 5340-01-487-0139
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
