NSN 5340-01-335-6698 M85731/1-16, M85731116, MIL-F-85731/1
Product Details | STRAP HINGE LEAF

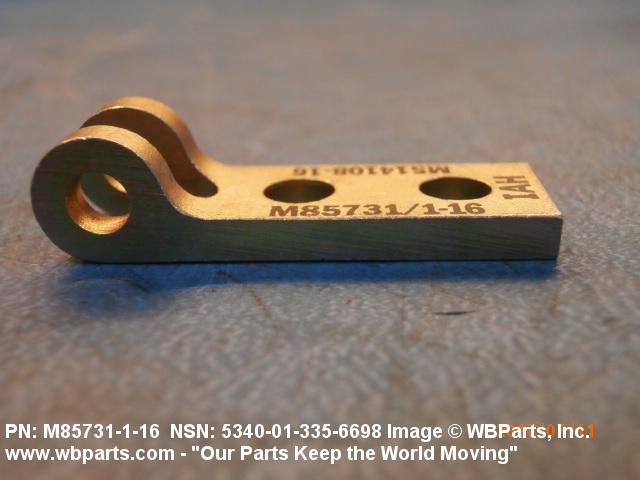

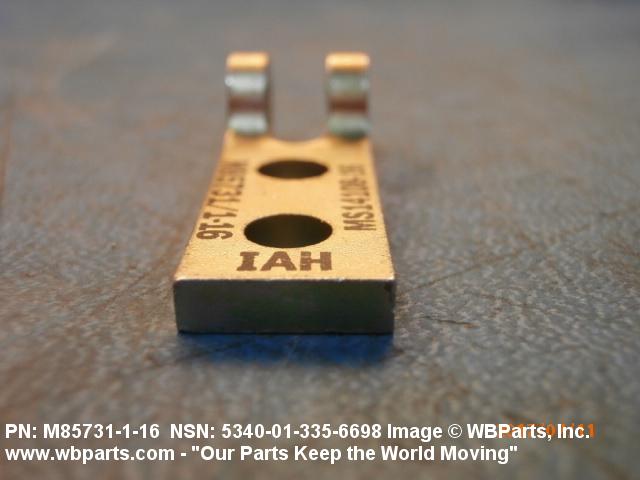

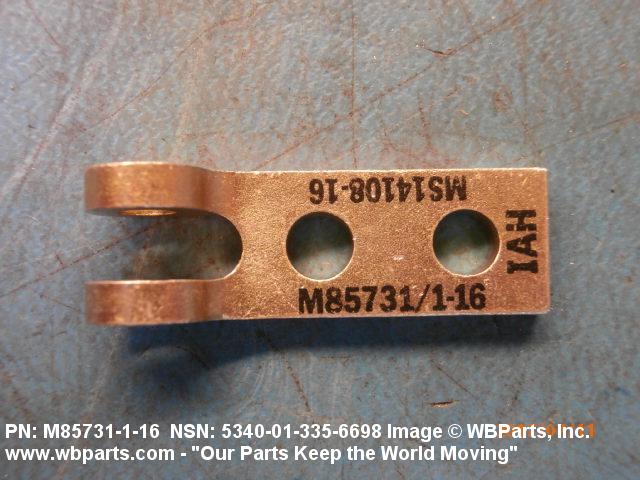

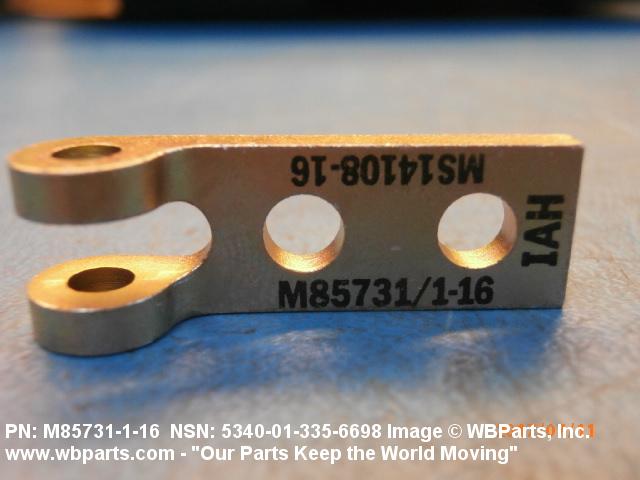

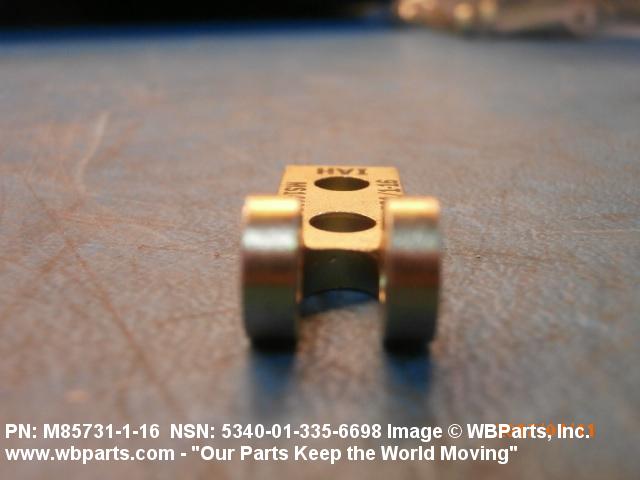

5340-01-335-6698 An item consisting of one half only of HINGE, STRAP, with or without a pin.
Part Alternates: M85731/1-16, M85731116, MIL-F-85731/1, MILF857311, 5340-01-335-6698, 01-335-6698, 5340013356698, 013356698
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1991 | 01-335-6698 | 38515 ( LEAF, STRAP HINGE ) |
Drawings & Photos | NSN 5340-01-335-6698
Demand History | NSN 5340-01-335-6698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILF857311 | 2024-07-205 | 42 | FX |
| 5340-01-335-6698 | 2023-11-320 | 4 | Turkey |
| MILF857311 | 2022-02-54 | 66 | Thailand |
| 5340-01-335-6698 | 2020-12-345 | 4 | US |
| 5340-01-335-6698 | 2018-02-43 | 2 | US |
| M85731116 | 2017-10-293 | 8 | United States |
| M85731116 | 2017-06-177 | 30 | United States |
| 5340-01-335-6698 | 2017-05-124 | 27 | DIBBS |
| 5340-01-335-6698 | 2017-03-78 | 3 | DIBBS |
| 5340-01-335-6698 | 2011-12-342 | 6 | DIBBS |
| 5340-01-335-6698 | 2010-11-309 | 3 | DIBBS |
| 5340-01-335-6698 | 2010-05-123 | 17 | DIBBS |
| 5340-01-335-6698 | 2008-03-64 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-335-6698
Related Products | NSN 5340-01-335-6698
Technical Data | NSN 5340-01-335-6698
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, MIL-S-5626 OVERALL OR STEEL,MIL-S-22141,COMP 4140 OVERALL |
| SURFACE TREATMENT AND LOCATION | CADMIUM, QQ-P-416, TYPE 2, CLASS 2 OVERALL |
| STYLE DESIGNATOR | 57F STRAP |

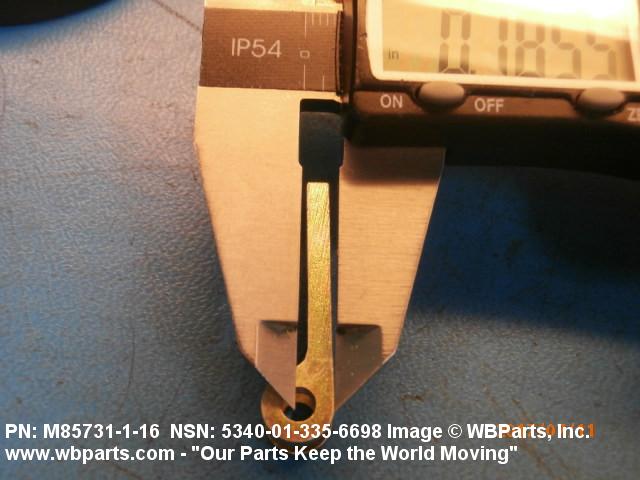

| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
