NSN 5340-01-330-2525 HD13021101, HD13021-101, 09A1551
Product Details | STRAP HINGE LEAF
5340-01-330-2525 An item consisting of one half only of HINGE, STRAP, with or without a pin.
Part Alternates: HD13021101, HD13021-101, 09A1551, 09A155-1 , 47201, 4720-1, 5340-01-330-2525, 01-330-2525, 5340013302525, 013302525
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 1990 | 01-330-2525 | 38515 ( LEAF, STRAP HINGE ) |

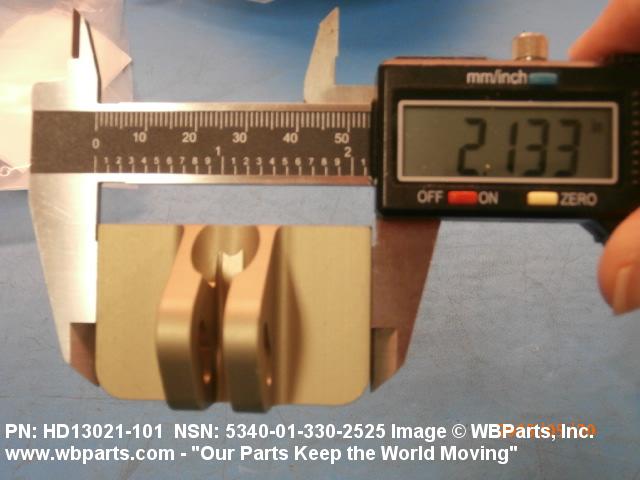

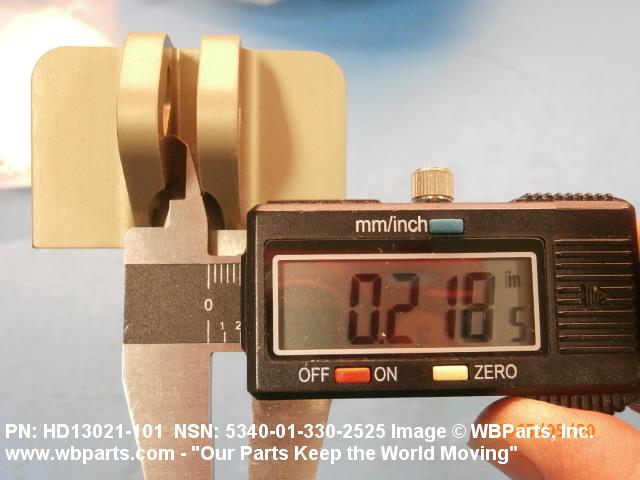

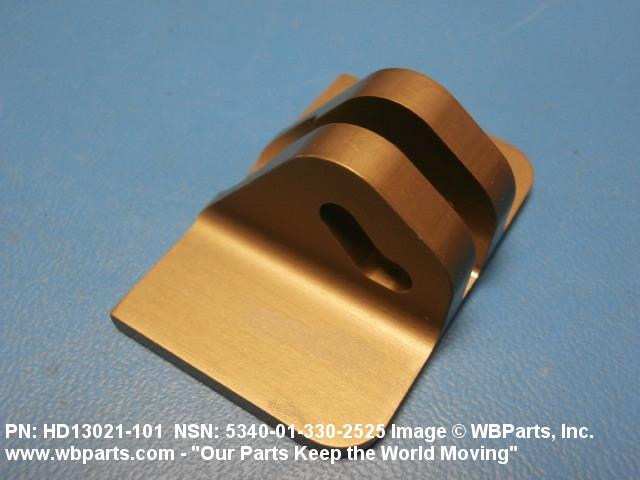

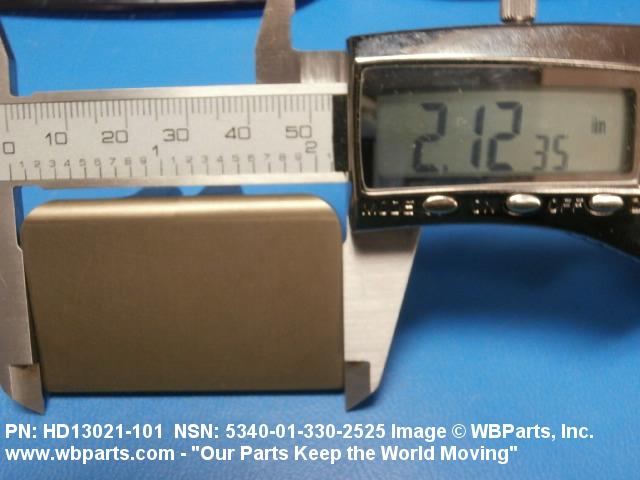

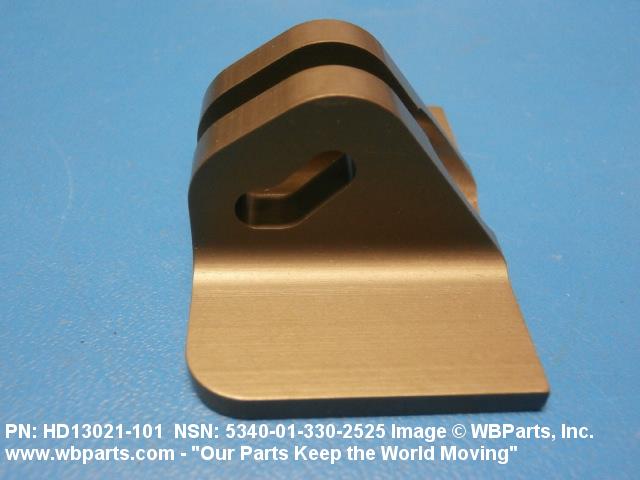

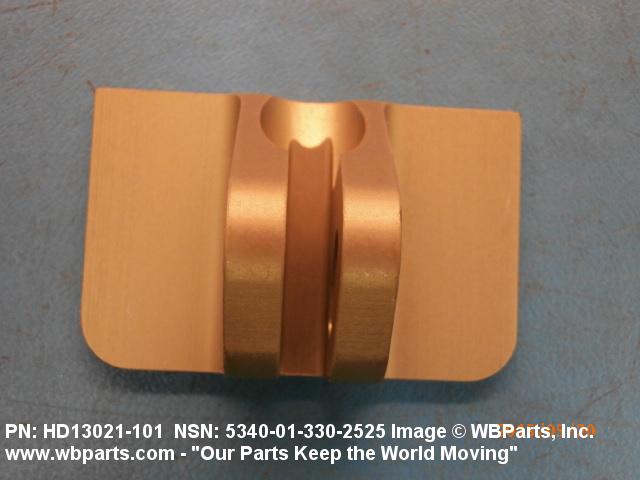

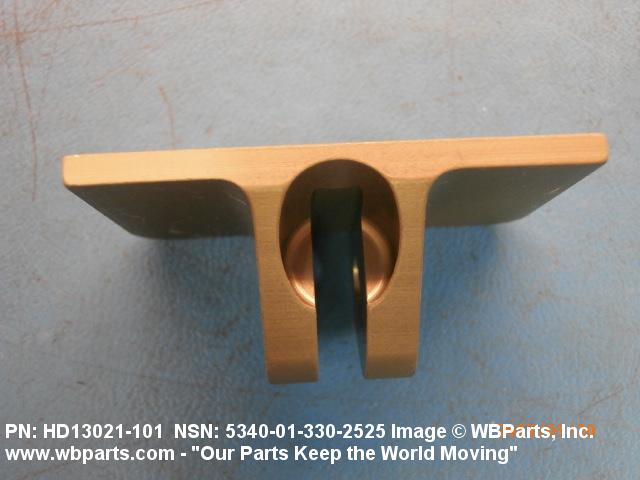

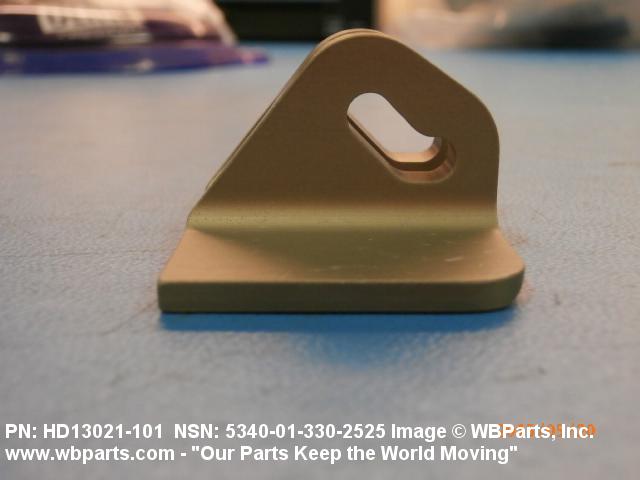

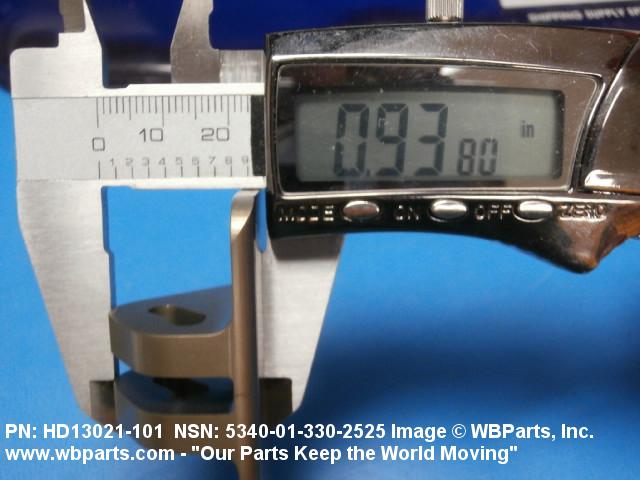

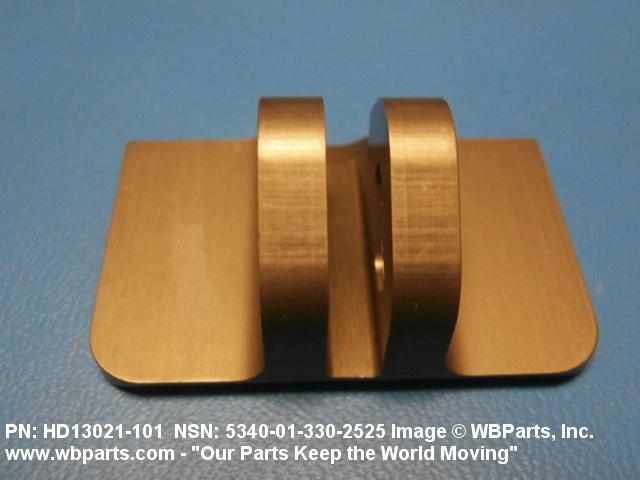

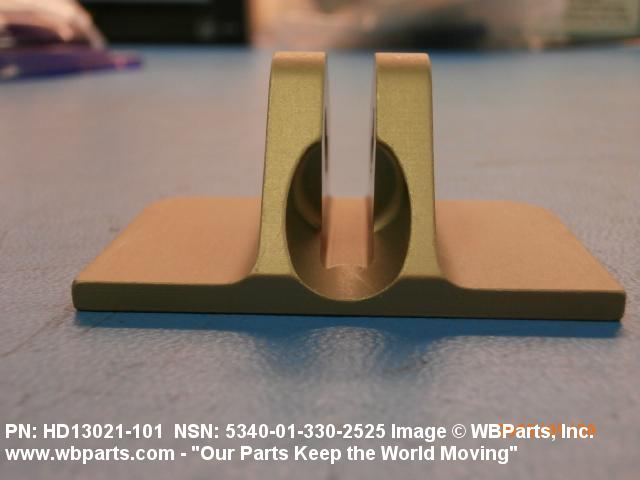

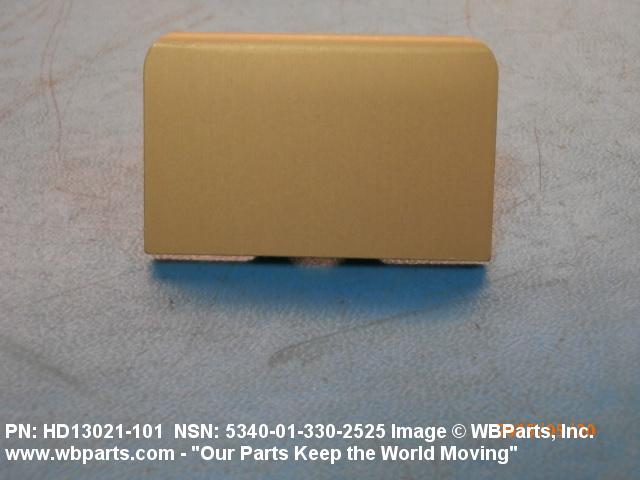

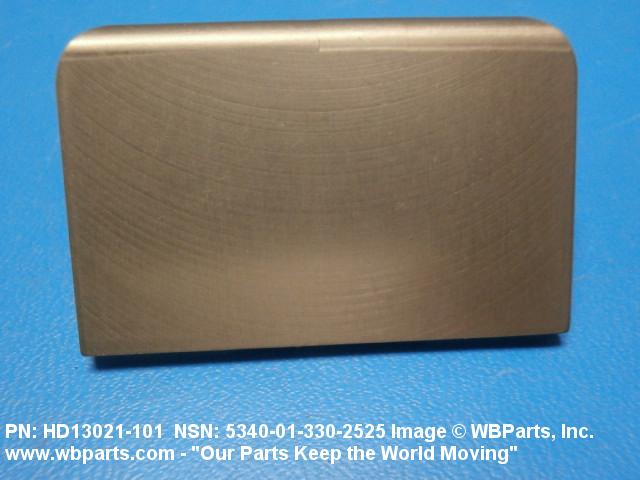

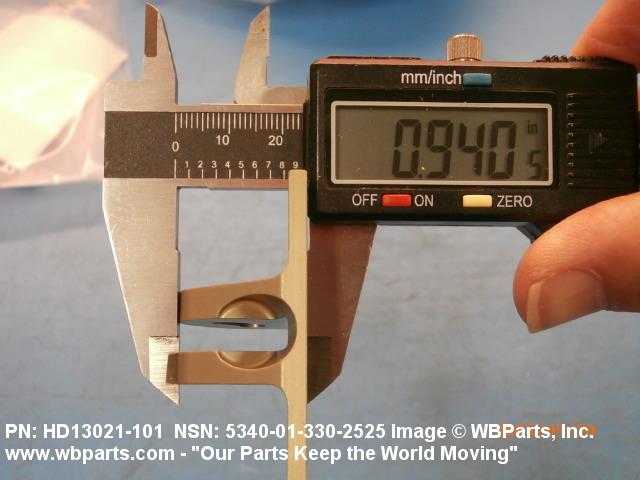

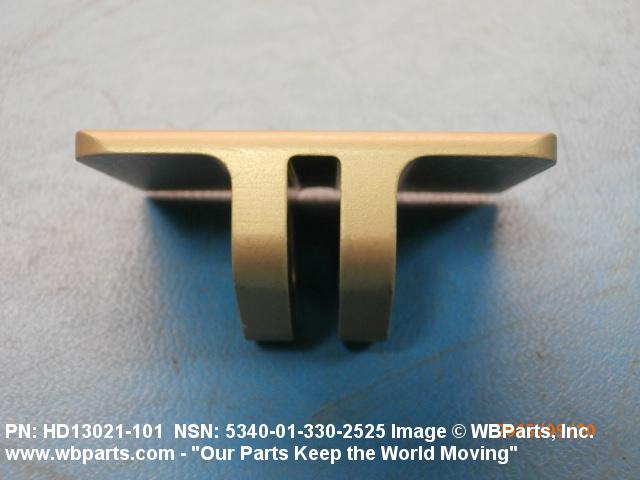

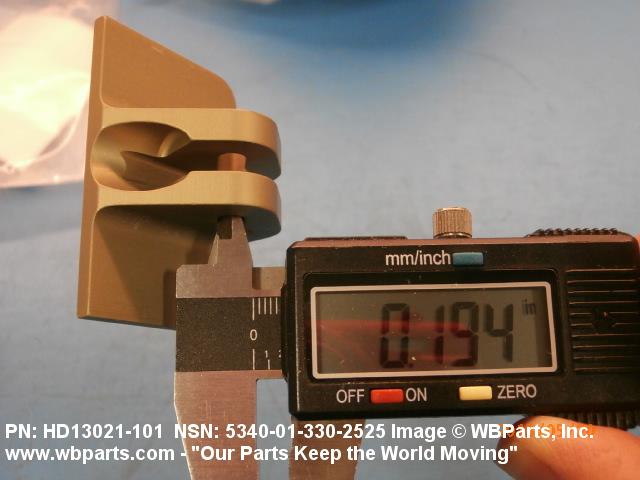

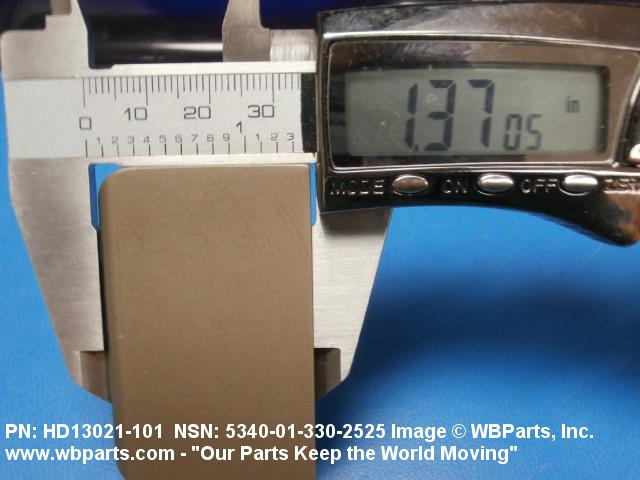

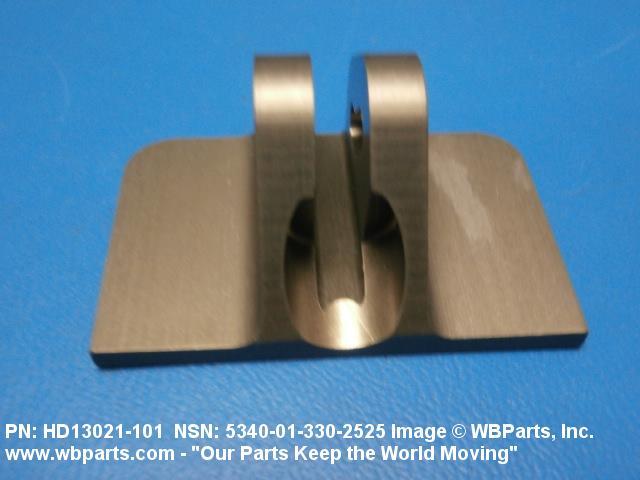

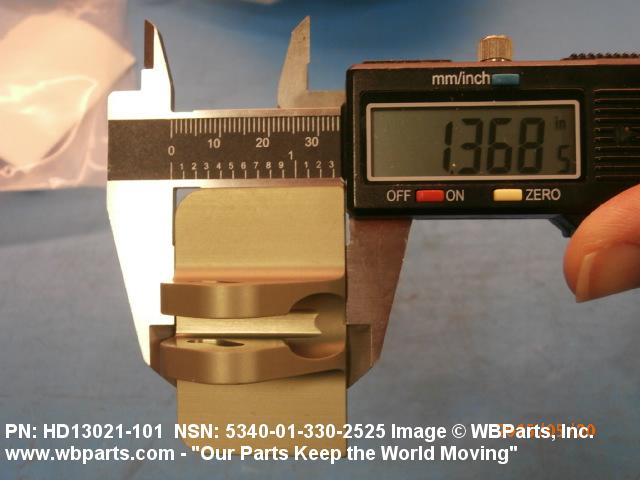

Drawings & Photos | NSN 5340-01-330-2525
Demand History | NSN 5340-01-330-2525
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-1 | 2024-12-344 | 9 | DIBBS |
| HD13021-101 | 2024-12-344 | 9 | DIBBS |
| HD13021101 | 2024-10-295 | 40 | CN |
| 5340-01-330-2525 | 2024-10-290 | 40 | US |
| 4720-1 | 2024-10-289 | 40 | DIBBS |
| HD13021-101 | 2024-10-289 | 40 | DIBBS |
| 4720-1 | 2024-08-235 | 9 | DIBBS |
| HD13021-101 | 2024-08-235 | 9 | DIBBS |
| 5340-01-330-2525 | 2024-06-159 | 40 | US |
| 4720-1 | 2024-06-158 | 40 | DIBBS |
| HD13021-101 | 2024-06-158 | 40 | DIBBS |
| 4720-1 | 2024-05-123 | 9 | DIBBS |
| HD13021-101 | 2024-05-123 | 9 | DIBBS |
| 4720-1 | 2024-01-18 | 40 | DIBBS |
| HD13021-101 | 2024-01-18 | 40 | DIBBS |
| 4720-1 | 2023-12-353 | 2 | DIBBS |
| HD13021-101 | 2023-12-353 | 2 | DIBBS |
| 4720-1 | 2023-12-340 | 10 | DIBBS |
| 4720-1 | 2023-12-340 | 12 | DIBBS |
| HD13021-101 | 2023-12-340 | 10 | DIBBS |
| HD13021-101 | 2023-12-340 | 12 | DIBBS |
| 5340-01-330-2525 | 2016-10-293 | 2 | United States |
| HD13021101 | 2015-11-308 | 20 | United States |
| HD13021101 | 2015-09-266 | 20 | US |
| 09A1551 | 2015-04-96 | 12 | United States |
| HD13021101 | 2015-04-96 | 12 | United States |
| HD13021101 | 2014-01-21 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-330-2525
Related Products | NSN 5340-01-330-2525
Technical Data | NSN 5340-01-330-2525
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625 OVERALL |

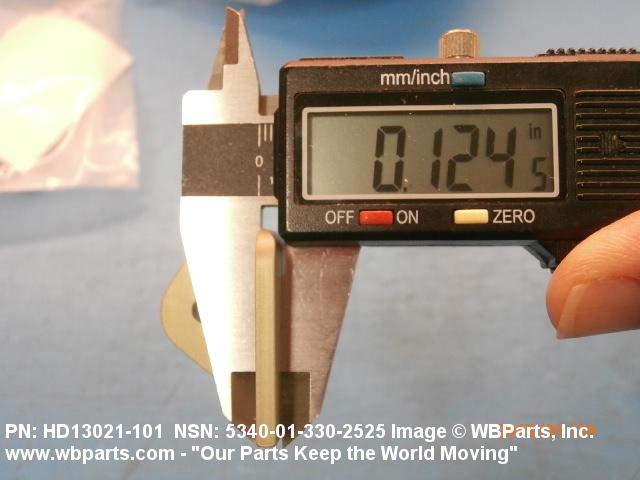

| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| BODY WIDTH | 1.364 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 2.150 INCHES NOMINAL |
| HINGE PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 2 |
| PERFORMANCE TYPE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5340-01-330-2525
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095290 | HINGES/BUTTS NOI METAL O/T I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-330-2525
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
