NSN 5340-01-424-0756 46311, 4-6311, 01-424-0756
Product Details | SPRING TENSION CLIP
5340-01-424-0756 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 46311, 4-6311, 5340-01-424-0756, 01-424-0756, 5340014240756, 014240756
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JAN 1996 | 01-424-0756 | 20815 ( CLIP, SPRING TENSION ) |
Drawings & Photos | NSN 5340-01-424-0756
Demand History | NSN 5340-01-424-0756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 46311 | 2011-08-235 | 5 | |
| 46311 | 2010-08-230 | 3 | United States |
Cross Reference | NSN 5340-01-424-0756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-6311 | 14545 | CONTROL TECHNOLOGY CO INC DBA C T C |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-424-0756
Technical Data | NSN 5340-01-424-0756
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

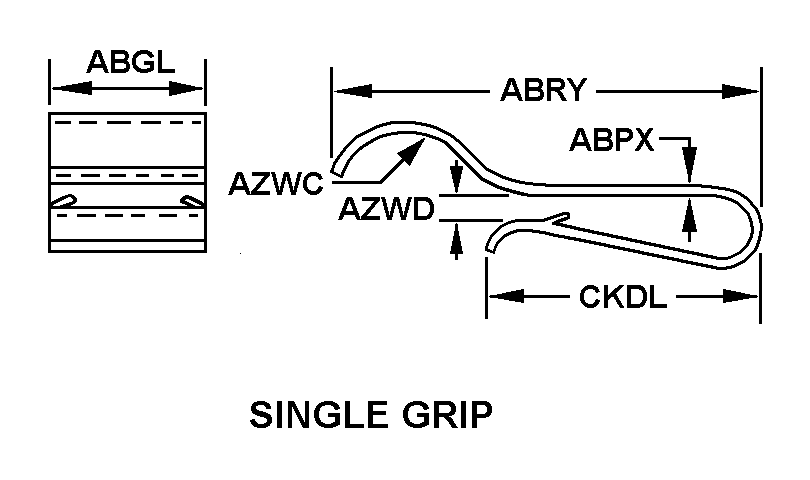

| STYLE DESIGNATOR | C1 SINGLE GRIP |
| WIDTH | 1.250 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.059 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | USED ON REMOTE SWITCH BOX MODEL CS-392-2 DWG NO 8664027 |
Restrictions/Controls & Freight Information | NSN 5340-01-424-0756
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
