Product Details | MANUAL CONTROL HANDLE

5340-01-408-8589 A rigid item with a plain or serrated gripping surface, designed to be grasped with the hand(s) for the purpose of manually transmitting rotary or linear motion to other devices, and/or holding and guiding an item in a desired position during operation. It may be fixed or rotating and furnished with mounting attachments, such as pin, stud, bolt, or the like. It may also be adjusted to a hand crank arm, a handwheel, or the like. Excludes KNOB; CRANK, HAND; and LEVER, MANUAL CONTROL. See also HANDLE (as modified). Do not use if a more specific name applies.20210050018Guns, through 30mm53400020Hardware, Commercial

Part Alternates: 30086611, 3008661-1, 5340-01-408-8589, 01-408-8589, 5340014088589, 014088589

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 28 FEB 1995 01-408-8589

Drawings & Photos | NSN 5340-01-408-8589


Cross Reference | NSN 5340-01-408-8589

Part Number Cage Code Manufacturer
3008661-1 30881 RAYTHEON COMPANY DBA RAYTHEON
3008661-1 96214 RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-408-8589

Technical Data | NSN 5340-01-408-8589

Characteristic Specifications
MATERIAL STEEL COMP 303 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763 COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-F-14072 E300 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

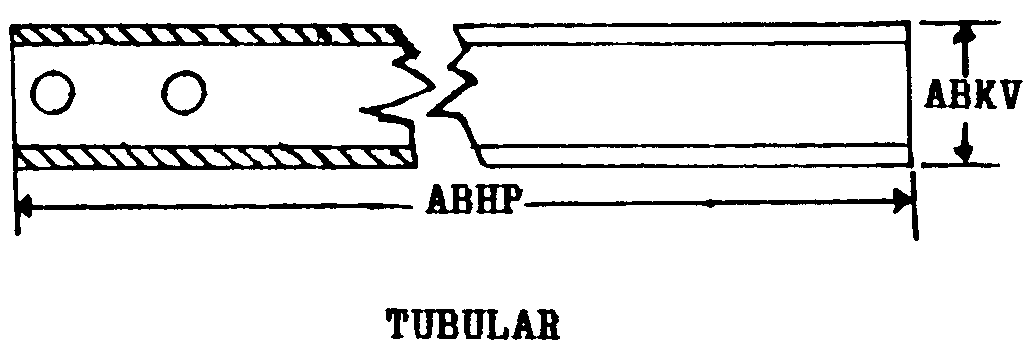

STYLE DESIGNATOR Q1 TUBULAR
OVERALL LENGTH 2.380 INCHES NOMINAL
OUTSIDE DIAMETER 0.250 INCHES NOMINAL
MOUNTING METHOD THREADED SHAFT
MOUNTING FACILITY QUANTITY 1
MOUNTING FACILITY DIAMETER 0.250 INCHES NOMINAL
MOUNTING FACILITY LENGTH 0.560 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND
III END ITEM IDENTIFICATION STINGER MISSILE NIGHT SIGHT
