NSN 5340-01-039-8594 10941005, 12257492, 12257494

Product Details | MANUAL CONTROL HANDLE

5340-01-039-8594 A rigid item with a plain or serrated gripping surface, designed to be grasped with the hand(s) for the purpose of manually transmitting rotary or linear motion to other devices, and/or holding and guiding an item in a desired position during operation. It may be fixed or rotating and furnished with mounting attachments, such as pin, stud, bolt, or the like. It may also be adjusted to a hand crank arm, a handwheel, or the like. Excludes KNOB; CRANK, HAND; and LEVER, MANUAL CONTROL. See also HANDLE (as modified). Do not use if a more specific name applies.20210050018Guns, through 30mm53400020Hardware, Commercial

Part Alternates: 10941005, 12257492, 12257494, 12257496, 5340-01-039-8594, 01-039-8594, 5340010398594 , 010398594

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 APR 1977	01-039-8594	32333 ( HANDLE, MANUAL CONTROL )

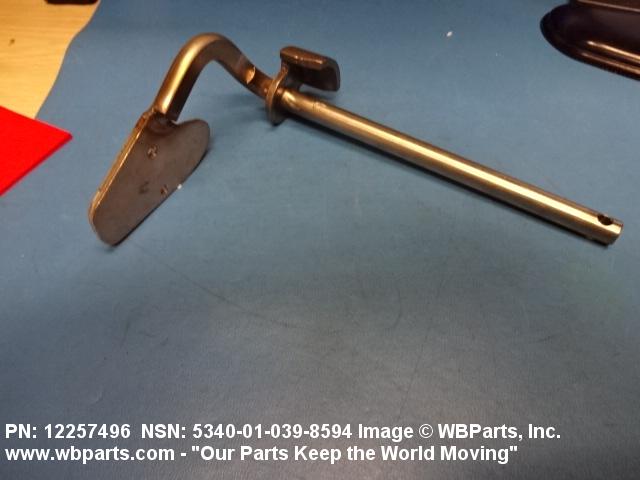

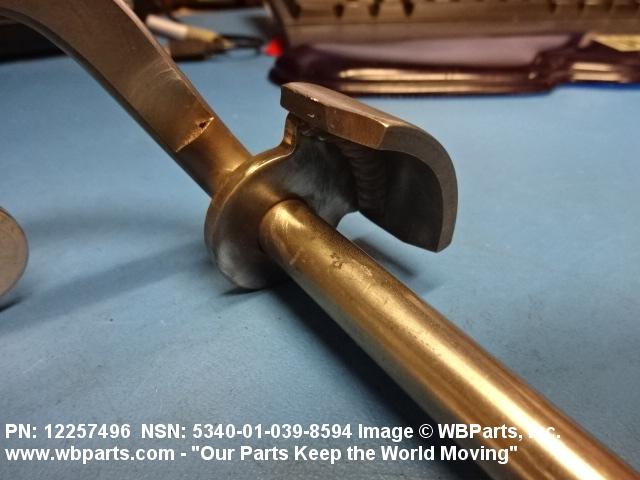

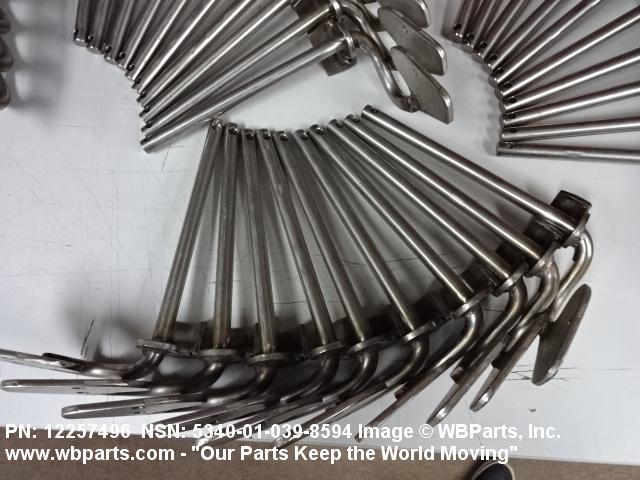

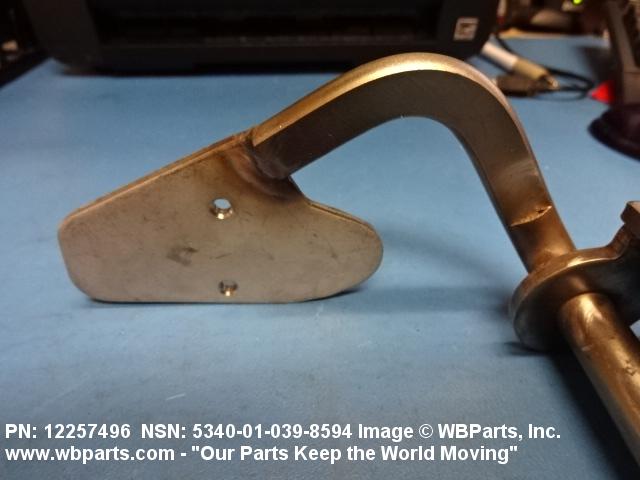

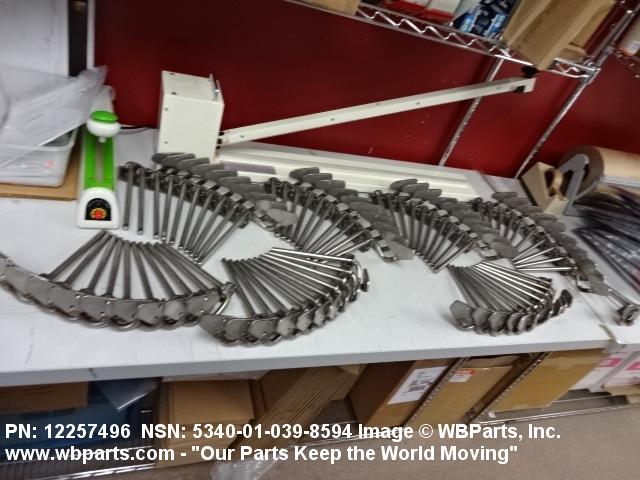

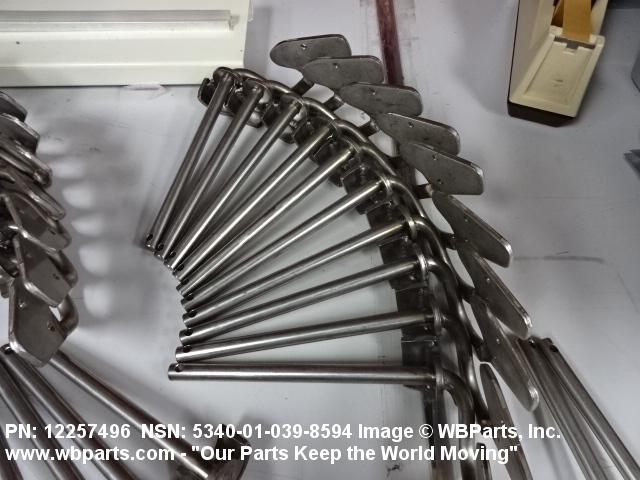

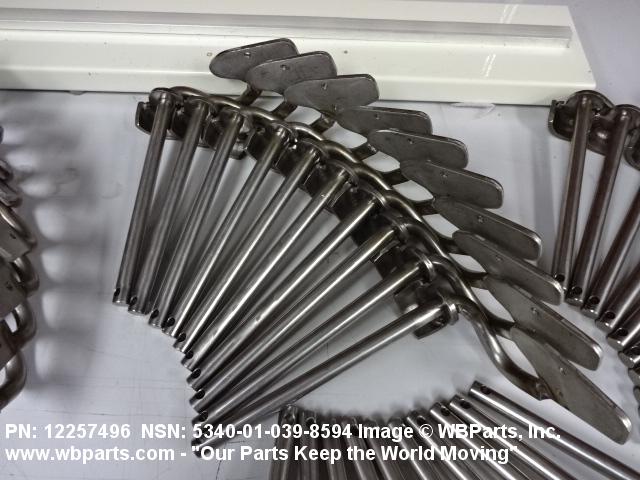

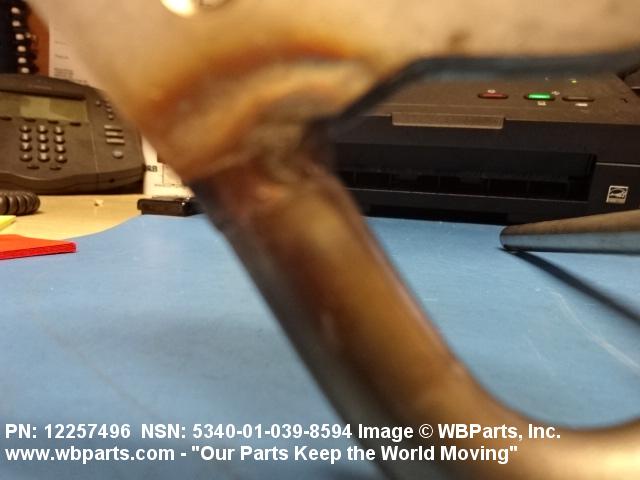

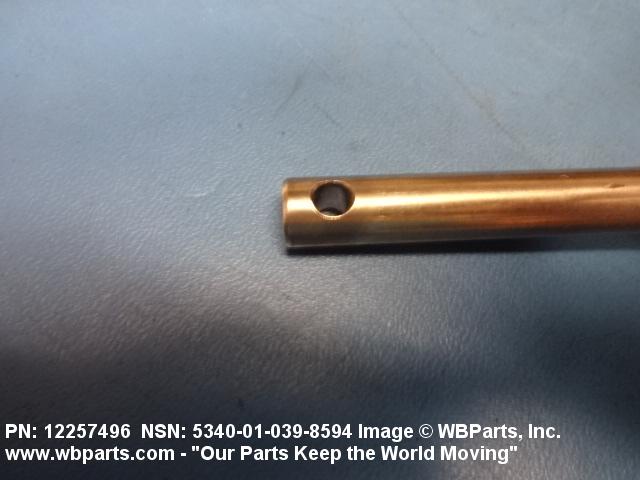

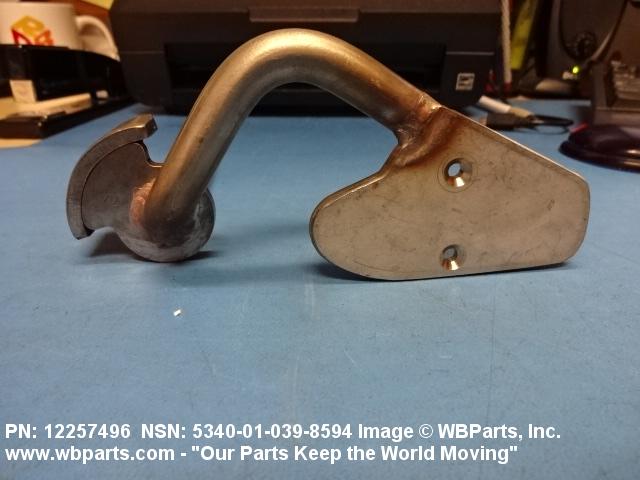

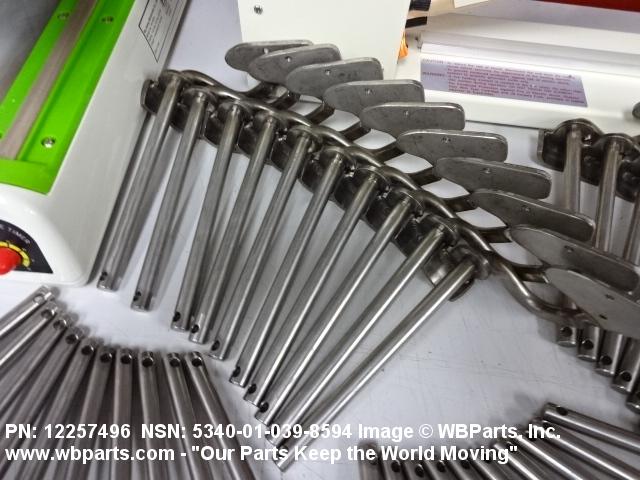

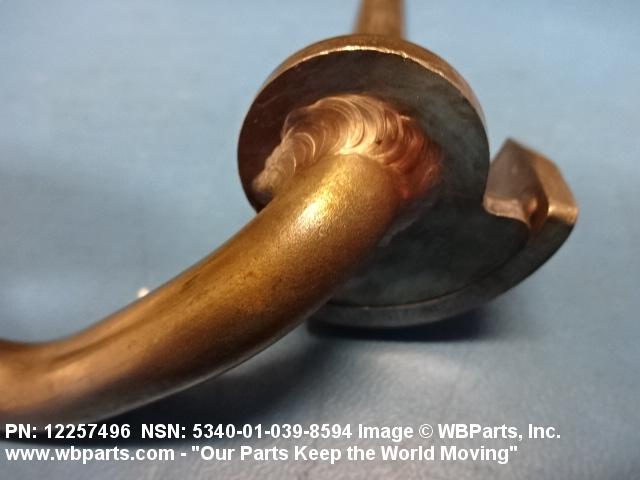

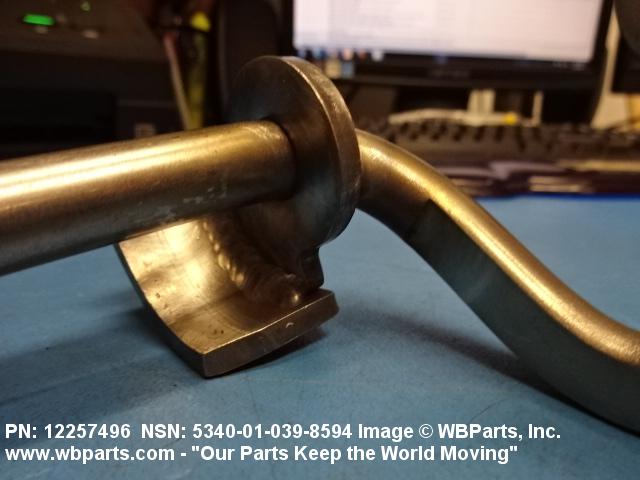

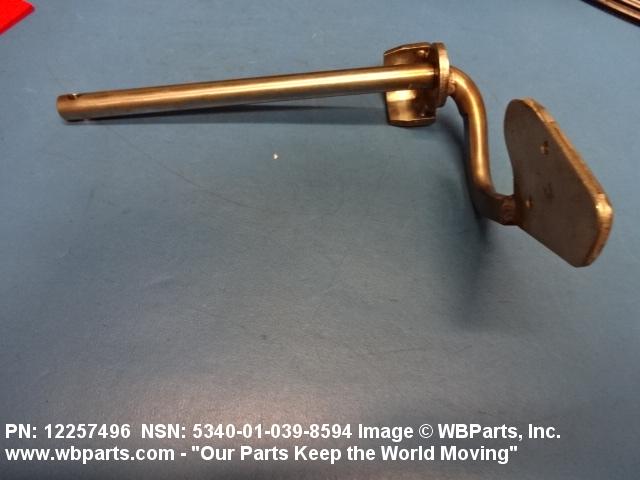

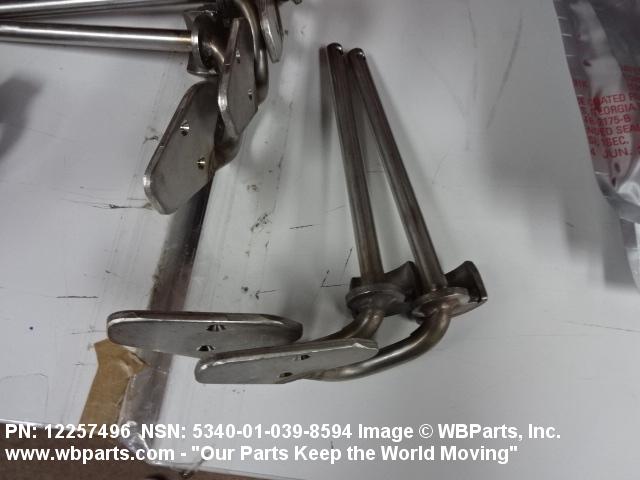

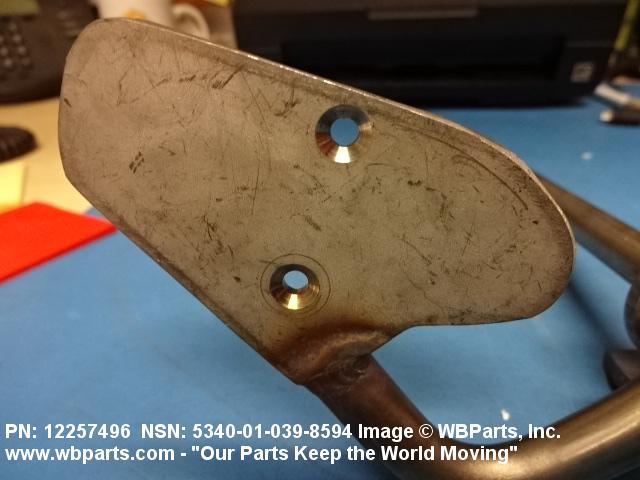

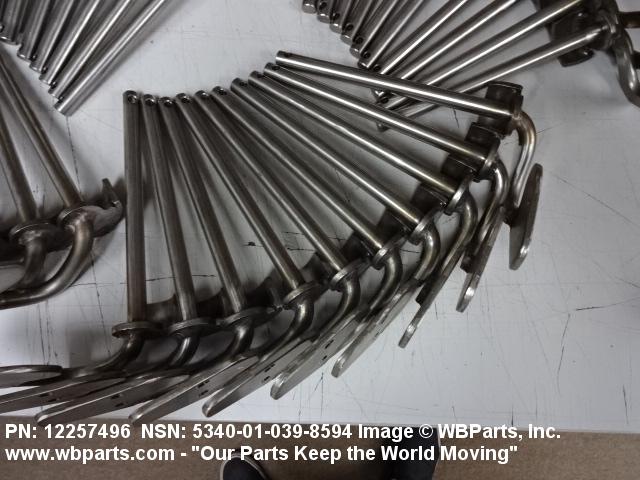

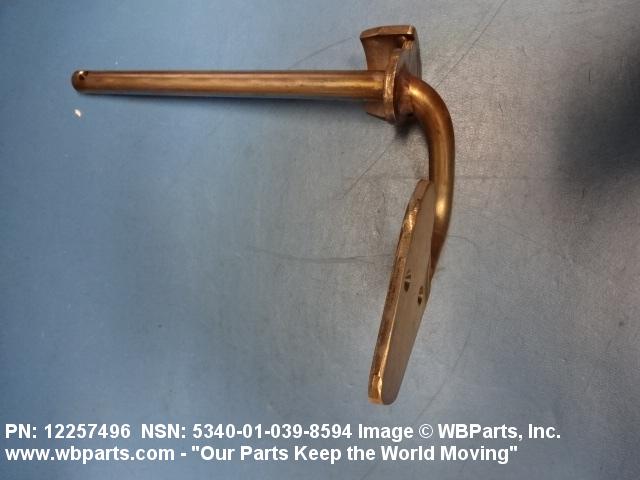

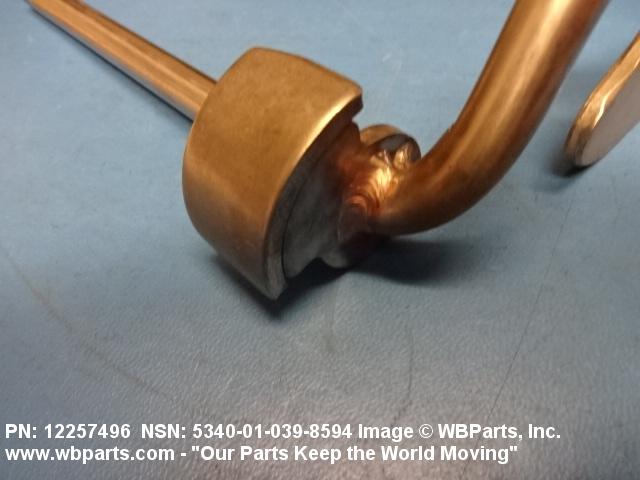

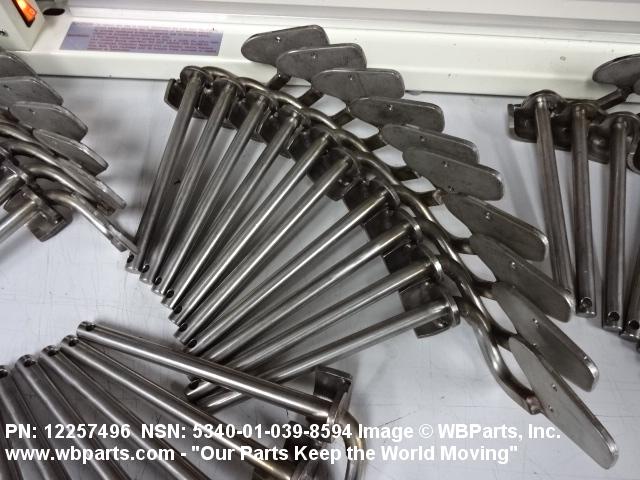

Drawings & Photos | NSN 5340-01-039-8594

Part Number	Request Date	QTY	Origin
5340-01-039-8594	2020-08-227	5	United States
5340-01-039-8594	2020-02-59	130	DIBBS
5340-01-039-8594	2020-02-49	130	DIBBS
5340-01-039-8594	2019-09-268	136	DIBBS
5340-01-039-8594	2019-09-260	136	DIBBS
5340-01-039-8594	2019-08-216	136	DIBBS
5340-01-039-8594	2019-07-205	136	DIBBS
5340-01-039-8594	2018-11-331	136	DIBBS
5340-01-039-8594	2018-10-303	215	DIBBS
5340-01-039-8594	2018-10-295	215	DIBBS
5340-01-039-8594	2018-10-284	215	DIBBS
5340-01-039-8594	2018-10-276	215	DIBBS
5340-01-039-8594	2018-08-225	34	DIBBS
5340-01-039-8594	2018-04-107	12	DIBBS
5340-01-039-8594	2018-04-99	12	DIBBS
5340-01-039-8594	2018-01-30	74	United States
5340-01-039-8594	2017-12-338	110	DIBBS
5340-01-039-8594	2008-03-87	1338	DIBBS

Cross Reference | NSN 5340-01-039-8594

Part Number	Cage Code	Manufacturer
10941005	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12257492	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12257494	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12257496	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
5340010398594	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-039-8594

Compare

Related Products | NSN 5340-01-039-8594

5340-01-039-8734, 5340-01-039-8867, 5340-01-039-8874, 5340-01-039-8875, 5340-01-039-8880

Technical Data | NSN 5340-01-039-8594

Characteristic	Specifications
SPECIAL FEATURES	STEEL,1015 TO 1025,COLD FINISHED,ASTM-A108,11.240 IN.LG,0.500 IN.DIA,RIGHT HAND;
MANUFACTURERS CODE	19207
DESIGN CONTROL REFERENCE	12257496

Restrictions/Controls & Freight Information | NSN 5340-01-039-8594

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095142	HARDWARE HANDLES,IRON/STEEL
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	AZ	U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-039-8594

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
