NSN 5340-01-437-2623 1056, 105-6, 3075AS2751
Product Details | MANUAL CONTROL HANDLE
5340-01-437-2623 A rigid item with a plain or serrated gripping surface, designed to be grasped with the hand(s) for the purpose of manually transmitting rotary or linear motion to other devices, and/or holding and guiding an item in a desired position during operation. It may be fixed or rotating and furnished with mounting attachments, such as pin, stud, bolt, or the like. It may also be adjusted to a hand crank arm, a handwheel, or the like. Excludes KNOB; CRANK, HAND; and LEVER, MANUAL CONTROL. See also HANDLE (as modified). Do not use if a more specific name applies.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 1056, 105-6, 3075AS2751, 3075AS275-1, 31151ZN, 311-51-ZN , 3116, 311-6, 5340-01-437-2623, 01-437-2623, 5340014372623, 014372623
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 OCT 1996 | 01-437-2623 | 32333 ( HANDLE, MANUAL CONTROL ) |

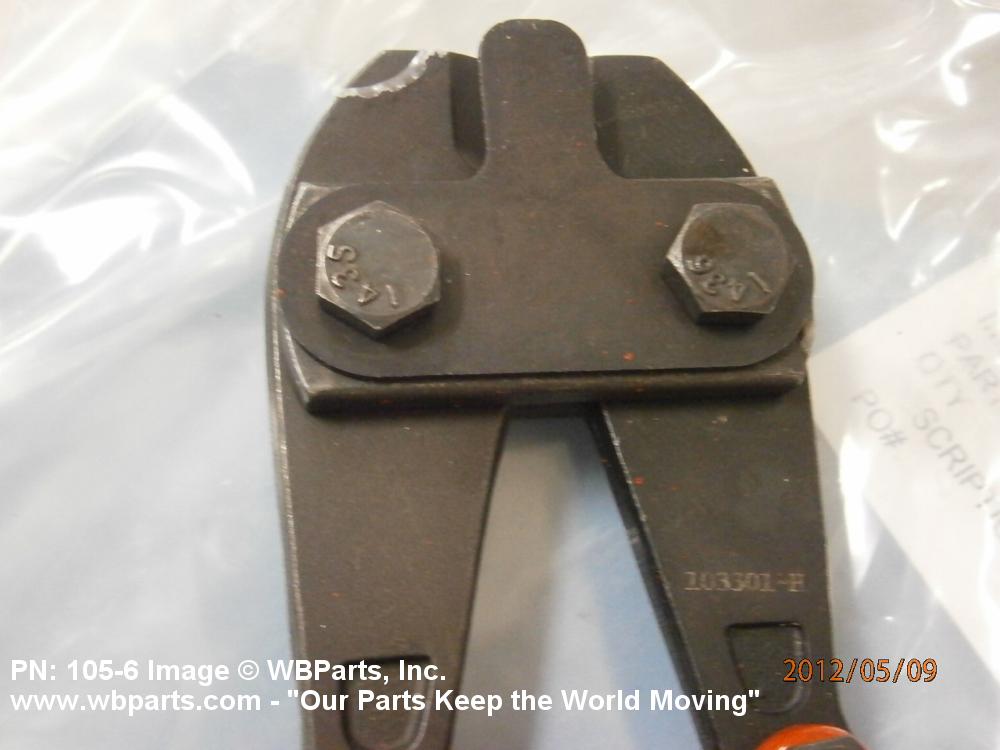

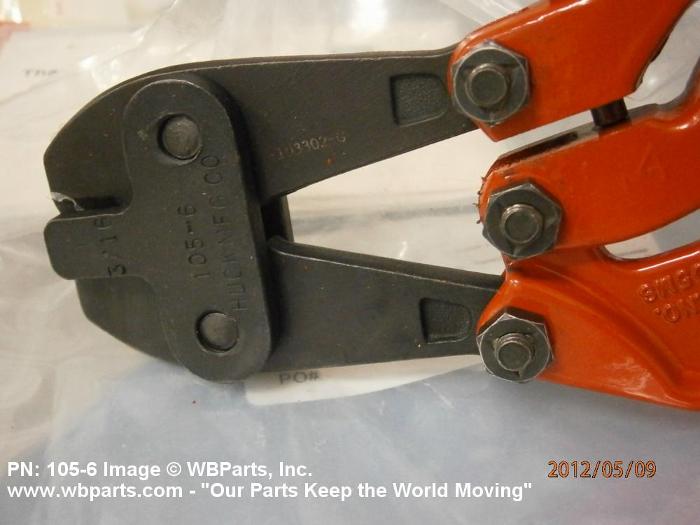

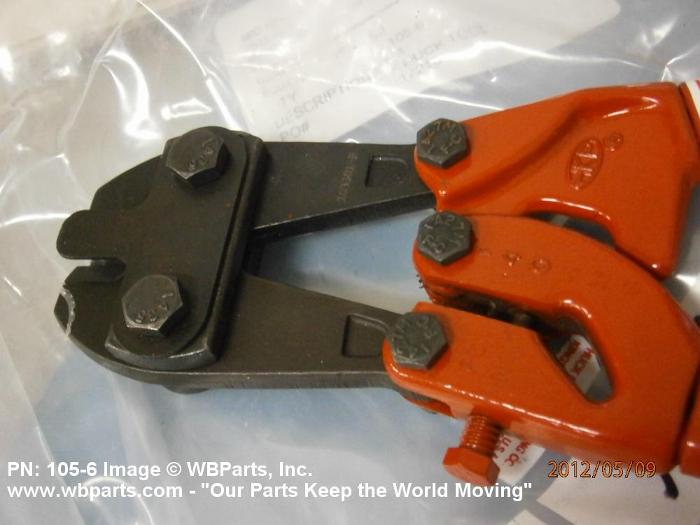

Drawings & Photos | NSN 5340-01-437-2623
Demand History | NSN 5340-01-437-2623
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-437-2623 | 2017-11-333 | 29 | DIBBS |
| 1056 | 2013-02-35 | 8 | US |
| 5340-01-437-2623 | 2012-02-58 | 30 | DIBBS |
| 1056 | 2011-05-132 | 1 | United States |
| 1056 | 2009-09-260 | 20 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-437-2623
Technical Data | NSN 5340-01-437-2623
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1040 HANDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 1040 ASSN STD SINGLE MATERIAL RESPONSE HANDLE |
| SURFACE TREATMENT | ZINC HANDLE |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY DIAMETER | 0.392 INCHES MINIMUM AND 0.396 INCHES MAXIMUM |
| MOUNTING FACILITY LENGTH | 9.650 INCHES NOMINAL |
| MOUNTING FACILITY WIDTH | 1.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-437-2623
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-437-2623
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
