Product Details | SPACING THREADED STANDOFF
5340-01-284-8497 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 1162772, 116277-2, 5340-01-284-8497, 01-284-8497, 5340012848497, 012848497
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 SEP 1988 | 01-284-8497 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-01-284-8497
Demand History | NSN 5340-01-284-8497
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 116277-2 | 2021-08-235 | 1 | DIBBS |
| 116277-2 | 2021-08-223 | 1 | DIBBS |
| 116277-2 | 2021-08-221 | 1 | DIBBS |
| 116277-2 | 2021-08-213 | 1 | DIBBS |
| 116277-2 | 2021-05-132 | 1 | DIBBS |
| 116277-2 | 2021-03-82 | 1 | DIBBS |
| 5340-01-284-8497 | 2015-04-104 | 4 | DIBBS |
| 5340-01-284-8497 | 2015-04-91 | 4 | DIBBS |
| 5340-01-284-8497 | 2013-02-48 | 10 | DIBBS |
| 5340-01-284-8497 | 2012-02-55 | 1 | DIBBS |
| 5340-01-284-8497 | 2011-06-161 | 7 | DIBBS |
| 5340-01-284-8497 | 2008-08-232 | 1 | DIBBS |
Cross Reference | NSN 5340-01-284-8497
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 116277-2 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-284-8497
Related Products | NSN 5340-01-284-8497
Technical Data | NSN 5340-01-284-8497
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 0.312 INCHES NOMINAL |

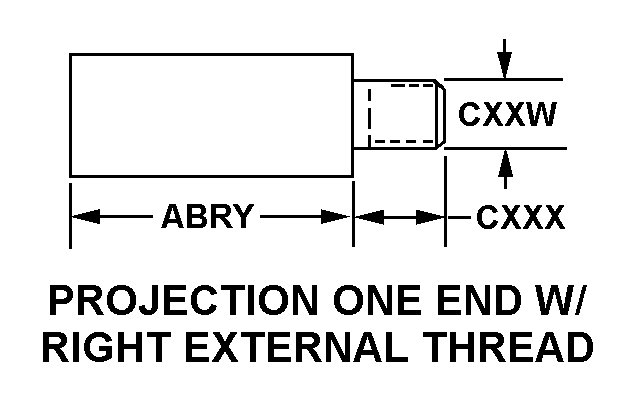

| STYLE DESIGNATOR | 1 PROJECTION ONE END WITH RIGHT EXTERNAL THREAD |
