NSN 5340-01-284-8535 AQAP118312271, AQAP11831227-1, 11831086
Product Details | LOOP CLAMP
5340-01-284-8535 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: AQAP118312271, AQAP11831227-1, 11831086, 11831227, 11831229, 12000002-1, 5340-01-284-8535, 01-284-8535, 5340012848535, 012848535, 120000021
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 SEP 1988 | 01-284-8535 | 17532 ( CLAMP, LOOP ) |

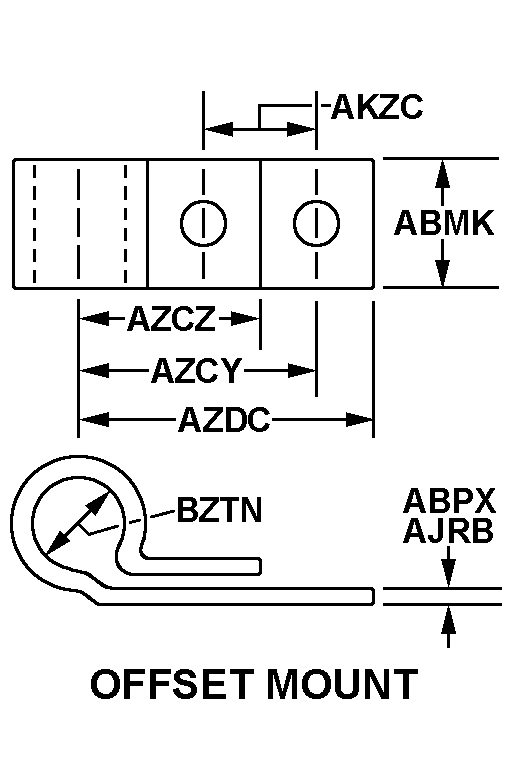

Drawings & Photos | NSN 5340-01-284-8535
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-284-8535
Technical Data | NSN 5340-01-284-8535
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| STYLE DESIGNATOR | A6 OFFSET MOUNT |
| OVERALL WIDTH | 0.530 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 0.700 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.250 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 1.625 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.125 INCHES NOMINAL AND 0.193 INCHES NOMINAL |
| SPECIAL FEATURES | C/O CLAMP P/N 11831229-1 AND BRACKET P/N 11831086 AND CUSHION AROUND CLAMP |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 11831086 |
