NSN 5340-01-099-8156 NAS1464B-032-05 N, NAS1464B03205N, NAS1464B032-05N
Product Details | SPRING TENSION CLIP
5340-01-099-8156 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: NAS1464B-032-05 N, NAS1464B03205N, NAS1464B032-05N, 5340-01-099-8156, 01-099-8156, 5340010998156, 010998156
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 AUG 1980 | 01-099-8156 | 20815 ( CLIP, SPRING TENSION ) |

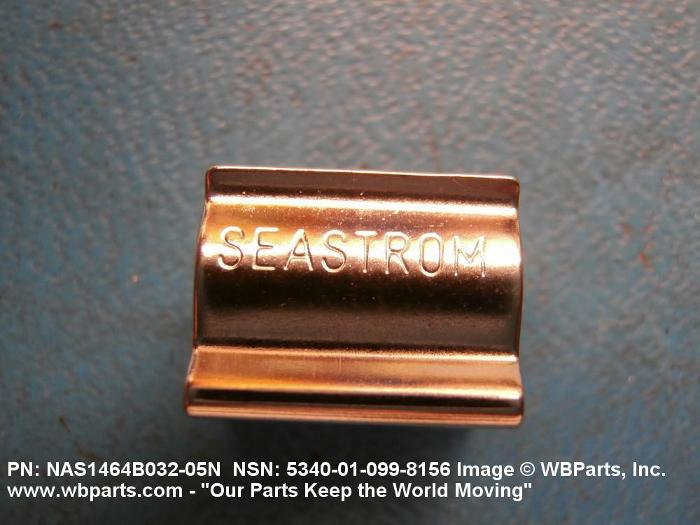

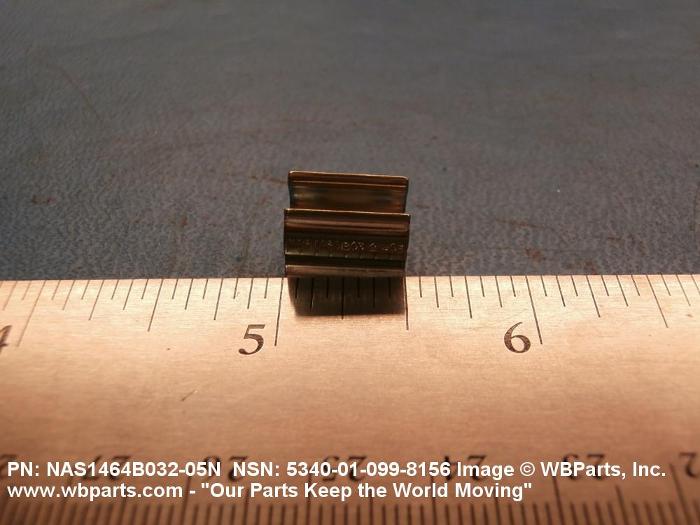

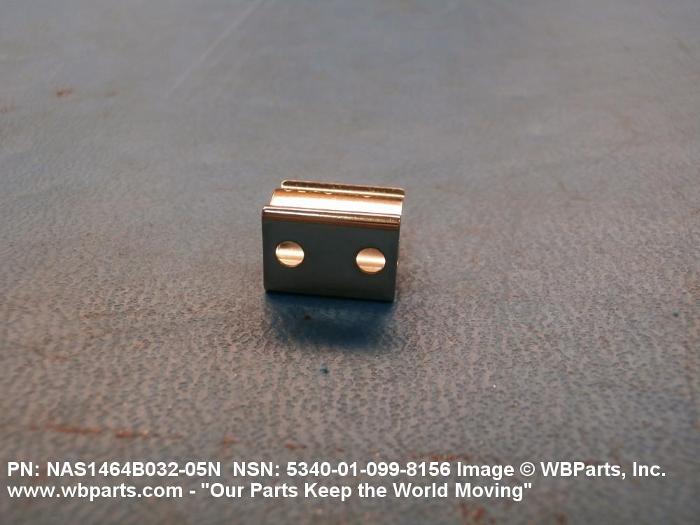

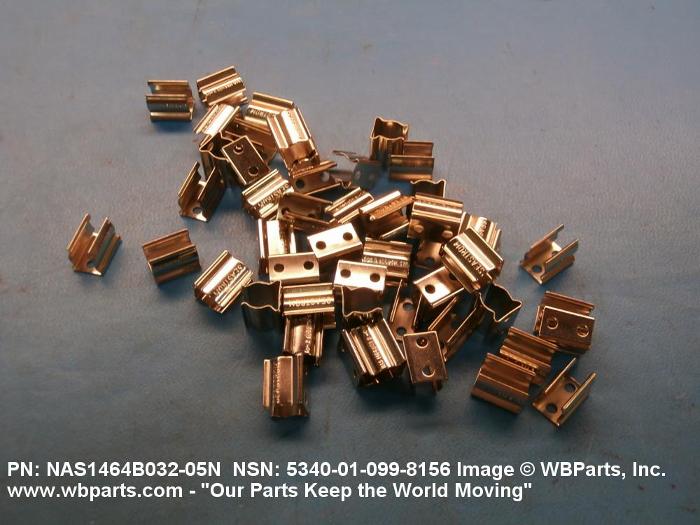

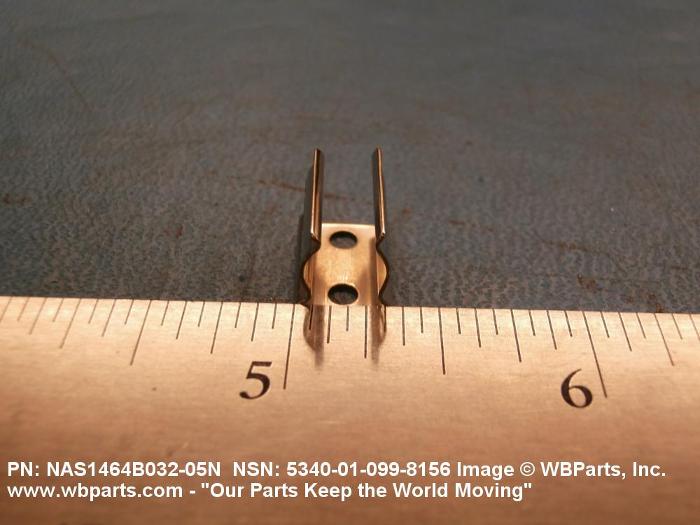

Drawings & Photos | NSN 5340-01-099-8156
Demand History | NSN 5340-01-099-8156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-099-8156 | 2021-03-60 | 50 | US |
| 5340-01-099-8156 | 2013-01-06 | 5 | Israel |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-099-8156
Technical Data | NSN 5340-01-099-8156
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 170 OR COPPER ALLOY 172 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533,ALLOY 170,TEMPER A FED SPEC 1ST MATERIAL RESPONSE OR QQ-C-533,ALLOY 172,TEMPER A FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| WIDTH | 0.370 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.430 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.016 INCHES NOMINAL |
| LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| DISTANCE FROM LOOP CENTER TO END | 0.202 INCHES MINIMUM |
| LOOP/HOLDING DIMENSION | 0.305 INCHES MINIMUM AND 0.335 INCHES MAXIMUM |
| MOUNTING METHOD | UNTHREADED HOLE |
| SPECIFICATION/STANDARD DATA | 80205-80205-NAS1464 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-01-099-8156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-099-8156
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
