NSN 5340-01-096-5786 70302-02145-101, 01-096-5786, 7030202145101
Product Details | SPRING TENSION CLIP
5340-01-096-5786 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 70302-02145-101, 5340-01-096-5786, 01-096-5786, 5340010965786, 7030202145101, 010965786
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 1980 | 01-096-5786 | 20815 ( CLIP, SPRING TENSION ) |

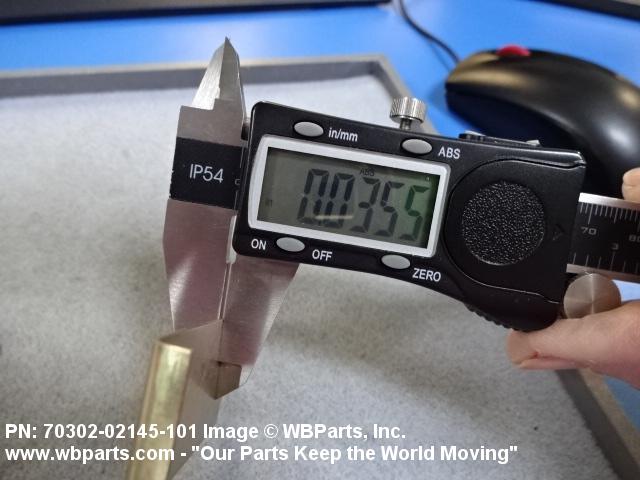

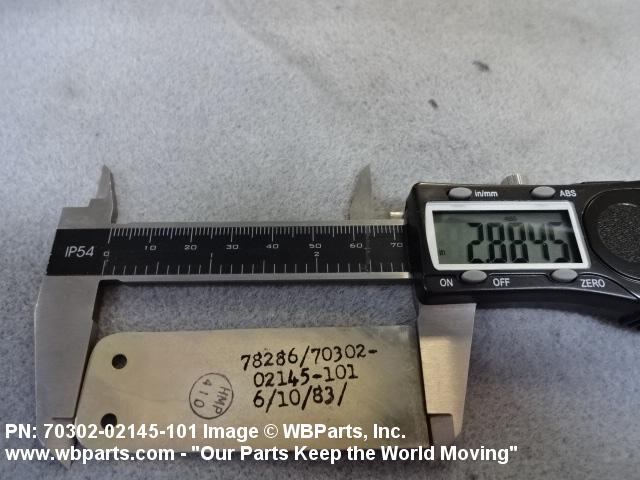

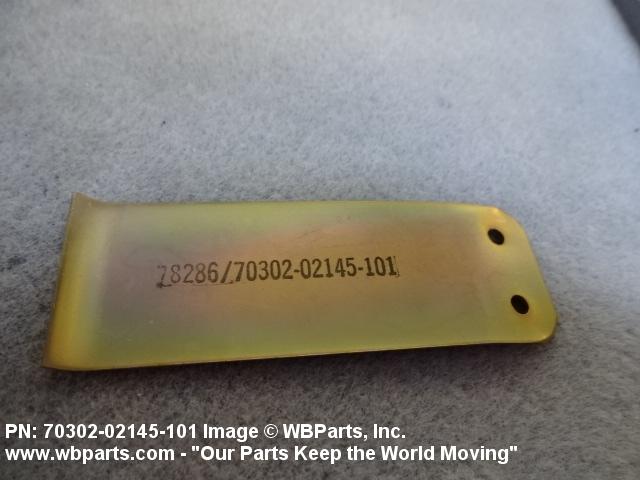

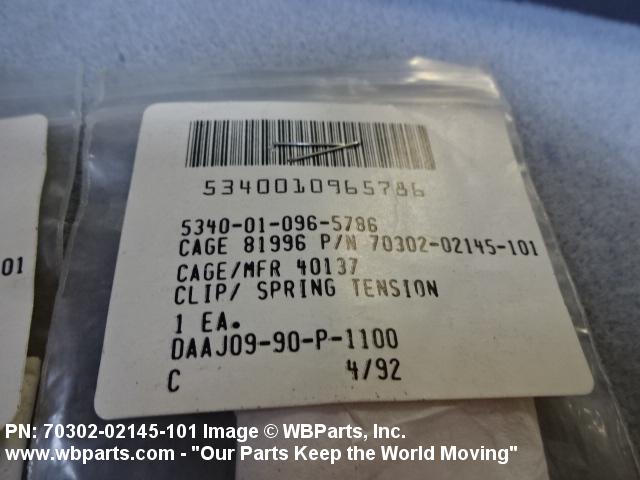

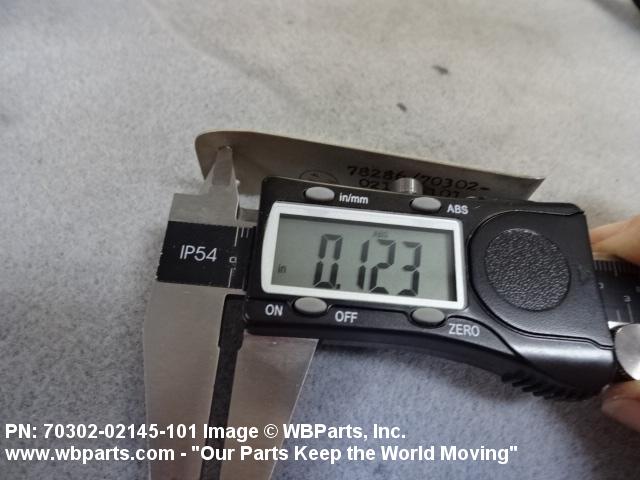

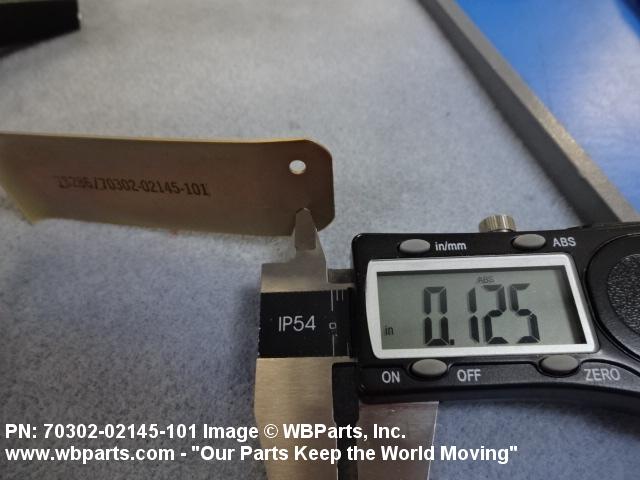

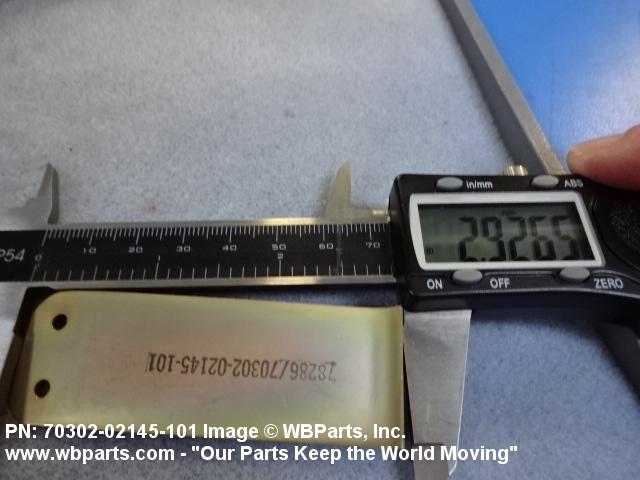

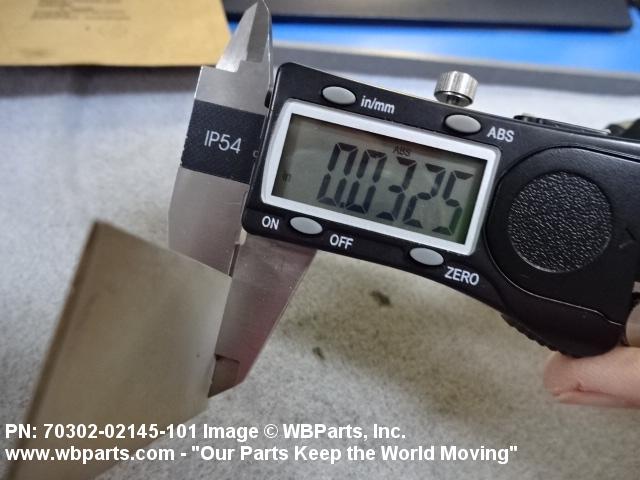

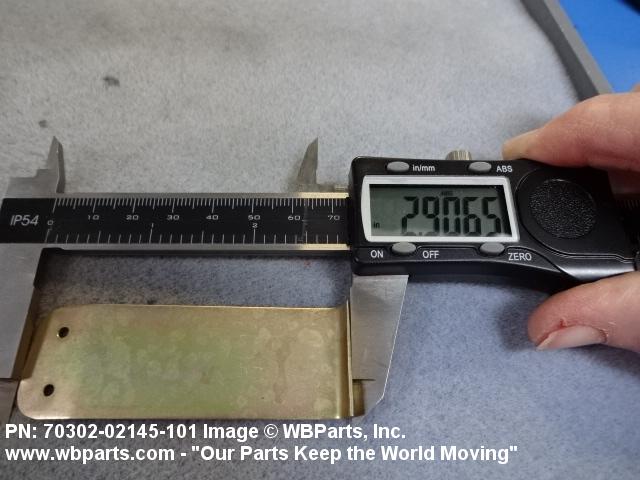

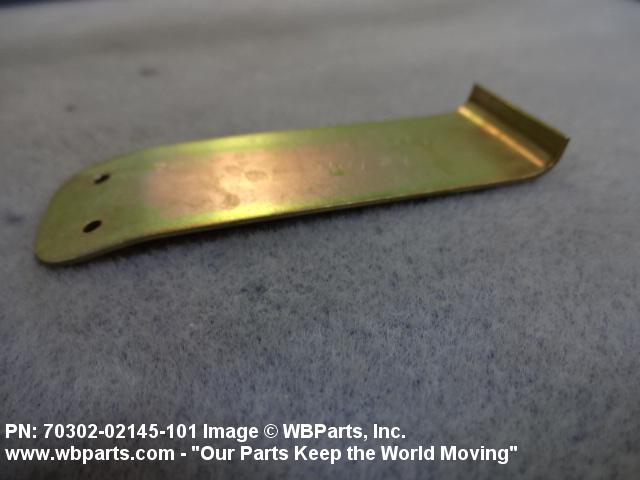

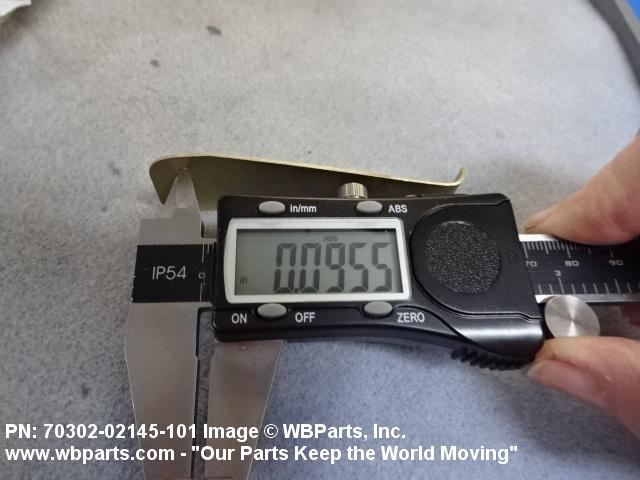

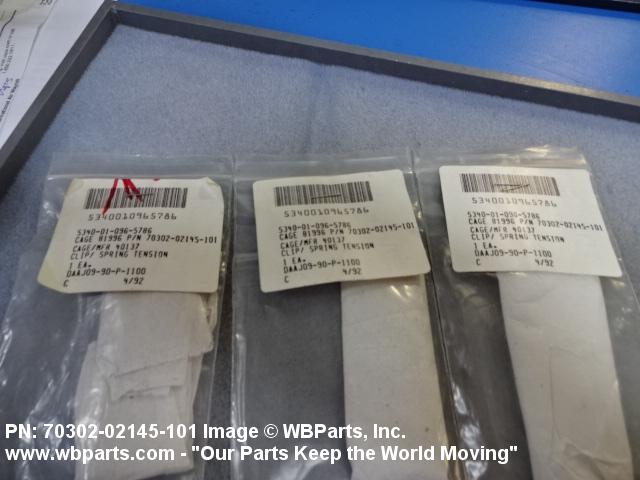

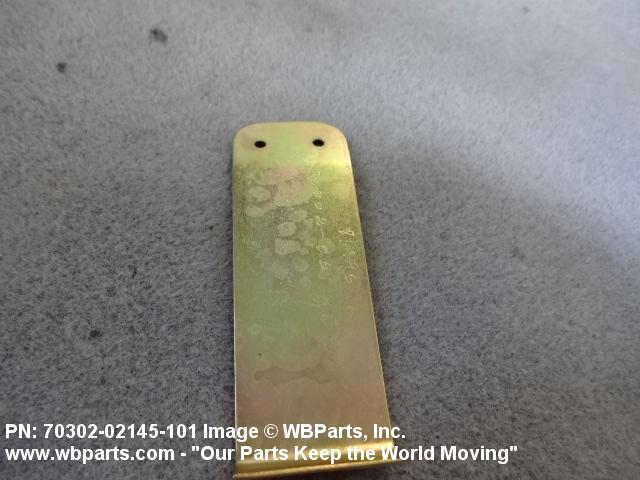

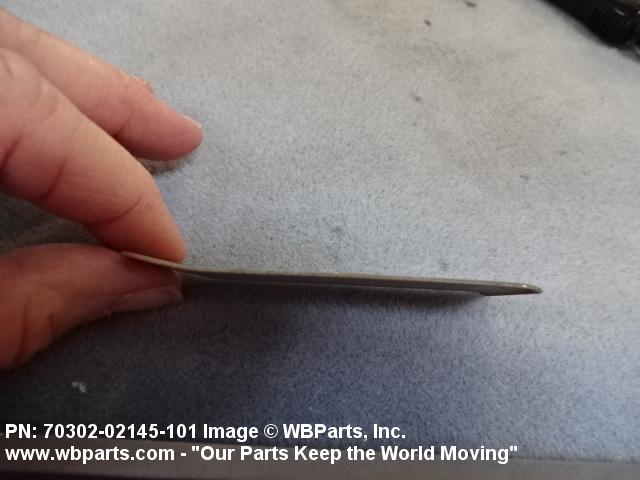

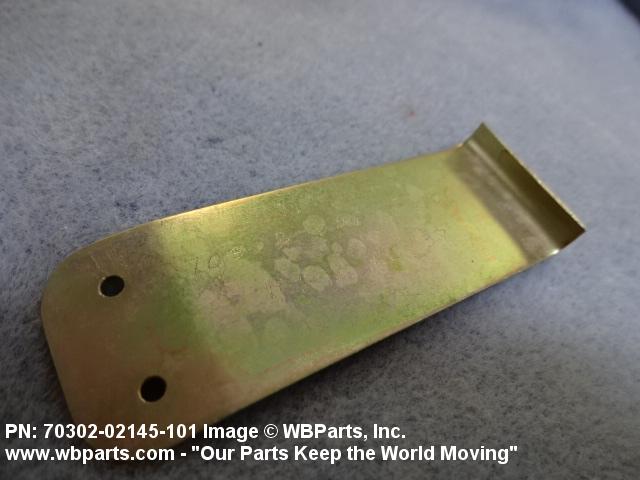

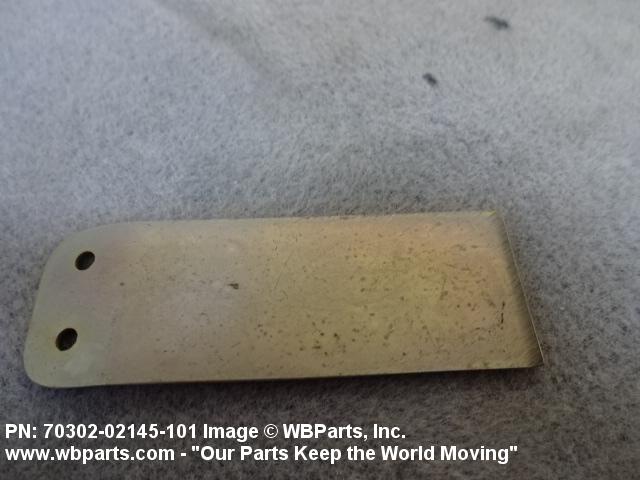

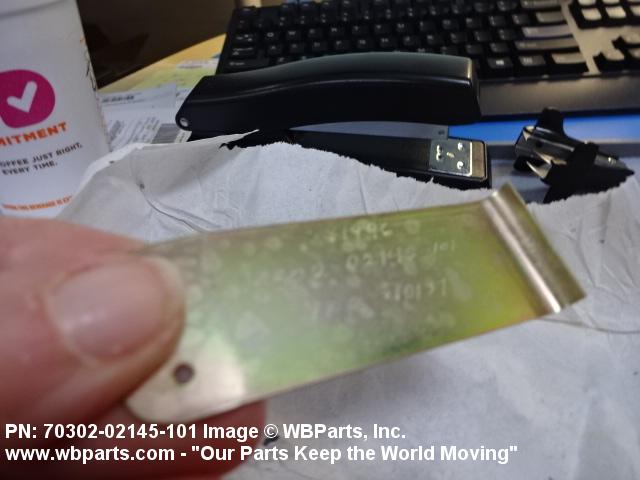

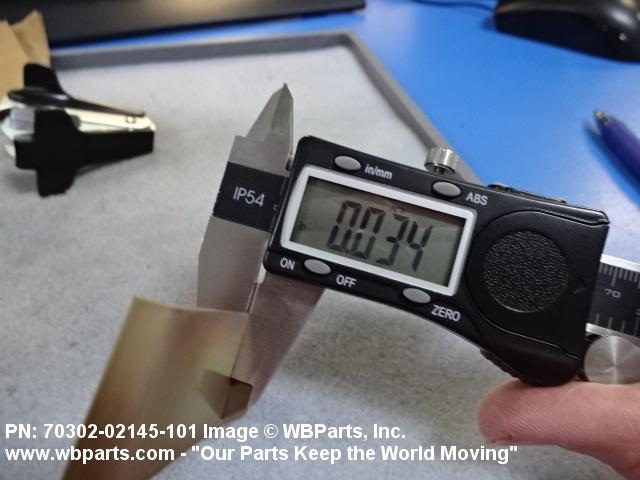

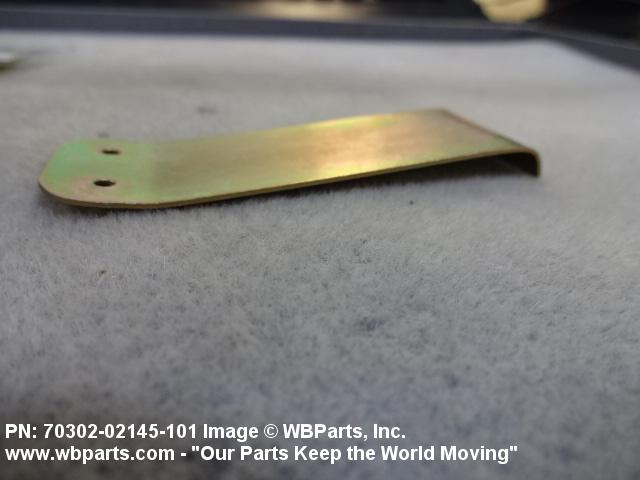

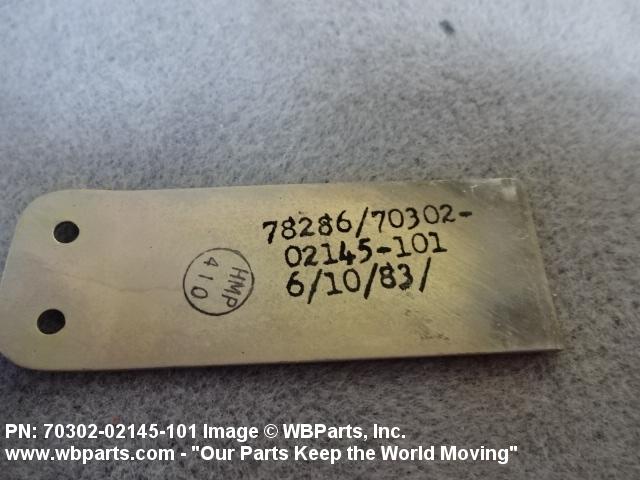

Drawings & Photos | NSN 5340-01-096-5786
Demand History | NSN 5340-01-096-5786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7030-20-214-5101 | 2017-04-100 | 8 | Canada |
Cross Reference | NSN 5340-01-096-5786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70302-02145-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
