NSN 5340-01-067-1769 69C52265, 69C522651, 69C52265-1
Product Details | TURNBUCKLE
5340-01-067-1769 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Part Alternates: 69C52265, 69C522651, 69C52265-1, 5340-01-067-1769, 01-067-1769, 5340010671769, 010671769
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 OCT 1978 | 01-067-1769 | 00502 ( TURNBUCKLE ) |
Drawings & Photos | NSN 5340-01-067-1769
Demand History | NSN 5340-01-067-1769
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-067-1769 | 2015-10-277 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-067-1769
Related Products | NSN 5340-01-067-1769
Technical Data | NSN 5340-01-067-1769
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM AND CHROMATE BODY CADMIUM AND CHROMATE END PULL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | OO-P-416,TY 2,CL 1 FED SPEC 1ST TREATMENT RESPONSE BODY QQ-P-416,TY 2,CL 1 FED SPEC 2ND TREATMENT RESPONSE END PULL |
| THREAD SERIES DESIGNATOR | UNC BODY |
| NOMINAL THREAD SIZE | 0.164 INCHES BODY |
| THREAD CLASS | 2A BODY |

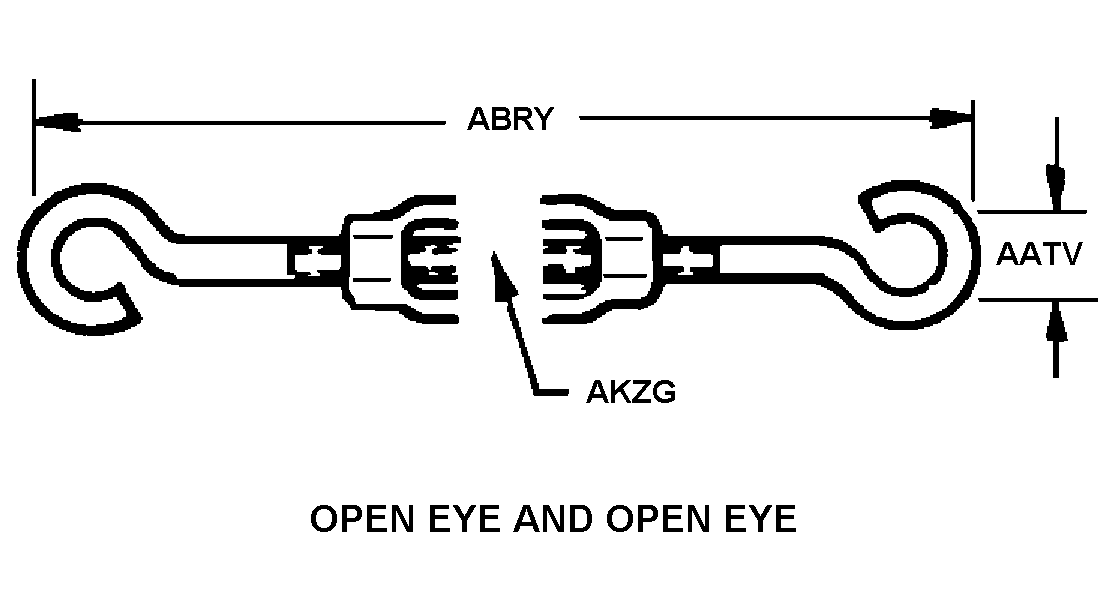

| END STYLE | 205 OPEN EYE AND OPEN EYE |
| EYE WIDTH | 0.312 INCHES NOMINAL |
| LENGTH | 7.000 INCHES NOMINAL |
| TAKE-UP DISTANCE | 1.875 INCHES NOMINAL |
| BODY STYLE | 250 ROUND OPEN BODY |
| BODY LENGTH | 1.875 INCHES NOMINAL |
| LOCKING DEVICE TYPE | NUT |
| SPECIAL FEATURES | L.H. AND R.H. HOOKS BENT TO 30 DEG R |
| MANUFACTURERS CODE | 98750 |
| DESIGN CONTROL REFERENCE | 69C52265-1 |
