NSN 5340-00-205-6012 S15921155P1, S1592-1155P1, 301
Product Details | TURNBUCKLE
5340-00-205-6012 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Part Alternates: S15921155P1, S1592-1155P1, 301, 5340-00-205-6012, 00-205-6012, 5340002056012, 002056012
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-205-6012 | 00502 ( TURNBUCKLE ) |
Drawings & Photos | NSN 5340-00-205-6012
Demand History | NSN 5340-00-205-6012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 301 | 2012-07-204 | 1 | United States |
| 301 | 2011-12-335 | 25 | |
| 301 | 2011-10-278 | 4 | US |
| 301 | 2011-05-138 | 1 | AE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-205-6012
Technical Data | NSN 5340-00-205-6012
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| THREAD SERIES DESIGNATOR | UNC BODY |
| NOMINAL THREAD SIZE | 0.500 INCHES BODY |
| THREAD CLASS | 1A BODY |

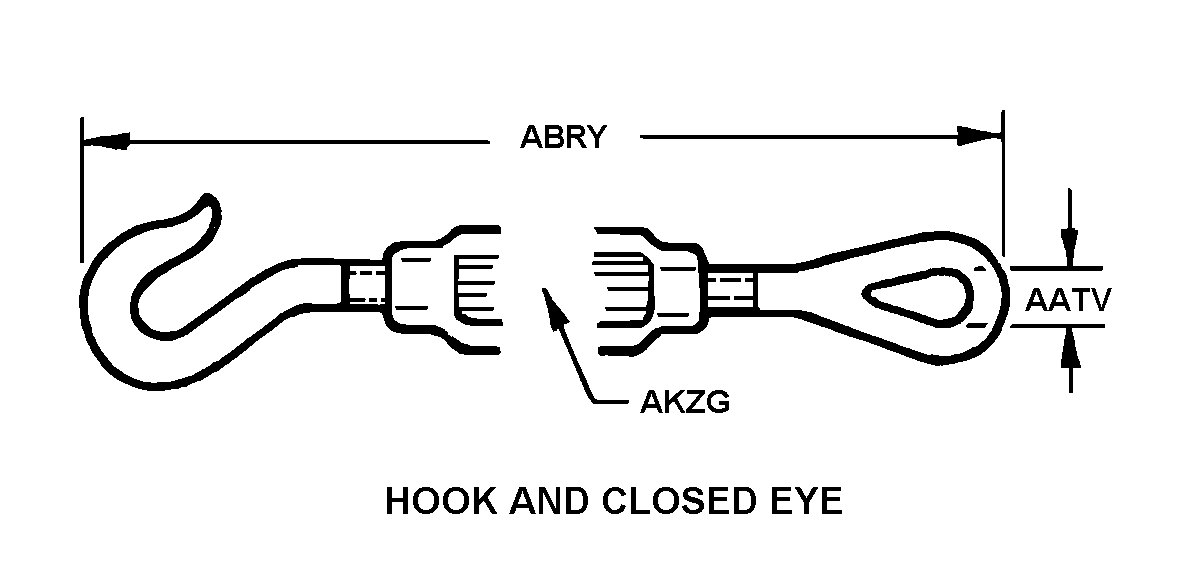

| END STYLE | 204 HOOK AND CLOSED EYE |
| EYE WIDTH | 0.812 INCHES NOMINAL |
| LENGTH | 12.000 INCHES NOMINAL |
| TAKE-UP DISTANCE | 6.000 INCHES NOMINAL |

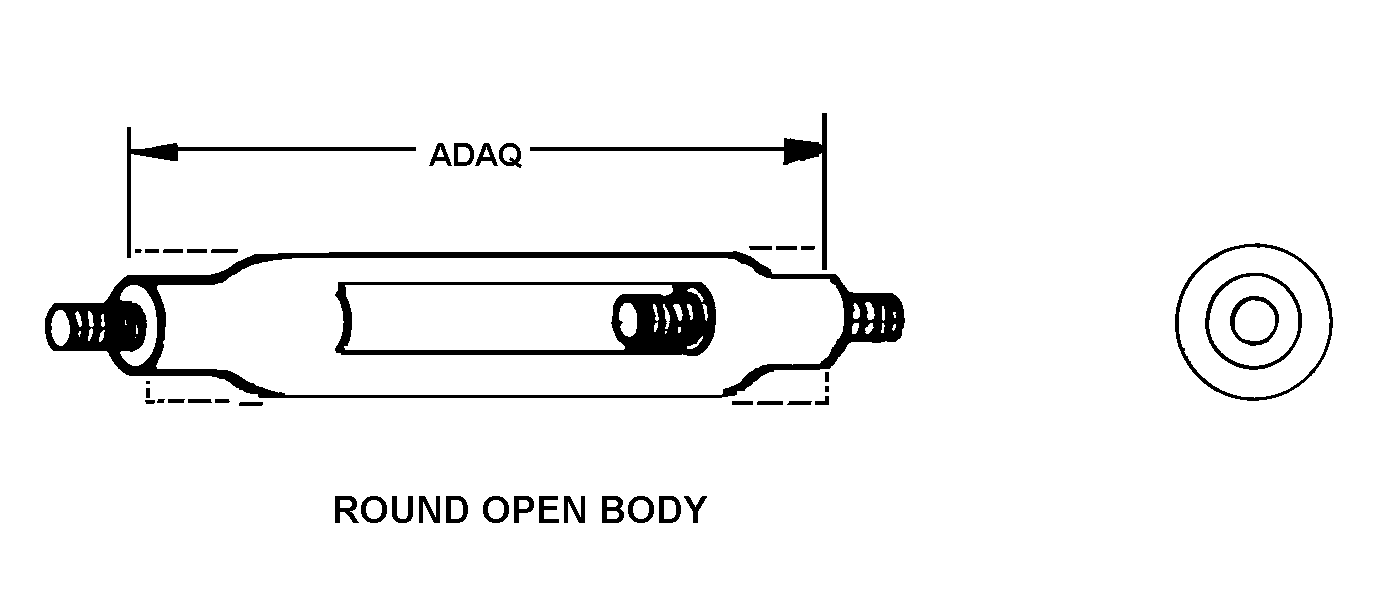

| BODY STYLE | 250 ROUND OPEN BODY |
| BODY LENGTH | 7.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-205-6012
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107340 | TURNBUCKLES/SLEEVE NUTS NOI I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
