NSN 5340-00-230-1830 NAS104710P060, NAS1047-10P060, 00-230-1830
Product Details | TURNBUCKLE

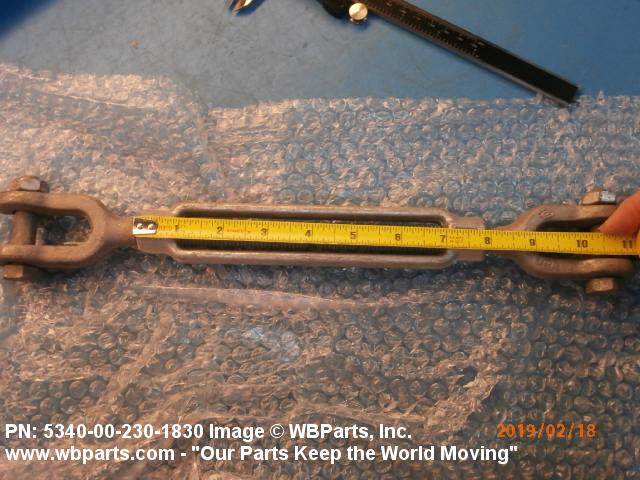

5340-00-230-1830 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Part Alternates: NAS104710P060, NAS1047-10P060, 5340-00-230-1830, 00-230-1830, 5340002301830, 002301830
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1971 | 00-230-1830 | 00502 ( TURNBUCKLE ) |

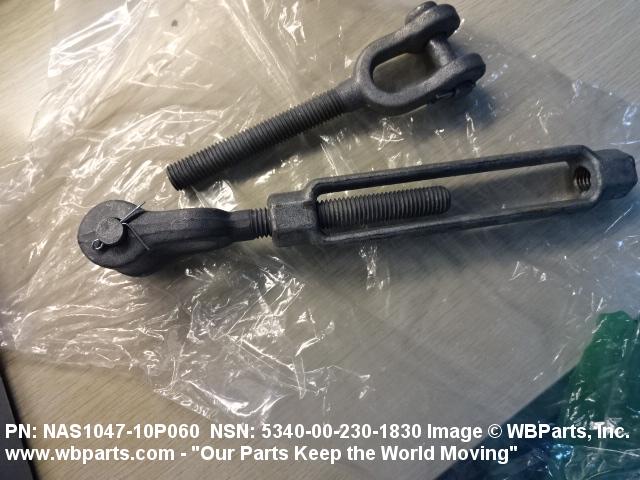

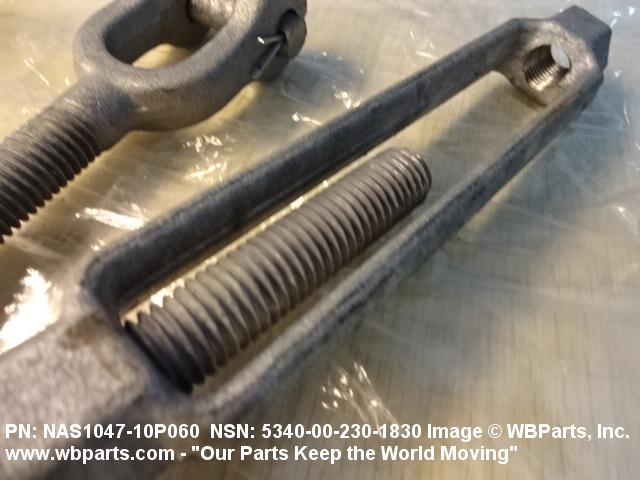

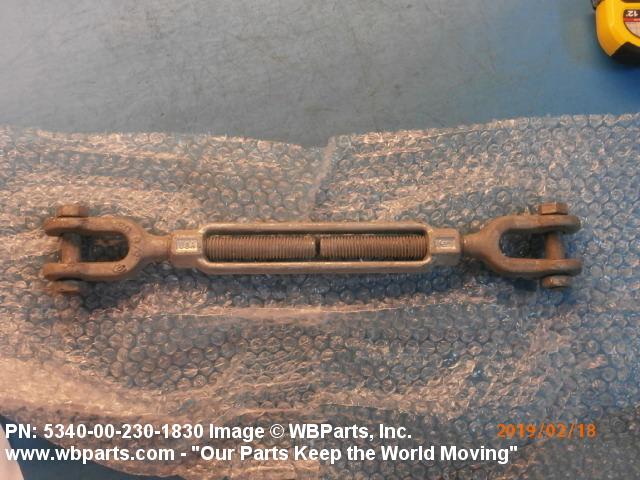

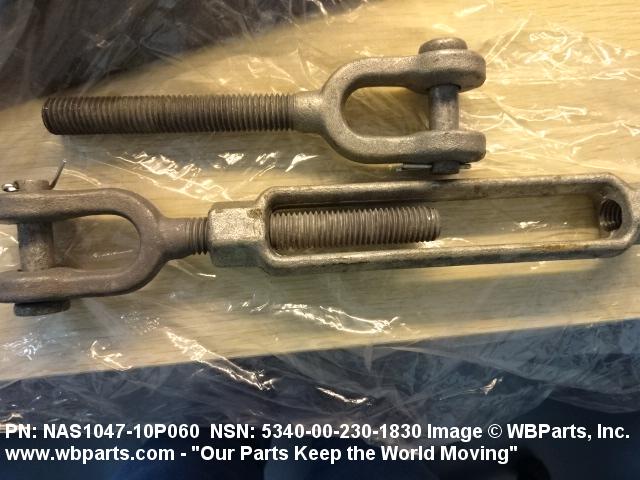

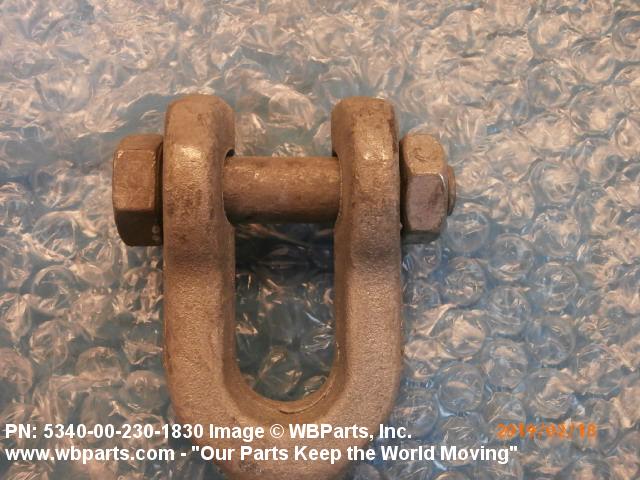

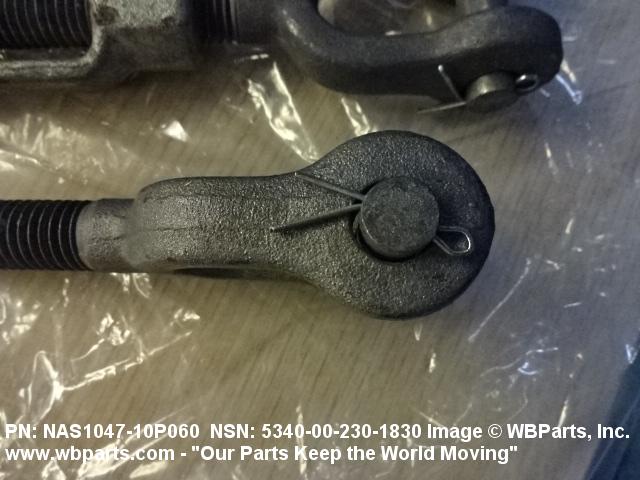

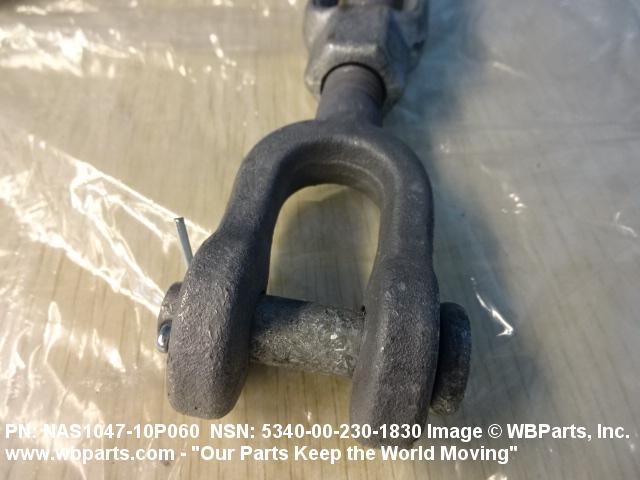

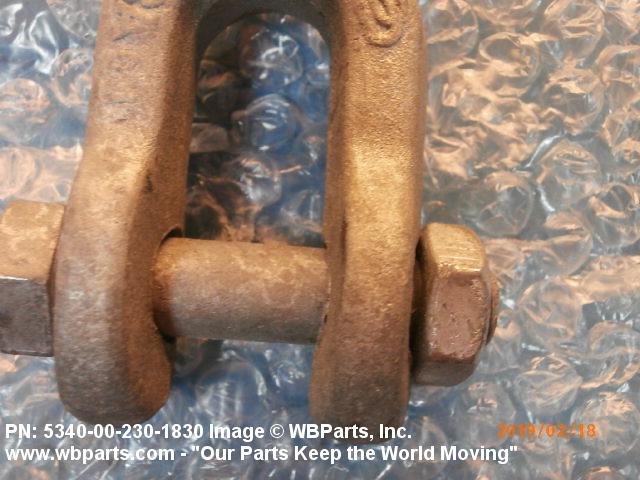

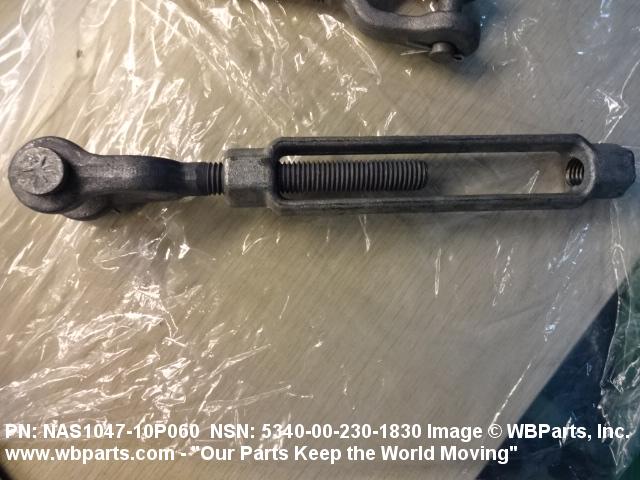

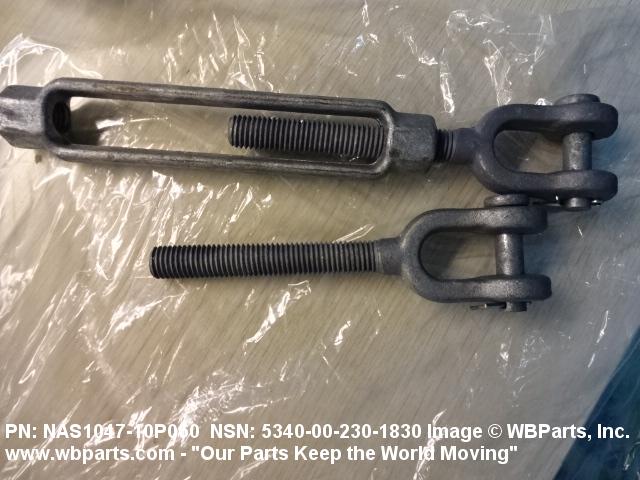

Drawings & Photos | NSN 5340-00-230-1830
Demand History | NSN 5340-00-230-1830
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-230-1830 | 2023-10-304 | 40 | United States |
| NAS104710P060 | 2019-03-78 | 1 | United States |
| NAS104710P060 | 2019-03-78 | 4 | United States |
| 5340-00-230-1830 | 2019-02-42 | 4 | United States |
Cross Reference | NSN 5340-00-230-1830
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1047-10P060 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-230-1830
Related Products | NSN 5340-00-230-1830
Technical Data | NSN 5340-00-230-1830
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| THREAD SERIES DESIGNATOR | UNC BODY |

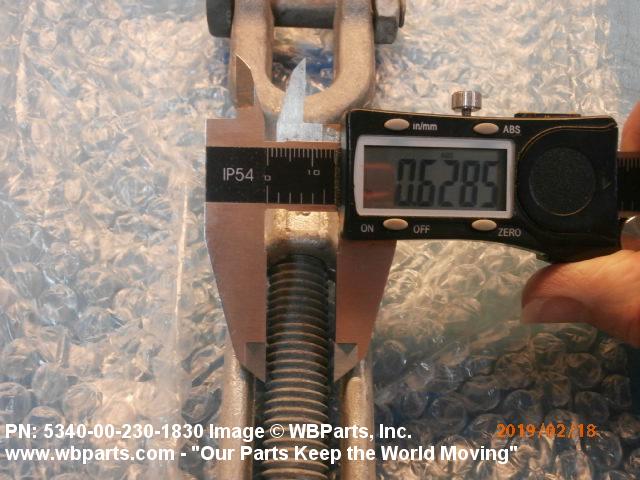

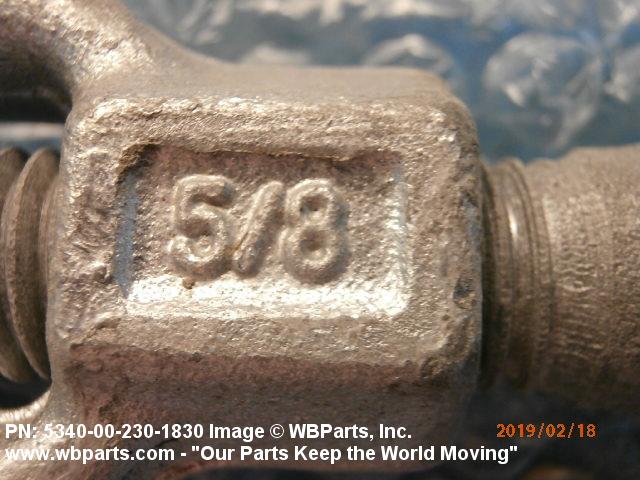

| NOMINAL THREAD SIZE | 0.625 INCHES BODY |
| THREAD CLASS | 2B BODY |

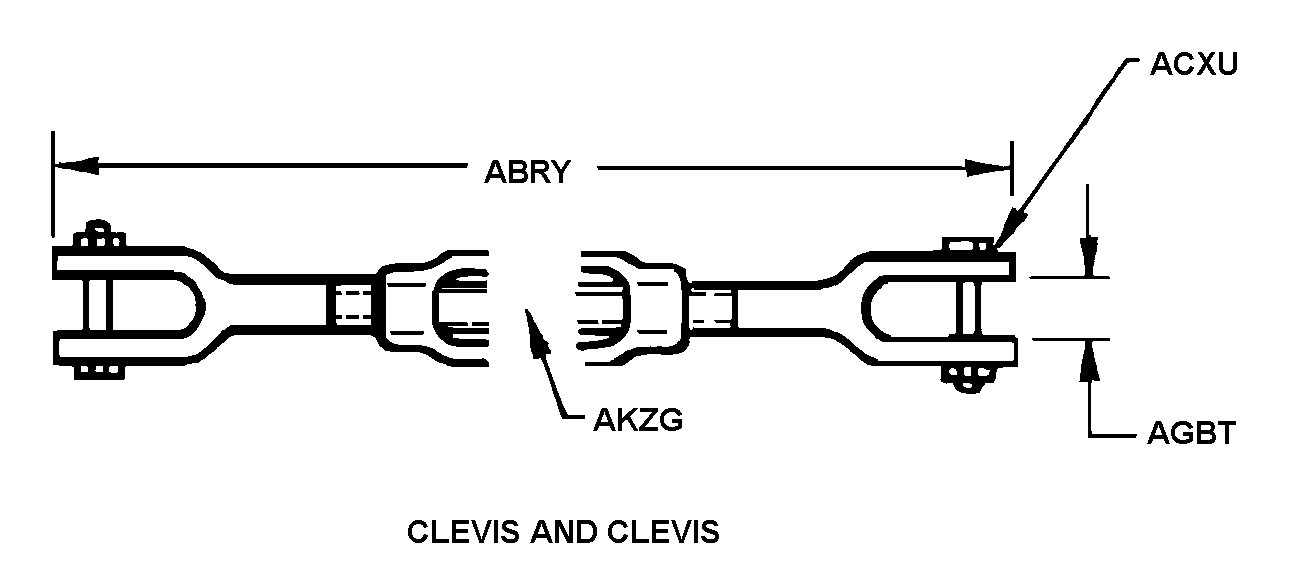

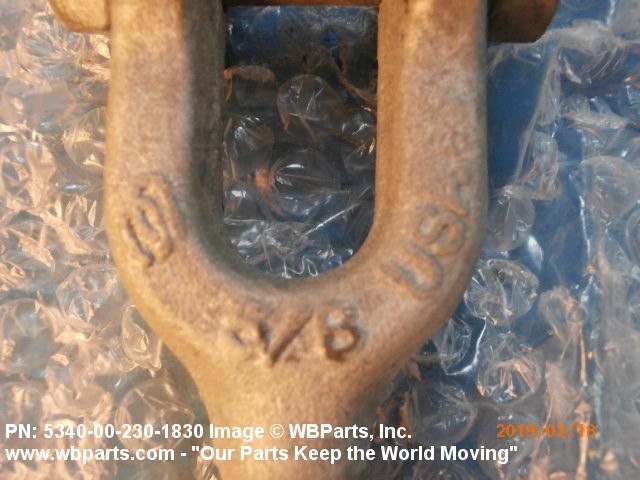

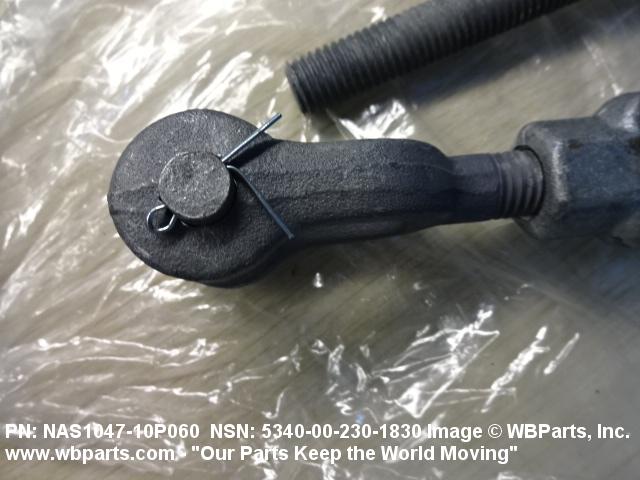

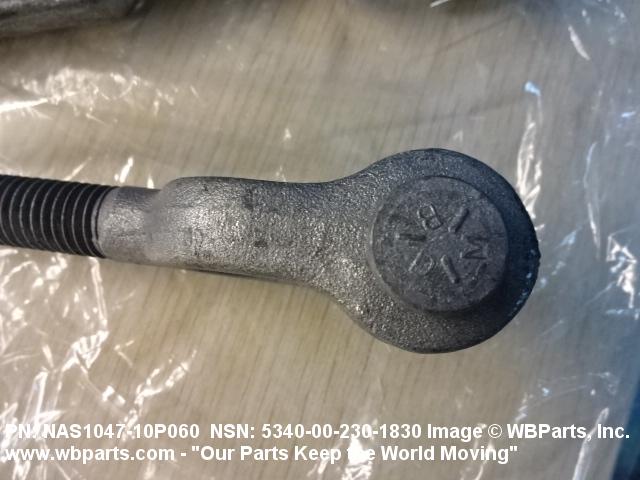

| END STYLE | 200 CLEVIS AND CLEVIS |

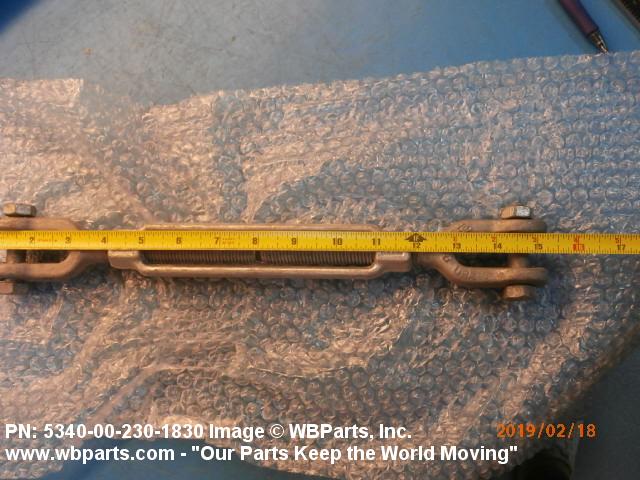

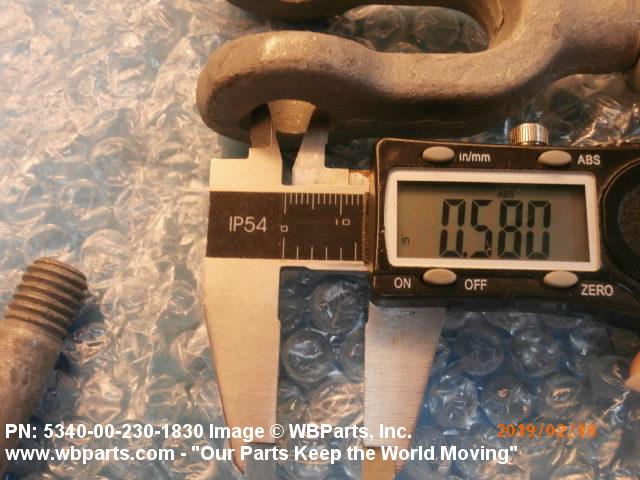

| LENGTH | 15.188 INCHES NOMINAL |
| PINHOLE DIAMETER | 0.500 INCHES NOMINAL |
| FORK WIDTH | 0.750 INCHES NOMINAL |
| TAKE-UP DISTANCE | 6.000 INCHES NOMINAL |

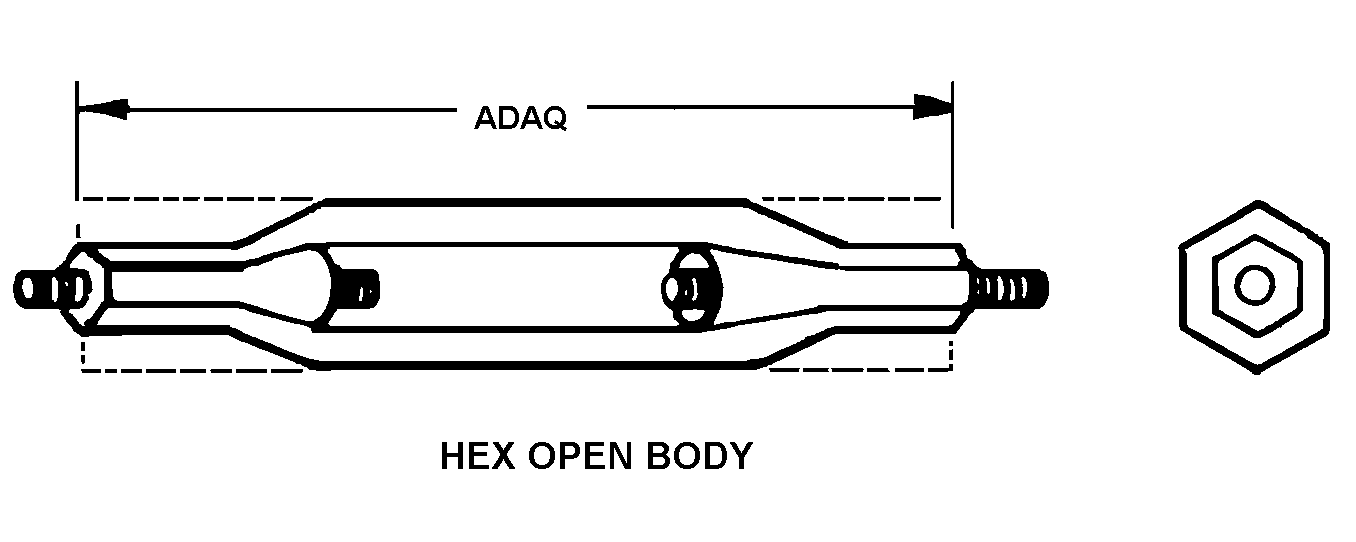

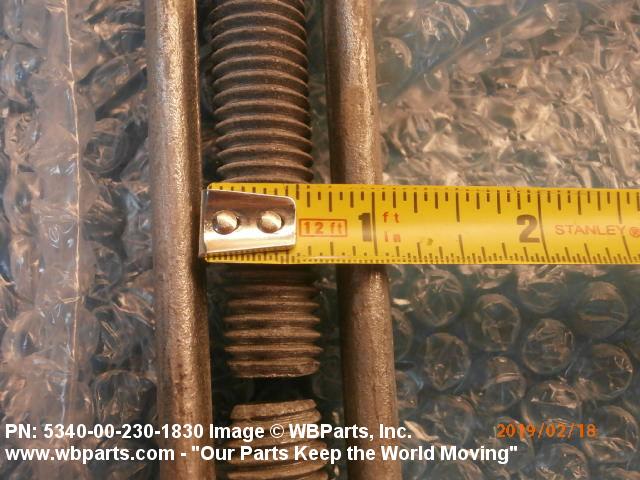

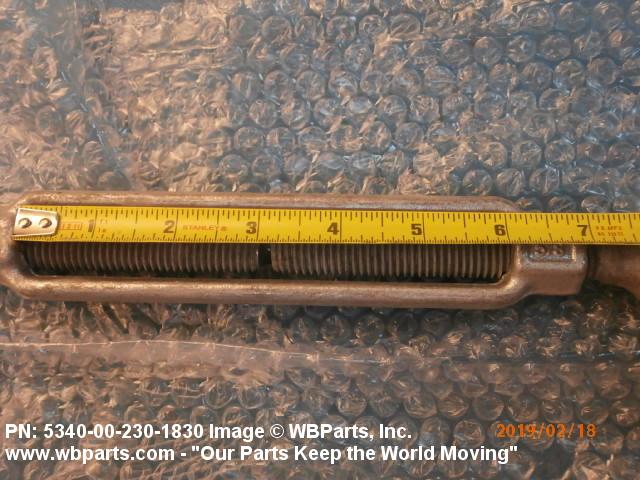

| BODY STYLE | 251 HEX OPEN BODY |
| BODY LENGTH | 8.124 INCHES NOMINAL |
| FURNISHED ITEMS AND QUANTITY | 2 BOLT AND 2 NUT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1047 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
