Product Details | SPACING THREADED STANDOFF
5340-01-014-3794 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 16818, 5340-01-014-3794, 01-014-3794, 5340010143794, 010143794
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 DEC 1975 | 01-014-3794 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-01-014-3794
Cross Reference | NSN 5340-01-014-3794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16818 | 02227 | NAVAL ELECTRONIC SYSTEMS SECURITY ENGINEERING CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-014-3794
Technical Data | NSN 5340-01-014-3794
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |

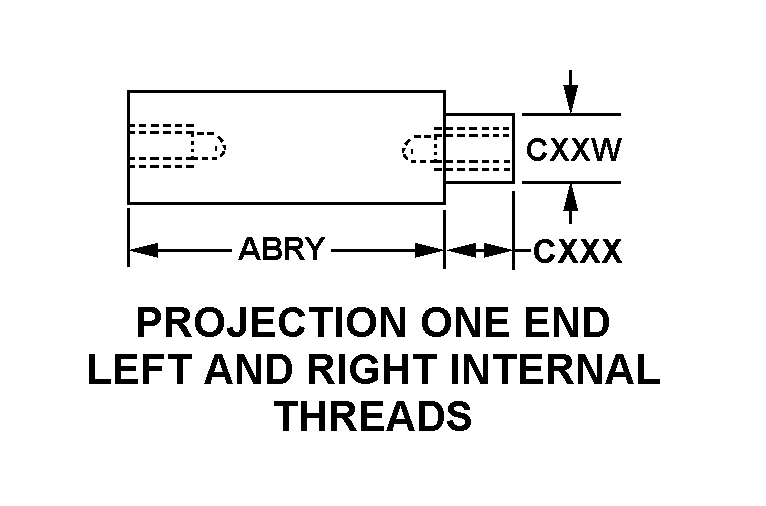

| STYLE DESIGNATOR | 11 PROJECTION ONE END LEFT AND RIGHT INTERNAL THREADS |
| LENGTH | 0.500 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.260 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.197 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.350 INCHES MINIMUM |
| (NON-CORE DATA) SECOND INTERNAL THREAD LENGTH | 0.350 INCHES MINIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 0.138-32 UNC-2B THD |
| (NON-CORE DATA) SECOND INTERNAL THREAD CHARACTERISTICS | 0.138-32 UNC-2B THD |
| (NON-CORE DATA) MATERIAL | STEEL, QQ-S-764, TYPE 303-CANCELED |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| MANUFACTURERS CODE | 02227 |
| DESIGN CONTROL REFERENCE | 16818 |
