NSN 5340-00-806-8422 2136971, 2-13697-1, 00-806-8422
Product Details | ROD END CONNECTOR
5340-00-806-8422 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 2136971, 2-13697-1, 5340-00-806-8422, 00-806-8422, 5340008068422, 008068422
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-806-8422 | 03439 ( CONNECTOR, ROD END ) |

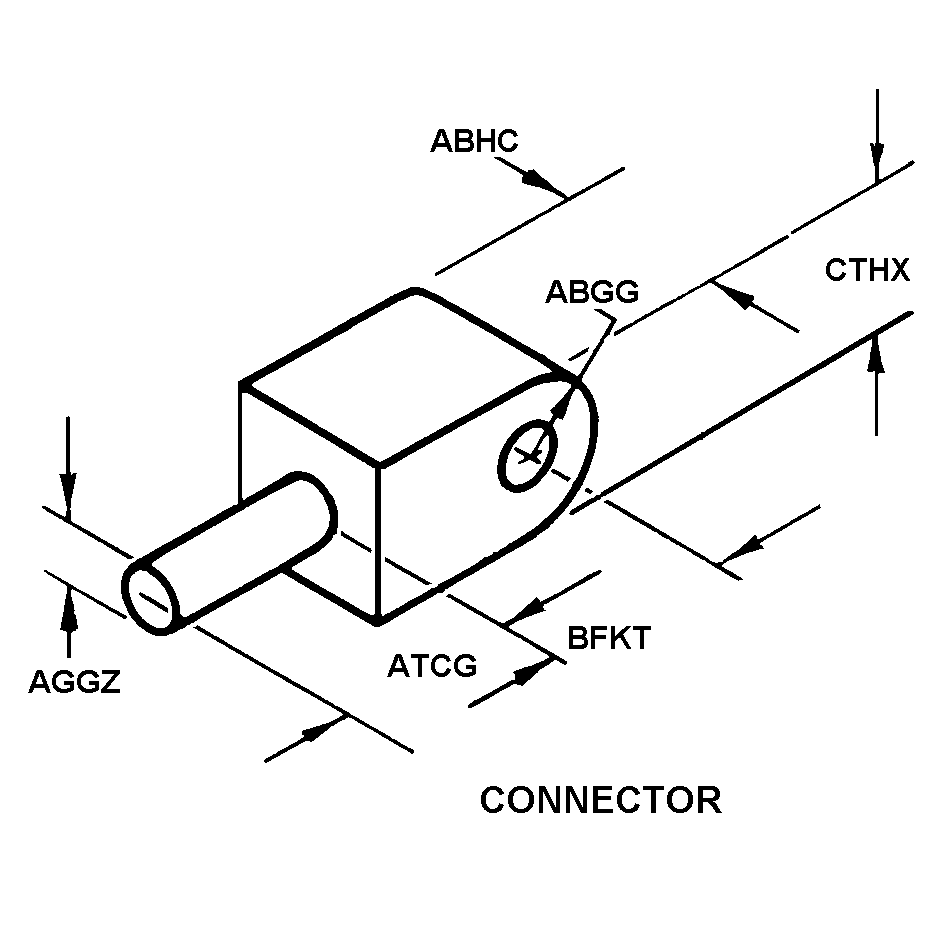

Drawings & Photos | NSN 5340-00-806-8422
Demand History | NSN 5340-00-806-8422
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2-13697-1 | 2024-05-123 | 20 | DIBBS |
| 2-13697-1 | 2024-04-119 | 1 | DIBBS |
| 2-13697-1 | 2024-01-08 | 75 | DIBBS |
| 5340-00-806-8422 | 2023-01-18 | 38 | DIBBS |
| 5340-00-806-8422 | 2021-09-263 | 13 | DIBBS |
| 5340-00-806-8422 | 2021-09-255 | 13 | DIBBS |
| 5340-00-806-8422 | 2020-12-357 | 30 | DIBBS |
| 5340-00-806-8422 | 2020-12-349 | 30 | DIBBS |
| 5340-00-806-8422 | 2016-04-97 | 27 | DIBBS |
| 5340-00-806-8422 | 2015-11-314 | 27 | DIBBS |
| 5340-00-806-8422 | 2015-10-302 | 27 | DIBBS |
| 5340-00-806-8422 | 2015-08-242 | 27 | DIBBS |
| 5340-00-806-8422 | 2012-05-150 | 17 | DIBBS |
| 5340-00-806-8422 | 2012-05-137 | 17 | DIBBS |
| 5340-00-806-8422 | 2012-05-125 | 17 | DIBBS |
| 5340-00-806-8422 | 2012-05-124 | 78 | DIBBS |
| 5340-00-806-8422 | 2008-02-46 | 25 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-806-8422
Related Products | NSN 5340-00-806-8422
Technical Data | NSN 5340-00-806-8422
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND F4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.600 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 63 CONNECTOR |
| RADIUS | 0.200 INCHES NOMINAL |
| OVERALL WIDTH | 0.100 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.190 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 0.600 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE CENTER | 0.300 INCHES NOMINAL |
| OVERALL HEIGHT | 0.400 INCHES NOMINAL |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 2-13697-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-806-8422
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-806-8422
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
