Product Details | ROD END CONNECTOR

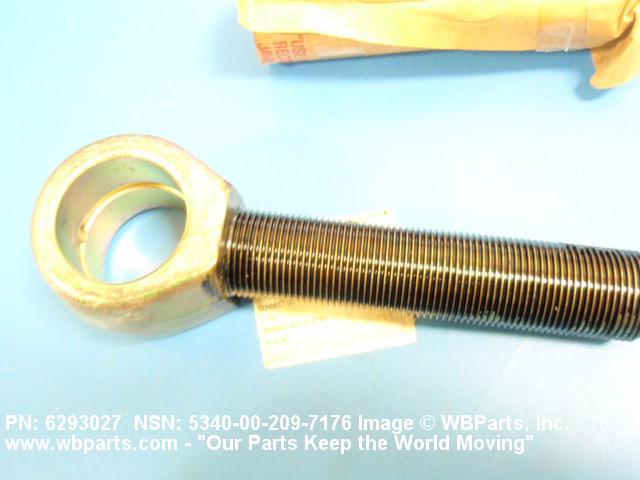

5340-00-209-7176 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 6293027, 5340-00-209-7176, 00-209-7176, 5340002097176, 002097176
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-209-7176 | 03439 ( CONNECTOR, ROD END ) |
Drawings & Photos | NSN 5340-00-209-7176
Demand History | NSN 5340-00-209-7176
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-209-7176 | 2010-04-102 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-209-7176
Technical Data | NSN 5340-00-209-7176
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8640 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE OR QQ-Z-325,TYPE 2,CLASS 2 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 1.250 INCHES ROD CONNECTION |
| THREAD CLASS | 2A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 5.438 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 68 CONNECTOR |
| SHANK OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| TONGUE WIDTH | 2.500 INCHES NOMINAL |
| TONGUE THICKNESS | 2.000 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE CENTER | 6.938 INCHES NOMINAL |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 8.312 INCHES NOMINAL |
