NSN 5340-00-069-0610 000690610
Product Details | ROD END CONNECTOR

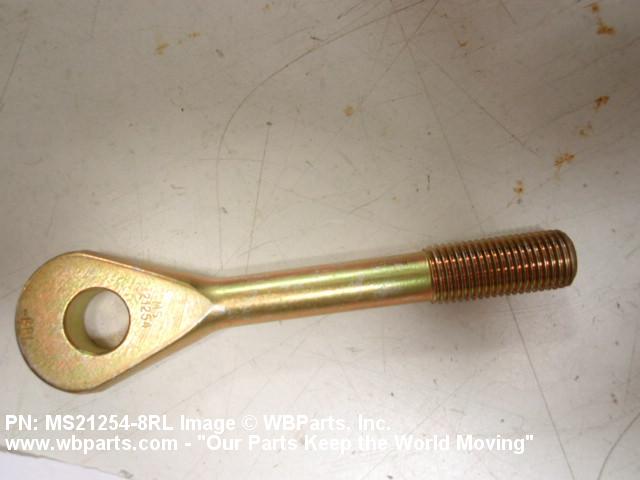

5340-00-069-0610 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 000690610
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-069-0610 | 03439 ( CONNECTOR, ROD END ) |
Drawings & Photos | NSN 1640-00-069-0610
Demand History | NSN 5340-00-069-0610
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS212548RL | 2022-01-18 | 624 | IN |
| 1640-00-069-0610 | 2012-07-213 | 16 | US |
| MS212548RL | 2012-07-209 | 30 | US |
| MS212548RL | 2011-01-03 | 2 | United States |
| MS212548RL | 2011-01-03 | 2 | United States |
| 1640-00-069-0610 | 2010-05-146 | 2 | United States |
| MS212548RL | 2008-09-261 | 4 | US |
| 1640-00-069-0610 | 2007-03-80 | 11 | DIBBS |
| 1640-00-069-0610 | 2007-02-42 | 14 | DIBBS |
