NSN 5340-00-788-8318 3779001, 377900-1, 00-788-8318
Product Details | SPRING TENSION CLIP
5340-00-788-8318 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 3779001, 377900-1, 5340-00-788-8318, 00-788-8318, 5340007888318, 007888318
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-788-8318 | 20815 ( CLIP, SPRING TENSION ) |

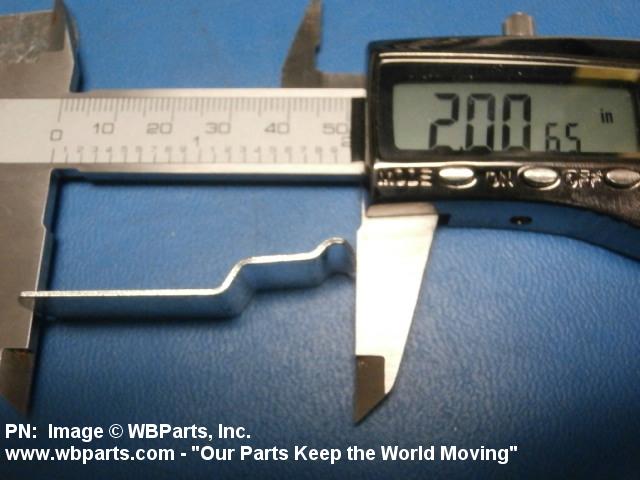

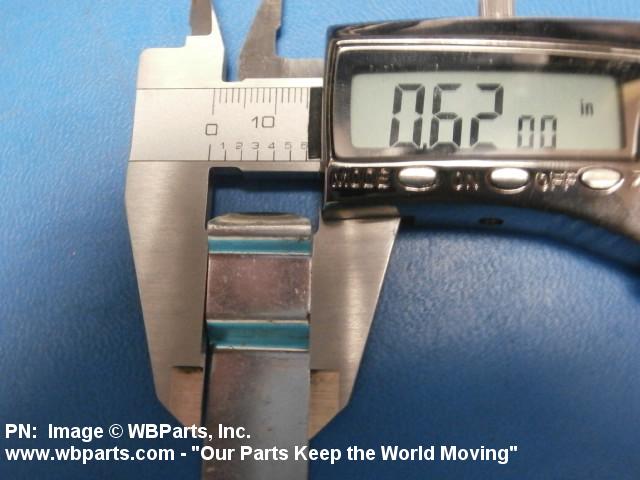

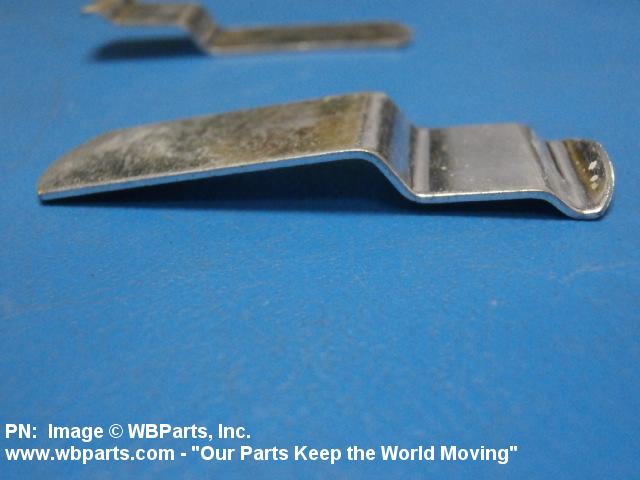

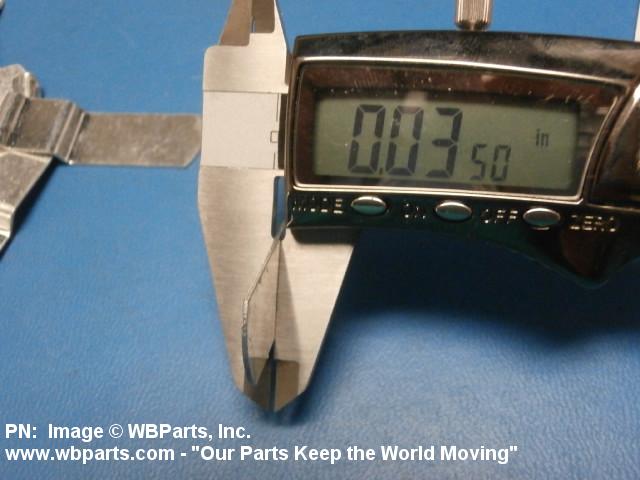

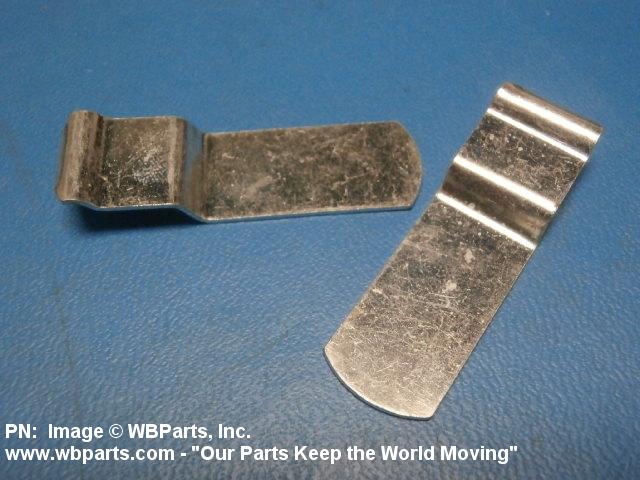

Drawings & Photos | NSN 5340-00-788-8318
Demand History | NSN 5340-00-788-8318
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-788-8318 | 2018-01-08 | 50 | Saudi Arabia |
| 5340-00-788-8318 | 2017-06-152 | 326 | DIBBS |
| 5340-00-788-8318 | 2017-05-122 | 373 | DIBBS |
| 5340-00-788-8318 | 2017-04-114 | 373 | DIBBS |
| 5340-00-788-8318 | 2015-08-239 | 25 | United States |
| 5340-00-788-8318 | 2014-06-153 | 24 | United States |
| 5340-00-788-8318 | 2011-10-300 | 1200 | DIBBS |
| 5340-00-788-8318 | 2010-07-187 | 1227 | DIBBS |
Cross Reference | NSN 5340-00-788-8318
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 377900-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-788-8318
Related Products | NSN 5340-00-788-8318
Technical Data | NSN 5340-00-788-8318
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| WIDTH | 0.620 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |
| LENGTH | 2.400 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 377900-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-788-8318
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094220 | CLIPS SHEET STEEL NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-788-8318
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LG | TG:C-130 HERCULES |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
