5340-00-698-3391 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.

Part Alternates: 8013775, 5340-00-698-3391, 00-698-3391, 5340006983391, 006983391

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-698-3391

Drawings & Photos | NSN 5340-00-698-3391


Cross Reference | NSN 5340-00-698-3391

Part Number Cage Code Manufacturer
8013775 18876 U S ARMY AVIATION AND MISSILE COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-698-3391

Technical Data | NSN 5340-00-698-3391

Characteristic Specifications
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION SAE 9254 ASSN STD SINGLE MATERIAL RESPONSE OVERALL

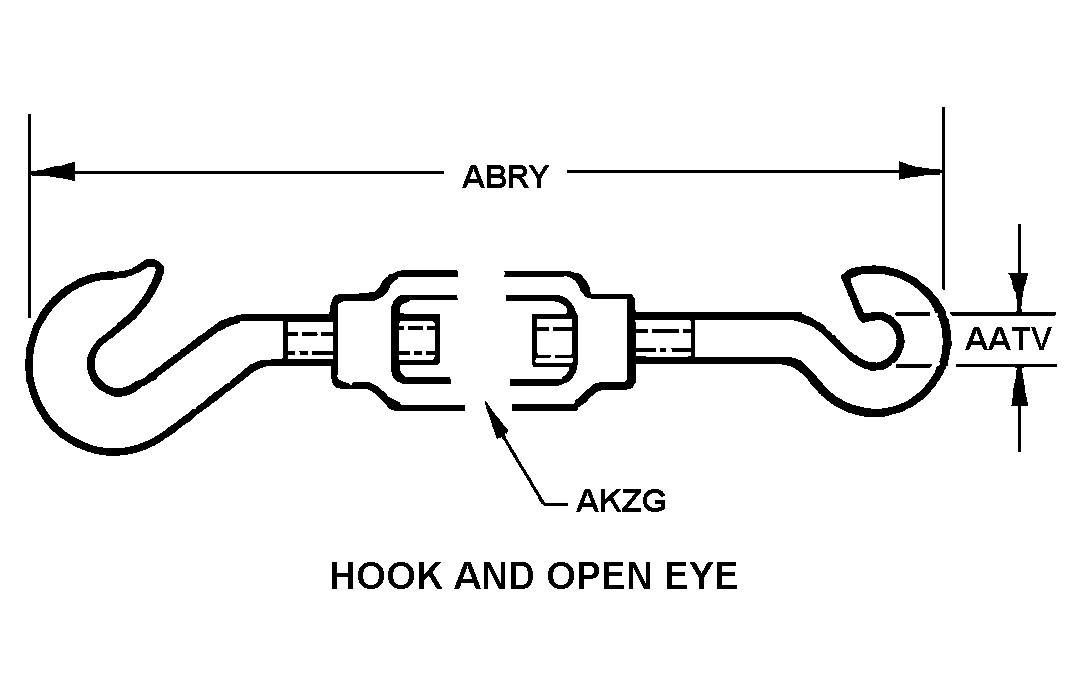

END STYLE 207 HOOK AND OPEN EYE
LENGTH 40.750 INCHES MINIMUM AND 41.750 INCHES MAXIMUM
BODY STYLE 252 ROUND CLOSED BODY
BODY LENGTH 4.750 INCHES NOMINAL
LOCKING DEVICE TYPE NUT
FURNISHED ITEMS AND QUANTITY 1 CLEVIS AND 1 CRAB HOOK
MANUFACTURERS CODE 18876
DESIGN CONTROL REFERENCE 8013775

Restrictions/Controls & Freight Information | NSN 5340-00-698-3391

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
