NSN 5340-00-598-3403 MILP19380, 00-598-3403, 005983403
Product Details | TURNBUCKLE
5340-00-598-3403 A metal loop, sleeve, or solid body with end pulls, having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one end and left hand screw threads on the other. It may include lock nuts, check nuts, jam nuts, and/or terminal attachment(s) such as hooks, rings, and the like. It is designed to regulate the distance (take-up) between two points by turning. See also PELICAN HOOK AND TURNBUCKLE ASSEMBLY; and TIE ROD, TENSIONING, THREADED END.
Part Alternates: MILP19380, 5340-00-598-3403, 00-598-3403, 5340005983403, 005983403
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-598-3403 | 00502 ( TURNBUCKLE ) |
Drawings & Photos | NSN 5340-00-598-3403
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-598-3403
Technical Data | NSN 5340-00-598-3403
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| THREAD SERIES DESIGNATOR | UNC BODY |
| NOMINAL THREAD SIZE | 1.000 INCHES BODY |
| END STYLE | 200 CLEVIS AND CLEVIS |
| LENGTH | 15.000 INCHES NOMINAL |
| FORK WIDTH | 1.188 INCHES NOMINAL |

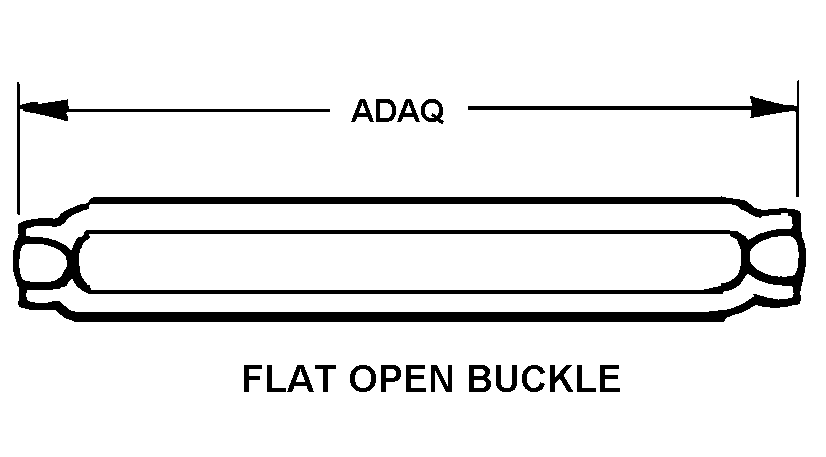

| BODY STYLE | 256 FLAT OPEN BUCKLE |
| BODY LENGTH | 12.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILP19380 |
Restrictions/Controls & Freight Information | NSN 5340-00-598-3403
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
