NSN 5330-01-514-9167 5004177 NON-ASBESTOS, 5004177NONASBESTOS, 01-514-9167
Product Details | GASKET
5330-01-514-9167 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 5004177 NON-ASBESTOS, 5004177NONASBESTOS, 5330-01-514-9167, 01-514-9167, 5330015149167, 015149167
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 NOV 2003 | 01-514-9167 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-514-9167
Demand History | NSN 5330-01-514-9167
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-514-9167 | 2013-01-07 | 175 | DIBBS |
| 5330-01-514-9167 | 2012-04-115 | 11 | DIBBS |
| 5330-01-514-9167 | 2012-01-05 | 164 | DIBBS |
| 5330-01-514-9167 | 2011-12-355 | 164 | DIBBS |
| 5330-01-514-9167 | 2011-07-193 | 94 | DIBBS |
| 5330-01-514-9167 | 2010-08-242 | 86 | DIBBS |
| 5330-01-514-9167 | 2010-02-36 | 86 | DIBBS |
Cross Reference | NSN 5330-01-514-9167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5004177 NON-ASBESTOS | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-514-9167
Technical Data | NSN 5330-01-514-9167
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.014 INCHES NOMINAL |

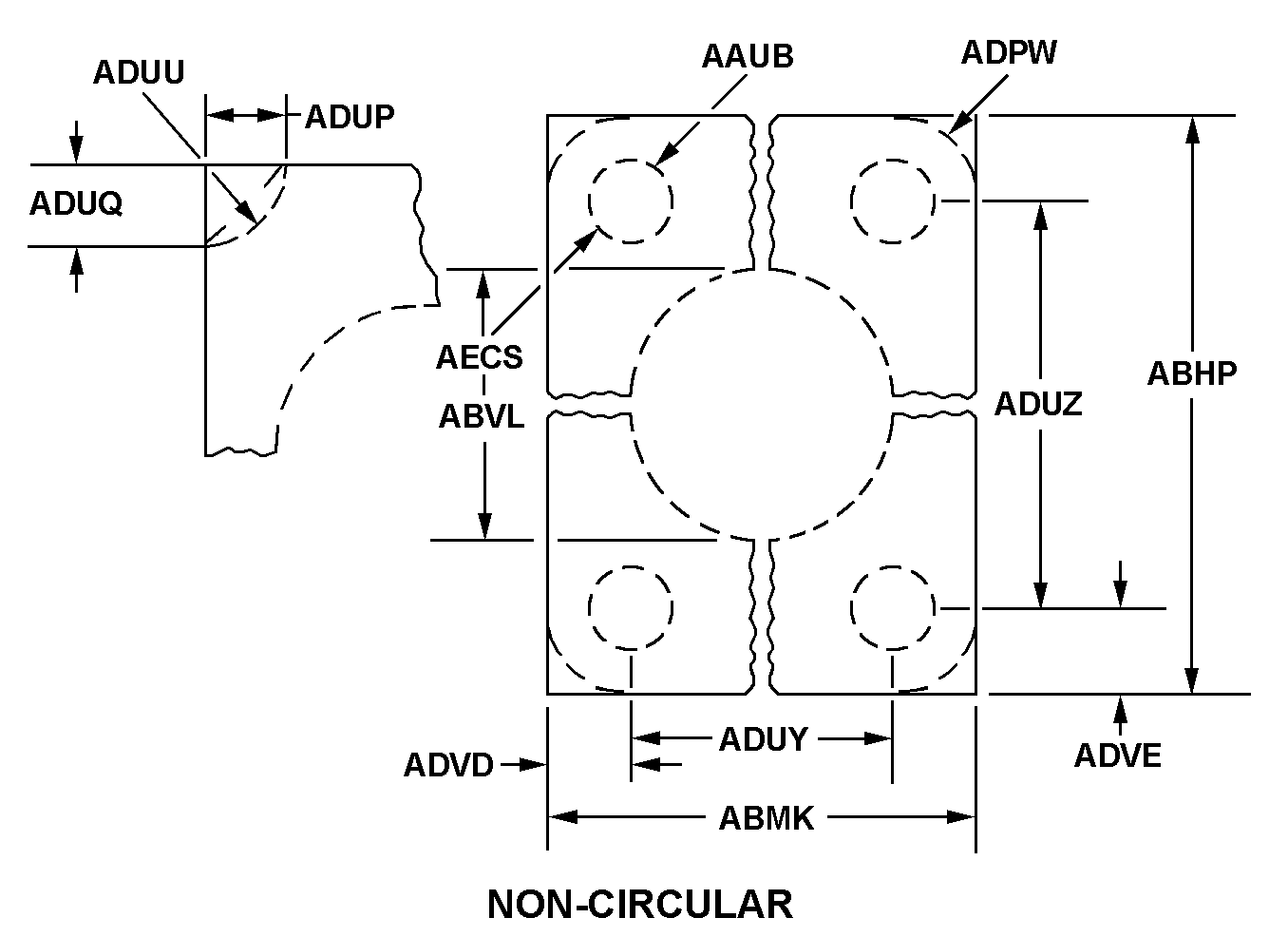

| STYLE DESIGNATOR | B18E NON-CIRCULAR |
| HOLE DIAMETER | 0.423 INCHES MINIMUM AND 0.483 INCHES MAXIMUM |
| OVERALL LENGTH | 2.782 INCHES MINIMUM AND 2.842 INCHES MAXIMUM |
| OVERALL WIDTH | 2.782 INCHES MINIMUM AND 2.842 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 2 |
| SPECIAL FEATURES | CONTAINS NON-ASBESTOS MATERIALS |
| ENVIRONMENTAL ATTRIBUTE CODE | ASBESTOS ALTERNATIVE PRODUCTS |
Restrictions/Controls & Freight Information | NSN 5330-01-514-9167
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-514-9167
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
