NSN 5330-01-502-0008 02813000000, 028-13000-000, 01-502-0008
Product Details | GASKET
5330-01-502-0008 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 02813000000, 028-13000-000, 5330-01-502-0008, 01-502-0008, 5330015020008, 015020008
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 OCT 2002 | 01-502-0008 | 04522 ( GASKET ) |

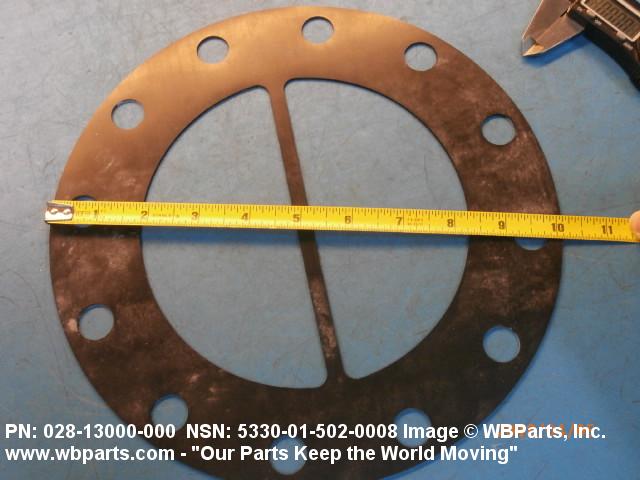

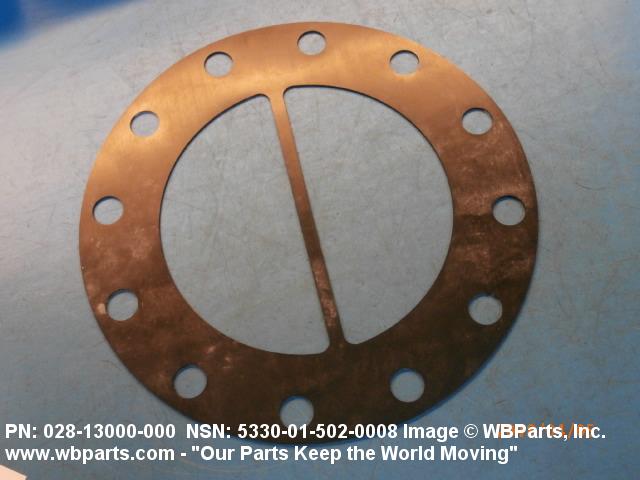

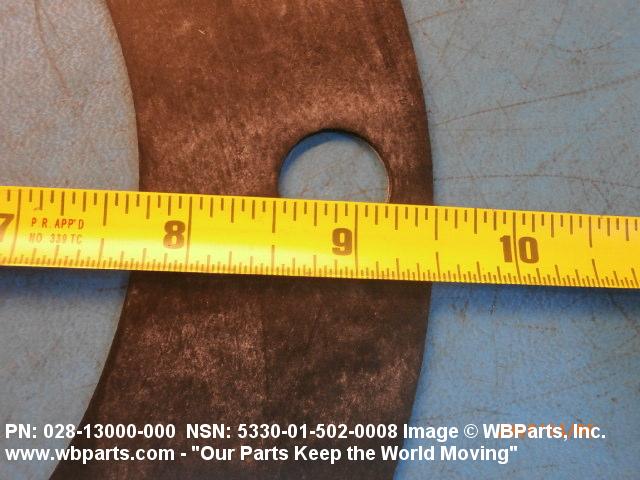

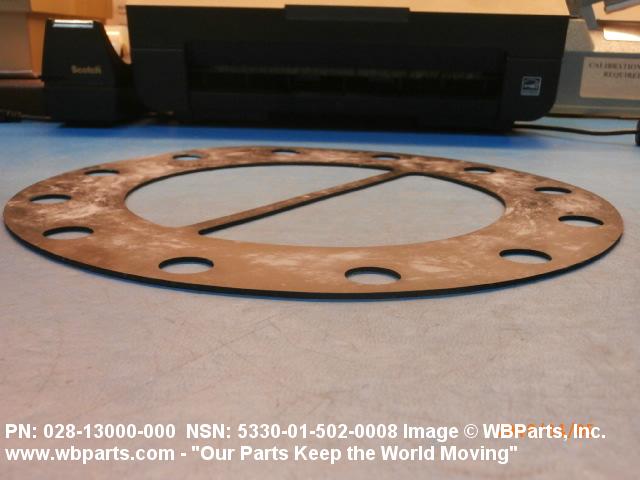

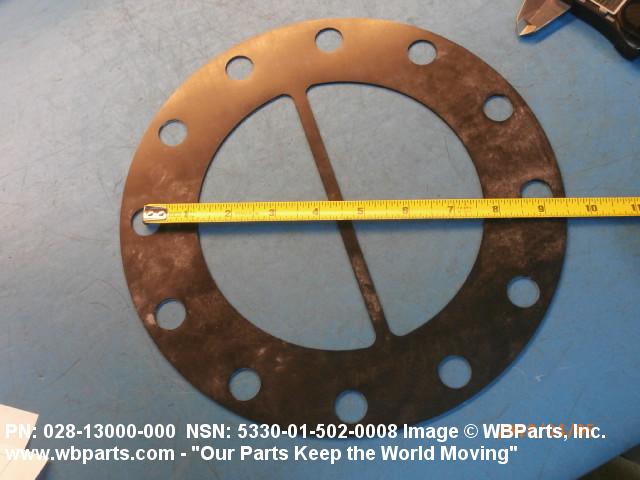

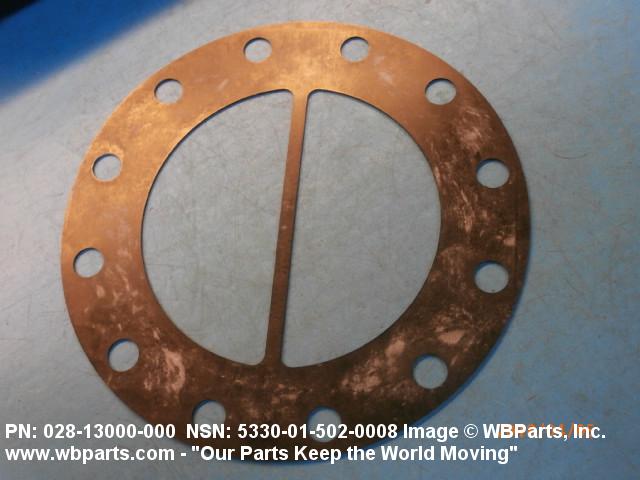

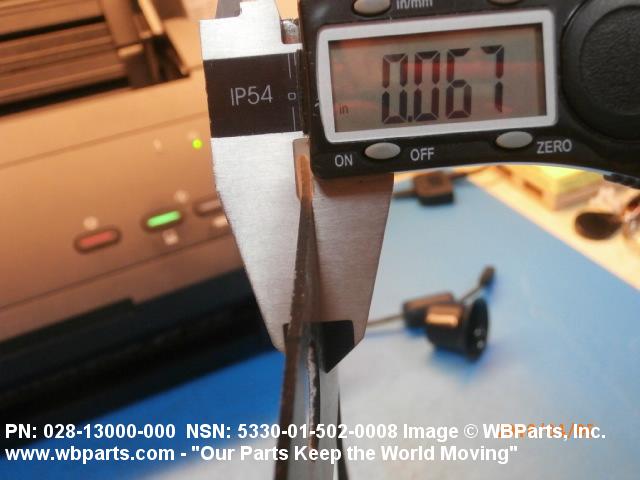

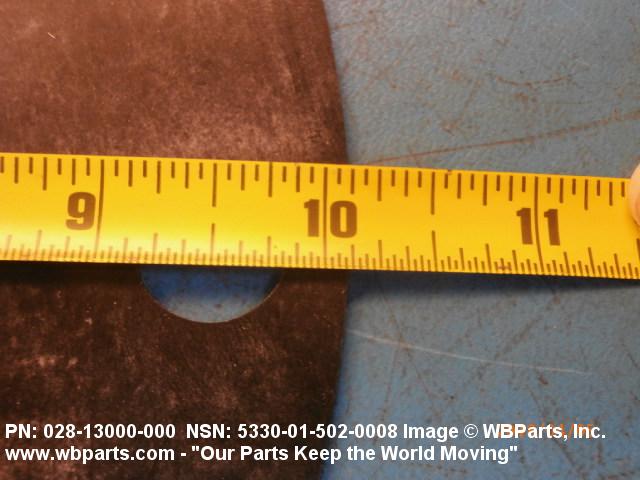

Drawings & Photos | NSN 5330-01-502-0008
Demand History | NSN 5330-01-502-0008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 028-13000-000 | 2024-06-165 | 146 | DIBBS |
| 028-13000-000 | 2023-01-26 | 59 | DIBBS |
| 028-13000-000 | 2021-10-280 | 51 | DIBBS |
| 028-13000-000 | 2021-05-126 | 49 | DIBBS |
| 5330-01-502-0008 | 2018-05-150 | 60 | DIBBS |
| 5330-01-502-0008 | 2018-03-75 | 2 | us |
| 5330-01-502-0008 | 2018-03-75 | 4 | us |
| 5330-01-502-0008 | 2017-10-278 | 18 | DIBBS |
| 5330-01-502-0008 | 2017-09-270 | 18 | DIBBS |
| 5330-01-502-0008 | 2013-11-310 | 40 | DIBBS |
| 5330-01-502-0008 | 2013-10-275 | 19 | DIBBS |
| 5330-01-502-0008 | 2013-07-189 | 10 | DIBBS |
| 5330-01-502-0008 | 2013-07-184 | 3 | DIBBS |
| 5330-01-502-0008 | 2013-05-129 | 4 | DIBBS |
| 5330-01-502-0008 | 2013-05-122 | 5 | DIBBS |
| 5330-01-502-0008 | 2013-05-121 | 4 | DIBBS |
| 5330-01-502-0008 | 2013-01-25 | 1 | DIBBS |
| 5330-01-502-0008 | 2012-11-334 | 2 | DIBBS |
Cross Reference | NSN 5330-01-502-0008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 028-13000-000 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-502-0008
Technical Data | NSN 5330-01-502-0008
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |
| STYLE DESIGNATOR | B24 CIRCULAR |

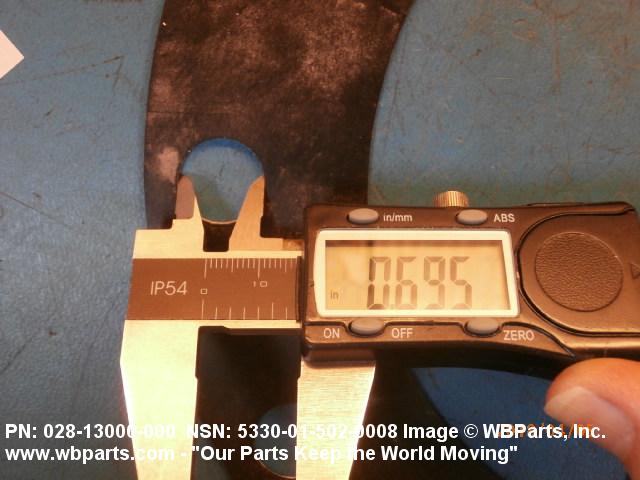

| HOLE DIAMETER | 0.690 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 8.875 INCHES NOMINAL |
| OUTSIDE DIAMETER | 10.120 INCHES NOMINAL |

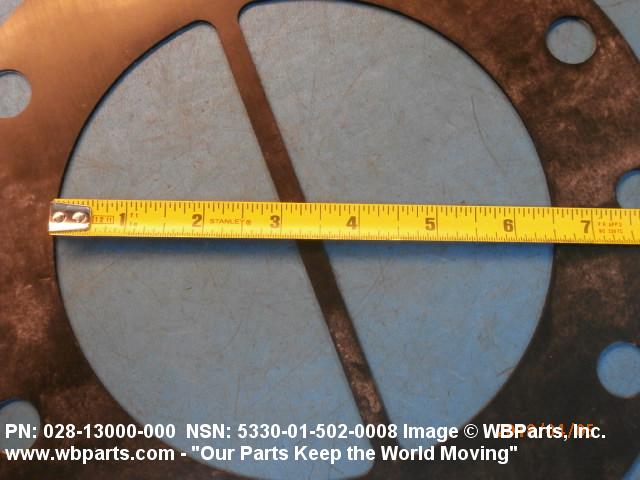

| APERTURE DIAMETER | 6.500 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 12 |
| SPECIAL FEATURES | HAS A STRIP OF RUBBER 0.310IN ACROSS THE DIAMETER;4 CORNER WHERE STRIP JOINS I.D. SIDE HAS A RADIUS OF 0.25 ON EITHER SIDE IF STRIP |
| III END ITEM IDENTIFICATION | MACHALT ECP-5 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET HEAD 2-PASSAGES |
Restrictions/Controls & Freight Information | NSN 5330-01-502-0008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-502-0008
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
