Product Details | GASKET

5330-01-514-9279 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: G138113B, G-1381-13B, 90-236 ITEM 58, 90236ITEM58, 5330-01-514-9279, 01-514-9279, 5330015149279, 015149279

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 10 NOV 2003 01-514-9279

Drawings & Photos | NSN 5330-01-514-9279


Demand History | NSN 5330-01-514-9279

Part Number Request Date QTY Origin
5330-01-514-9279 2014-03-61 33 DIBBS
5330-01-514-9279 2013-06-164 11 DIBBS

Cross Reference | NSN 5330-01-514-9279

Part Number Cage Code Manufacturer
90-236 ITEM 58 28199 L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
G-1381-13B 28199 L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-514-9279

Technical Data | NSN 5330-01-514-9279

Characteristic Specifications

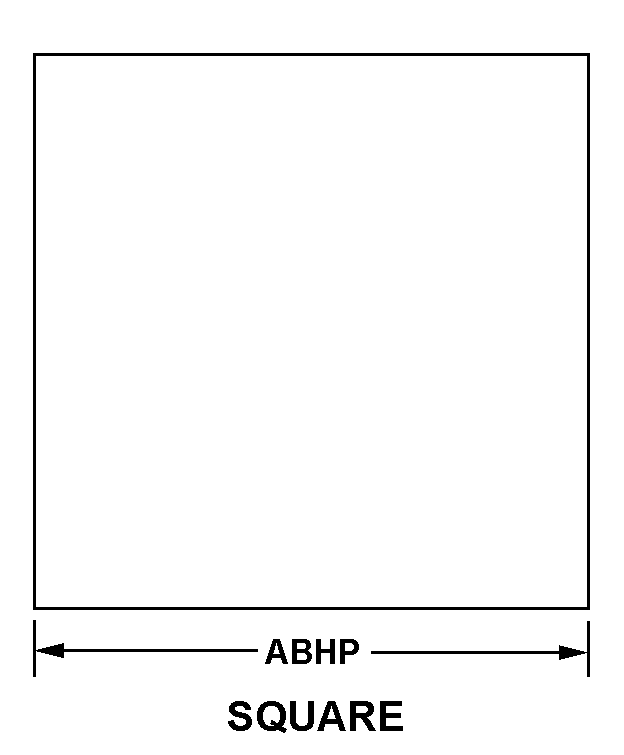

STYLE DESIGNATOR B29 SQUARE
OVERALL LENGTH 1.100 INCHES NOMINAL
SPECIAL FEATURES 0.060 IN. THICK
III END ITEM IDENTIFICATION CABLE ASSEMBLY W906

Restrictions/Controls & Freight Information | NSN 5330-01-514-9279

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 194120 WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 596 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5330-01-514-9279

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
