NSN 5330-00-824-3293 683204, 00-824-3293, 008243293
Product Details | COUPLER SEAL SLEEVE
5330-00-824-3293 A cylindrical shaped item constructed of pliable nonmetallic solid or laminated materials. It is designed to fit around flanged or beaded end tubing, ducts, piping, and the like, to form a tight and effective seal against gases and liquids; when compressed with a clamp. For items used to convey air under low pressure, see HOSE, AIR DUCT. Excludes PACKING, PREFORMED; TUBING, NONMETALLIC; and BUSHING, RUBBER.
Part Alternates: 683204, 5330-00-824-3293, 00-824-3293, 5330008243293, 008243293
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 AUG 1967 | 00-824-3293 | 20780 ( SLEEVE, SEAL, COUPLER ) |

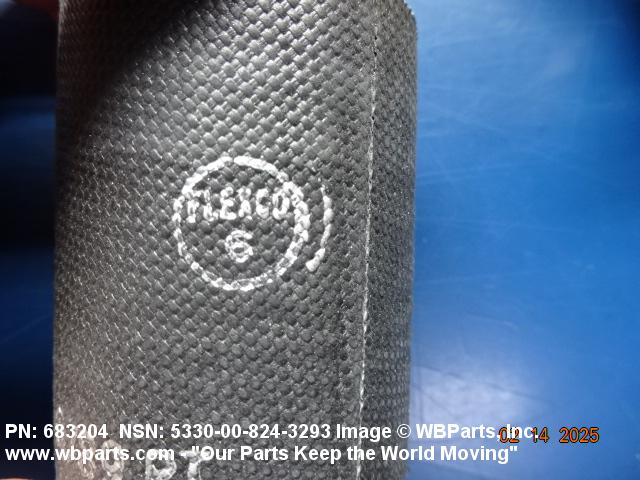

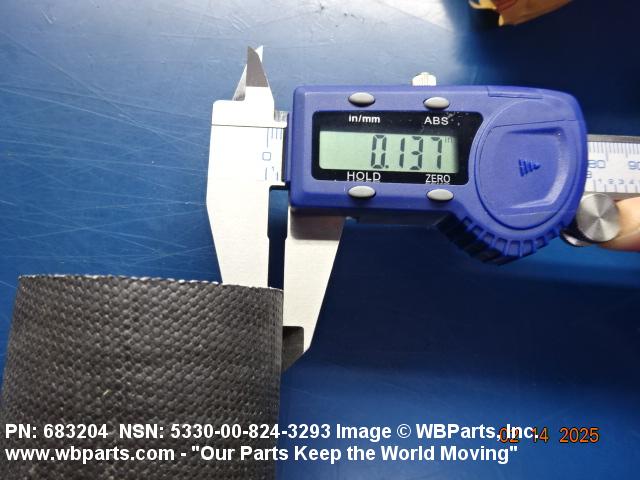

Drawings & Photos | NSN 5330-00-824-3293
Demand History | NSN 5330-00-824-3293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-824-3293 | 2016-01-26 | 26 | DIBBS |
| 5330-00-824-3293 | 2016-01-06 | 26 | DIBBS |
| 5330-00-824-3293 | 2015-11-314 | 31 | DIBBS |
| 5330-00-824-3293 | 2015-10-302 | 31 | DIBBS |
| 5330-00-824-3293 | 2015-07-210 | 31 | DIBBS |
| 5330-00-824-3293 | 2013-06-175 | 40 | DIBBS |
| 5330-00-824-3293 | 2010-04-119 | 5 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-824-3293
Related Products | NSN 5330-00-824-3293
Technical Data | NSN 5330-00-824-3293
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | 1 SPHERICAL |

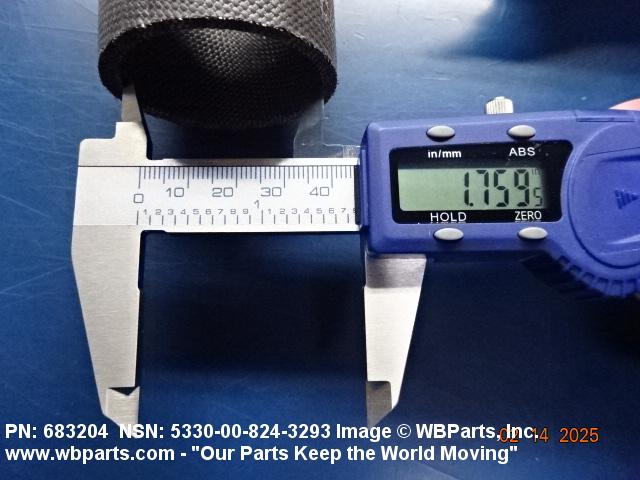

| CROSS SECTION INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 1.990 INCHES NOMINAL |

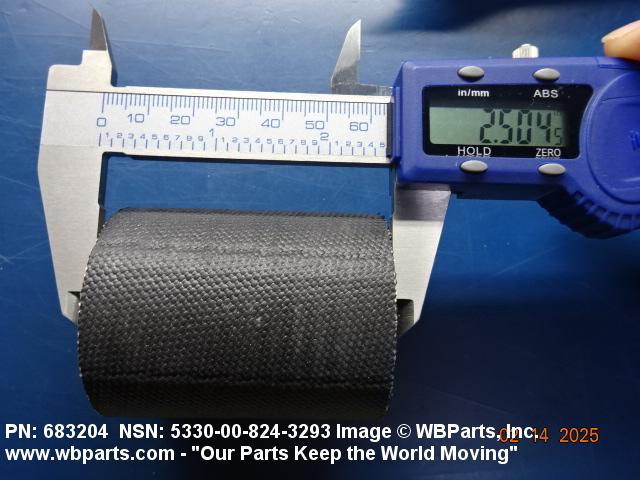

| CROSS-SECTIONAL LENGTH | 2.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 683204 |
Restrictions/Controls & Freight Information | NSN 5330-00-824-3293
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051820 | PIPE R TUBING ALUM NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-824-3293
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TP | SX:"TEMPERATURE AND PRESSURE CONTROLS, AIRCRAFT" |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
