NSN 5330-01-284-3004 AD11993621, AD1199-36-21, 01-284-3004
Product Details | COUPLER SEAL SLEEVE
5330-01-284-3004 A cylindrical shaped item constructed of pliable nonmetallic solid or laminated materials. It is designed to fit around flanged or beaded end tubing, ducts, piping, and the like, to form a tight and effective seal against gases and liquids; when compressed with a clamp. For items used to convey air under low pressure, see HOSE, AIR DUCT. Excludes PACKING, PREFORMED; TUBING, NONMETALLIC; and BUSHING, RUBBER.
Part Alternates: AD11993621, AD1199-36-21, 5330-01-284-3004, 01-284-3004, 5330012843004, 012843004
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 AUG 1988 | 01-284-3004 | 20780 ( SLEEVE, SEAL, COUPLER ) |

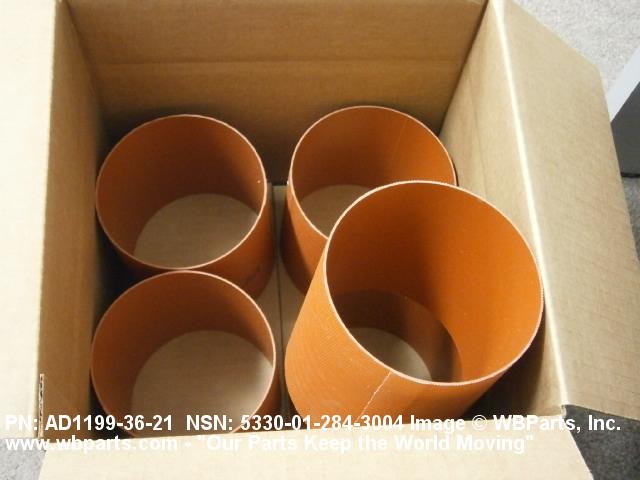

Drawings & Photos | NSN 5330-01-284-3004
Demand History | NSN 5330-01-284-3004
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-284-3004 | 2018-07-196 | 10 | DIBBS |
| 5330-01-284-3004 | 2018-05-128 | 3 | DIBBS |
| 5330-01-284-3004 | 2018-01-16 | 1 | DIBBS |
| 5330-01-284-3004 | 2017-12-353 | 1 | DIBBS |
| 5330-01-284-3004 | 2017-12-346 | 1 | DIBBS |
| 5330-01-284-3004 | 2011-11-313 | 2 | United States |
| 5330-01-284-3004 | 2011-10-290 | 5 | US |
| 5330-01-284-3004 | 2011-09-264 | 1 | DIBBS |
| 5330-01-284-3004 | 2011-09-264 | 2 | DIBBS |
| 5330-01-284-3004 | 2011-07-183 | 2 | DIBBS |
| 5330-01-284-3004 | 2010-08-224 | 1 | DIBBS |
| 5330-01-284-3004 | 2009-03-69 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-284-3004
Related Products | NSN 5330-01-284-3004
Technical Data | NSN 5330-01-284-3004
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | 1 SPHERICAL |
| CROSS SECTION INSIDE DIAMETER | 4.500 INCHES NOMINAL |
| CROSS-SECTIONAL LENGTH | 5.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-284-3004
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-284-3004
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
