NSN 5330-01-131-0760 232-30751-1, 01-131-0760, 232307511

Product Details | COUPLER SEAL SLEEVE

5330-01-131-0760 A cylindrical shaped item constructed of pliable nonmetallic solid or laminated materials. It is designed to fit around flanged or beaded end tubing, ducts, piping, and the like, to form a tight and effective seal against gases and liquids; when compressed with a clamp. For items used to convey air under low pressure, see HOSE, AIR DUCT. Excludes PACKING, PREFORMED; TUBING, NONMETALLIC; and BUSHING, RUBBER.

Part Alternates: 232-30751-1, 5330-01-131-0760, 01-131-0760, 5330011310760, 232307511, 011310760

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 MAY 1982	01-131-0760	20780 ( SLEEVE, SEAL, COUPLER )

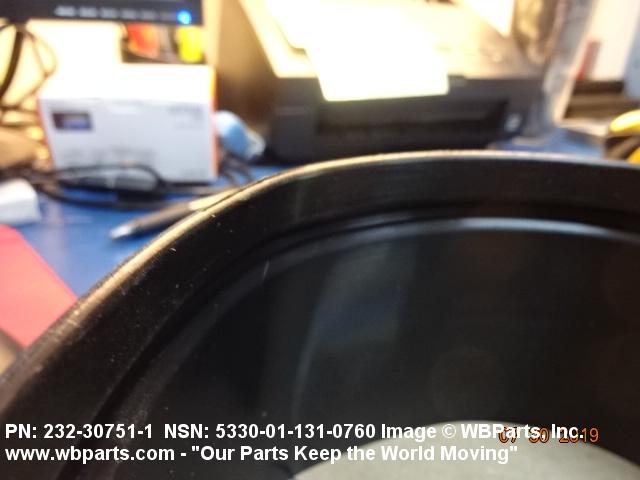

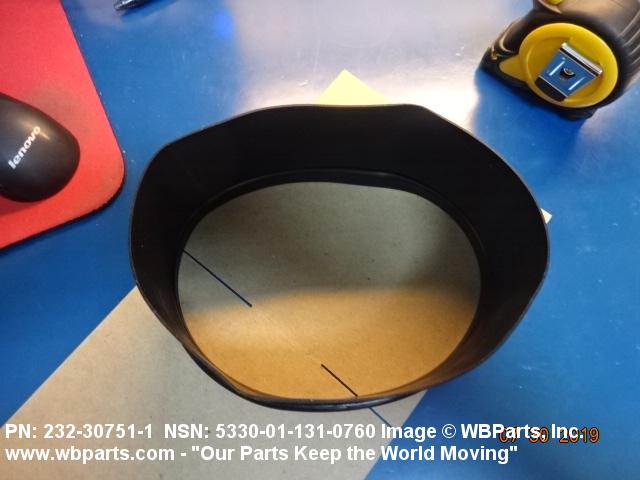

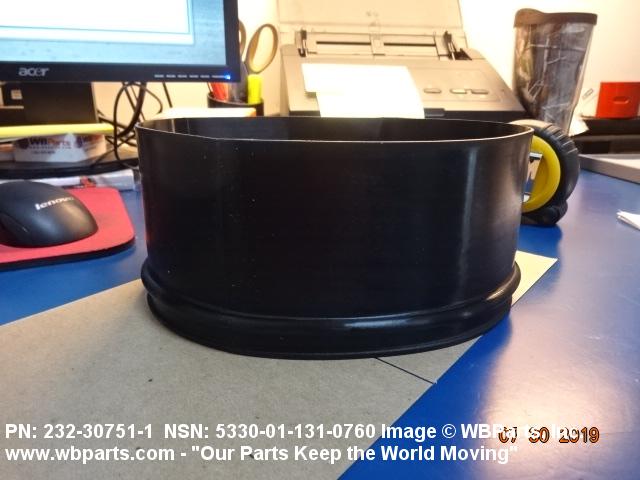

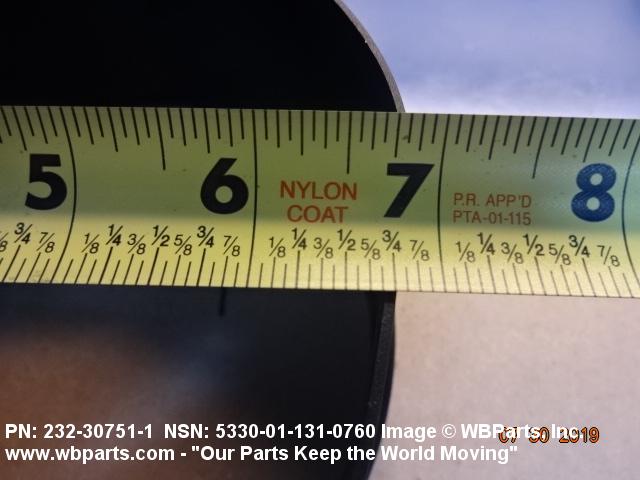

Drawings & Photos | NSN 5330-01-131-0760

Part Number	Request Date	QTY	Origin
5330-01-131-0760	2021-05-131	32	DIBBS
5330-01-131-0760	2021-04-118	32	DIBBS
5330-01-131-0760	2019-01-17	500	United States
5330-01-131-0760	2018-12-343	500	DIBBS
5330-01-131-0760	2018-11-312	241	DIBBS
5330-01-131-0760	2018-08-224	268	DIBBS
5330-01-131-0760	2018-08-214	268	DIBBS
5330-01-131-0760	2018-04-95	275	DIBBS
5330-01-131-0760	2018-03-87	275	DIBBS
5330-01-131-0760	2017-09-272	275	DIBBS
5330-01-131-0760	2017-09-264	275	DIBBS
5330-01-131-0760	2017-07-188	275	DIBBS
5330-01-131-0760	2017-06-180	275	DIBBS
5330-01-131-0760	2014-08-215	229	DIBBS
5330-01-131-0760	2014-06-172	102	DIBBS
5330-01-131-0760	2014-03-89	102	DIBBS

Cross Reference | NSN 5330-01-131-0760

Part Number	Cage Code	Manufacturer
232-30751-1	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-131-0760

Compare

Related Products | NSN 5330-01-131-0760

5330-01-131-0761, 5330-01-131-0857, 5330-01-131-1497, 5330-01-131-1498, 5330-01-131-1508

Technical Data | NSN 5330-01-131-0760

Characteristic	Specifications
MATERIAL	RUBBER SYNTHETIC OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ZZ-R-765 CL 3 GR 50 FED SPEC SINGLE MATERIAL RESPONSE OVERALL

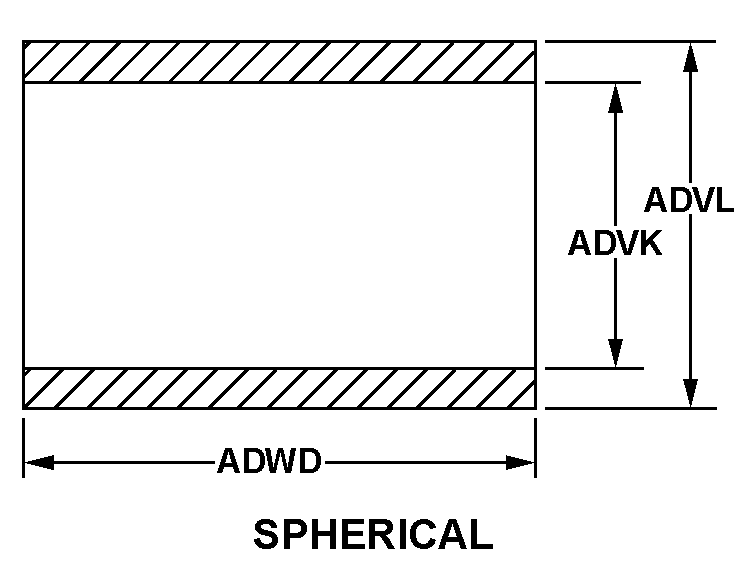

CROSS-SECTIONAL SHAPE STYLE	1 SPHERICAL

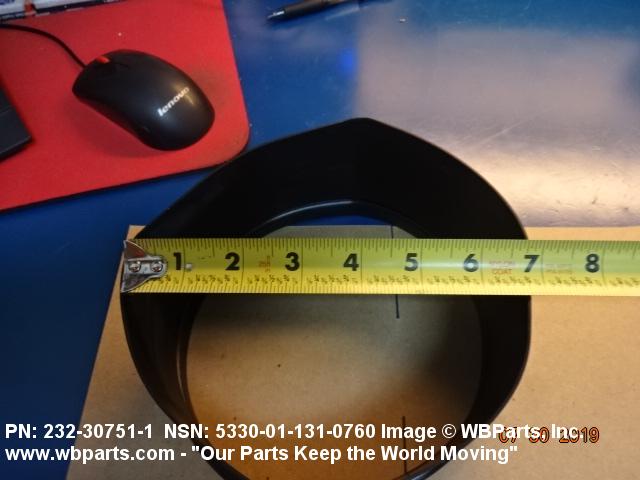

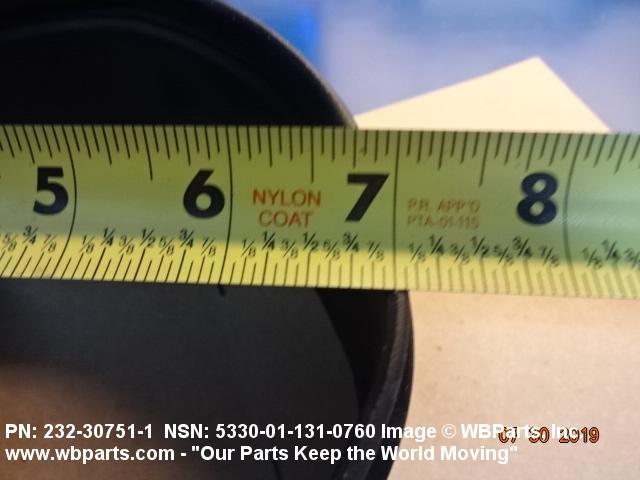

CROSS SECTION INSIDE DIAMETER	6.754 INCHES MINIMUM AND 6.800 INCHES MAXIMUM
CROSS SECTION OUTSIDE DIAMETER	7.055 INCHES NOMINAL

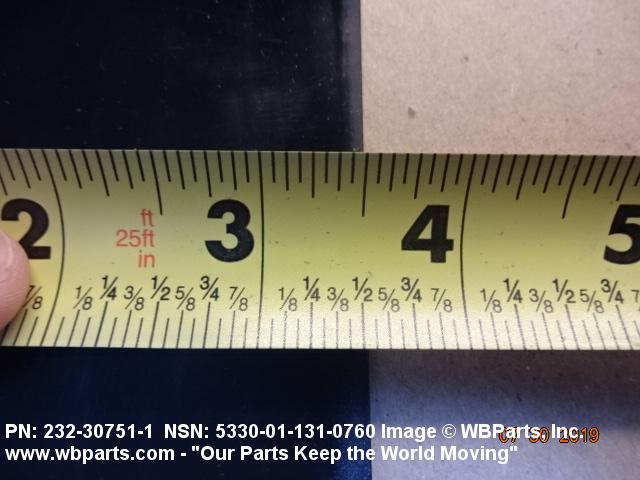

CROSS-SECTIONAL LENGTH	3.497 INCHES MINIMUM AND 3.503 INCHES MAXIMUM

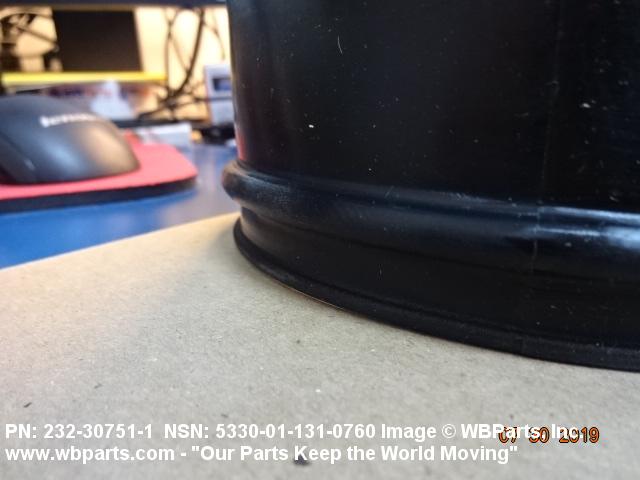

SPECIAL FEATURES	BEADED 0.600IN. FROM END
MANUFACTURERS CODE	81205
DESIGN CONTROL REFERENCE	232-30751-1

Restrictions/Controls & Freight Information | NSN 5330-01-131-0760

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194050	GASKETS/RINGS PLUMBING FIXTURES
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	596	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-131-0760

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GF	SX:AGM-86 AIR LAUNCHED CRUISE MISSILE (ALCM)
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
