NSN 5330-00-514-3427 VG1000400C, VG1000-400C, VG1000400CN

Product Details | GASKET

5330-00-514-3427 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: VG1000400C, VG1000-400C, VG1000400CN, VG1000-400CN, 24346400C, 24346-400C, 417400C, 417-400C, 8031400C, 8031-400C, 5330-00-514-3427, 00-514-3427, 5330005143427, 005143427

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-514-3427	04522 ( GASKET )

Drawings & Photos | NSN 5330-00-514-3427

Part Number	Request Date	QTY	Origin
24346-400C	2024-10-277	77	DIBBS
417-400C	2024-10-277	77	DIBBS
8031-400C	2024-10-277	77	DIBBS
VG1000-400CN	2024-10-277	77	DIBBS
24346-400C	2024-09-253	244	DIBBS
417-400C	2024-09-253	244	DIBBS
8031-400C	2024-09-253	244	DIBBS
VG1000-400CN	2024-09-253	244	DIBBS
24346-400C	2024-05-144	244	DIBBS
417-400C	2024-05-144	244	DIBBS
8031-400C	2024-05-144	244	DIBBS
VG1000-400CN	2024-05-144	244	DIBBS
24346400C	2023-08-241	10	United States
24346-400C	2023-08-240	753	DIBBS
417-400C	2023-08-240	753	DIBBS
8031-400C	2023-08-240	753	DIBBS
VG1000-400CN	2023-08-240	753	DIBBS
24346-400C	2023-08-229	753	DIBBS
417-400C	2023-08-229	753	DIBBS
8031-400C	2023-08-229	753	DIBBS
VG1000-400CN	2023-08-229	753	DIBBS
24346-400C	2023-04-107	547	DIBBS
417-400C	2023-04-107	547	DIBBS
8031-400C	2023-04-107	547	DIBBS
VG1000-400CN	2023-04-107	547	DIBBS
5330-00-514-3427	2023-04-103	140	United States
24346-400C	2023-04-96	547	DIBBS
417-400C	2023-04-96	547	DIBBS
8031-400C	2023-04-96	547	DIBBS
VG1000-400CN	2023-04-96	547	DIBBS
5330-00-514-3427	2022-08-234	229	Malaysia
24346-400C	2022-07-192	606	DIBBS
417-400C	2022-07-192	606	DIBBS
8031-400C	2022-07-192	606	DIBBS
VG1000-400CN	2022-07-192	606	DIBBS
24346-400C	2022-06-181	606	DIBBS
417-400C	2022-06-181	606	DIBBS
8031-400C	2022-06-181	606	DIBBS
VG1000-400CN	2022-06-181	606	DIBBS
24346-400C	2022-04-101	434	DIBBS
417-400C	2022-04-101	434	DIBBS
8031-400C	2022-04-101	434	DIBBS
VG1000-400CN	2022-04-101	434	DIBBS
24346400C	2021-09-271	611	Malaysia
5330-00-514-3427	2021-09-267	611	Malaysia
24346400C	2021-09-259	300	ID
5330-00-514-3427	2021-05-133	30	Malaysia
24346400C	2021-05-132	30	Malaysia
5330-00-514-3427	2021-05-129	50	Malaysia
24346400C	2021-05-123	28	Malaysia
24346400C	2021-05-123	30	Malaysia
5330-00-514-3427	2019-02-50	1	DIBBS-RFPs
5330-00-514-3427	2018-05-140	1454	DIBBS
5330-00-514-3427	2018-05-130	1454	DIBBS
5330-00-514-3427	2017-01-26	576	DIBBS
5330-00-514-3427	2016-08-235	2	United States
24346400C	2015-12-345	69	Malaysia
5330-00-514-3427	2013-07-210	1	DIBBS-RFPs
5330-00-514-3427	2013-07-199	1	DIBBS-RFPs
5330-00-514-3427	2011-08-223	2100	DIBBS
5330-00-514-3427	2011-06-155	664	DIBBS
5330-00-514-3427	2011-04-101	286	DIBBS
5330-00-514-3427	2011-04-91	260	DIBBS
5330-00-514-3427	2010-12-343	438	DIBBS
5330-00-514-3427	2010-10-292	677	DIBBS
5330-00-514-3427	2010-09-264	20	Portugal
5330-00-514-3427	2010-07-183	494	DIBBS
5330-00-514-3427	2010-06-169	1	US
5330-00-514-3427	2010-02-53	205	DIBBS
5330-00-514-3427	2009-11-324	1101	DIBBS
5330-00-514-3427	2009-08-236	35	US
5330-00-514-3427	2009-07-211	1188	DIBBS
5330-00-514-3427	2009-07-202	1200	DIBBS
5330-00-514-3427	2009-06-152	568	DIBBS
5330-00-514-3427	2009-05-125	210	DIBBS
5330-00-514-3427	2009-03-89	1200	DIBBS
24346400C	2008-06-172	100	Indonesia
5330-00-514-3427	2008-04-105	3427	DIBBS
5330-00-514-3427	2008-03-78	2000	DIBBS

Cross Reference | NSN 5330-00-514-3427

Part Number	Cage Code	Manufacturer
24346-400C	00624	EATON CORPORATION DBA AEROSPACE DIV
24346-400C	R1120	SATAIR A/S
417-400C	61102	ARKEMA INC
417-400C	94581	V I J CORPORATION DBA NUCO
8031-400C	61507	STONE AND COMPANY
VG1000-400C	14242	VOSS INDUSTRIES, INC.
VG1000-400CN	14242	VOSS INDUSTRIES, INC.
VG1000-400CN	8X044	DERCO AEROSPACE, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-514-3427

Compare

Related Products | NSN 5330-00-514-3427

5330-00-514-3428, 5330-00-514-3429, 5330-00-514-3448, 5330-00-514-3456, 5330-00-514-3458

Technical Data | NSN 5330-00-514-3427

Characteristic	Specifications
MATERIAL	COPPER ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	NICKEL OVERALL
HARDNESS RATING	100.0 ROCKWELL E NOMINAL OVERALL

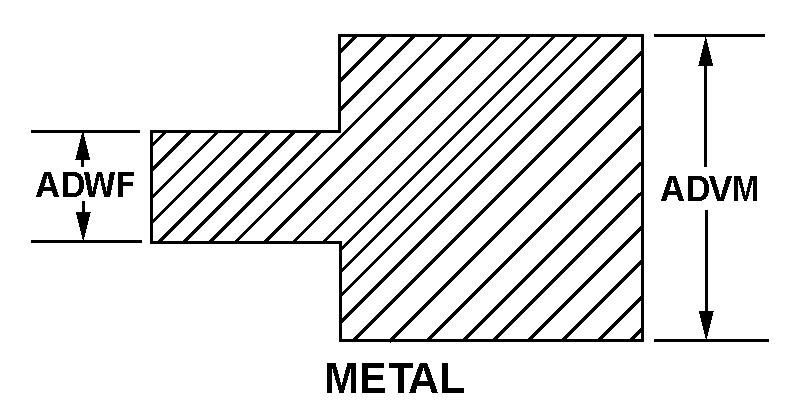

CROSS-SECTIONAL SHAPE STYLE	F55 METAL
