NSN 5330-00-514-3429 VG1000250C, VG1000-250C, VG1000250CN
Product Details | GASKET
5330-00-514-3429 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: VG1000250C, VG1000-250C, VG1000250CN, VG1000-250CN, 24346250C, 24346-250C, 417250C, 417-250C, 8031250C, 8031-250C, 5330-00-514-3429, 00-514-3429, 5330005143429, 005143429
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-514-3429 | 04522 ( GASKET ) |

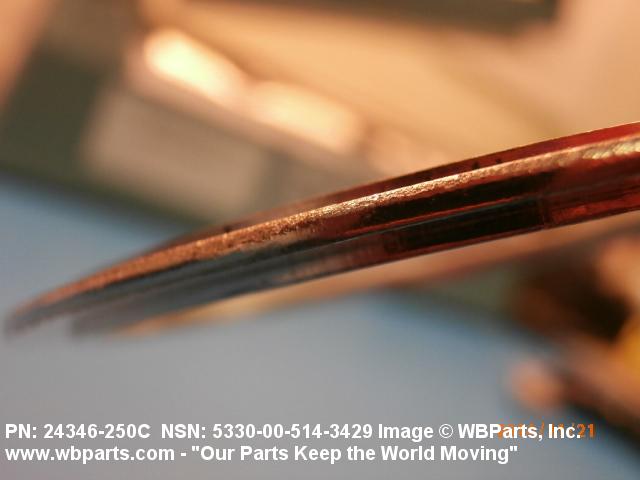

Drawings & Photos | NSN 5330-00-514-3429
Demand History | NSN 5330-00-514-3429
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 417250C | 2024-07-213 | 15 | Japan |
| 5330-00-514-3429 | 2024-07-197 | 4 | Philippines |
| 5330-00-514-3429 | 2024-05-136 | 162 | Malaysia |
| 5330-00-514-3429 | 2023-08-226 | 20 | US |
| 5330-00-514-3429 | 2021-10-294 | 140 | Malaysia |
| 5330-00-514-3429 | 2021-09-267 | 140 | Malaysia |
| 5330-00-514-3429 | 2021-09-267 | 140 | Malaysia |
| 24346250C | 2021-09-259 | 300 | ID |
| 5330-00-514-3429 | 2021-05-139 | 50 | South Africa |
| 5330-00-514-3429 | 2016-08-235 | 10 | United States |
| 5330-00-514-3429 | 2016-08-229 | 2190 | DIBBS |
| 24346250C | 2015-12-343 | 14 | US |
| 5330-00-514-3429 | 2015-12-340 | 5038 | DIBBS |
| 5330-00-514-3429 | 2014-12-342 | 6000 | DIBBS |
| 24346250C | 2014-11-322 | 8 | United States |
| 5330-00-514-3429 | 2014-11-306 | 444 | DIBBS |
| 5330-00-514-3429 | 2014-08-235 | 5000 | DIBBS |
| 5330-00-514-3429 | 2014-08-223 | 6 | DIBBS |
| 5330-00-514-3429 | 2014-06-174 | 2000 | DIBBS |
| 5330-00-514-3429 | 2014-05-149 | 683 | DIBBS |
| 5330-00-514-3429 | 2014-05-138 | 683 | DIBBS |
| 5330-00-514-3429 | 2013-07-210 | 1 | DIBBS-RFPs |
| 5330-00-514-3429 | 2013-07-199 | 1 | DIBBS-RFPs |
| 5330-00-514-3429 | 2012-10-290 | 1 | United States |
| 5330-00-514-3429 | 2012-04-116 | 1920 | DIBBS |
| 5330-00-514-3429 | 2012-03-83 | 921 | DIBBS |
| 5330-00-514-3429 | 2012-02-55 | 597 | DIBBS |
| 5330-00-514-3429 | 2011-09-250 | 2600 | DIBBS |
| 5330-00-514-3429 | 2011-06-155 | 610 | DIBBS |
| 5330-00-514-3429 | 2011-04-108 | 488 | DIBBS |
| 5330-00-514-3429 | 2010-12-361 | 344 | DIBBS |
| 5330-00-514-3429 | 2010-10-301 | 411 | DIBBS |
| 5330-00-514-3429 | 2010-09-250 | 720 | DIBBS |
| 5330-00-514-3429 | 2010-08-231 | 720 | DIBBS |
| 5330-00-514-3429 | 2010-05-123 | 100 | Indonesia |
| 5330-00-514-3429 | 2010-04-113 | 845 | DIBBS |
| 5330-00-514-3429 | 2010-02-40 | 411 | DIBBS |
| 24346250C | 2009-08-216 | 4 | United States |
| 24346250C | 2008-06-172 | 100 | Indonesia |
| 5330-00-514-3429 | 2008-01-21 | 10 | United States |
| 5330-00-514-3429 | 2006-10-295 | 2 | Turkey |
| 5330-00-514-3429 | 2006-10-294 | 2 | Turkey |
| 5330-00-514-3429 | 2006-10-294 | 2 | Turkey |
Cross Reference | NSN 5330-00-514-3429
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24346-250C | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 24346-250C | R1120 | SATAIR A/S |
| 417-250C | 94581 | V I J CORPORATION DBA NUCO |
| 8031-250C | 61507 | STONE AND COMPANY |
| VG1000-250C | 14242 | VOSS INDUSTRIES, INC. |
| VG1000-250CN | 14242 | VOSS INDUSTRIES, INC. |
| VG1000-250CN | 8X044 | DERCO AEROSPACE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-514-3429
Related Products | NSN 5330-00-514-3429
Technical Data | NSN 5330-00-514-3429
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| HARDNESS RATING | 100.0 ROCKWELL E NOMINAL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F55 METAL |
| CROSS-SECTIONAL THICKNESS | 0.142 INCHES MINIMUM AND 0.161 INCHES MAXIMUM |
| GAGE RING THICKNESS | 0.065 INCHES NOMINAL |
| STYLE DESIGNATOR | B8 CIRCULAR |
| OUTSIDE DIAMETER | 2.828 INCHES MINIMUM AND 2.838 INCHES MAXIMUM |
| APERTURE DIAMETER | 2.649 INCHES MINIMUM AND 2.679 INCHES MAXIMUM |
| BEARING SURFACE WIDTH | 0.085 INCHES NOMINAL |
| GAGE RING OUTSIDE DIAMETER | 3.085 INCHES MINIMUM AND 3.242 INCHES MAXIMUM |
| III TEMP RATING | 800.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 5330-00-514-3429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
