NSN 5330-00-342-7320 501200, 501-200, 00-342-7320
Product Details | COUPLER SEAL SLEEVE
5330-00-342-7320 A cylindrical shaped item constructed of pliable nonmetallic solid or laminated materials. It is designed to fit around flanged or beaded end tubing, ducts, piping, and the like, to form a tight and effective seal against gases and liquids; when compressed with a clamp. For items used to convey air under low pressure, see HOSE, AIR DUCT. Excludes PACKING, PREFORMED; TUBING, NONMETALLIC; and BUSHING, RUBBER.
Part Alternates: 501200, 501-200, 5330-00-342-7320, 00-342-7320, 5330003427320, 003427320
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-342-7320 | 20780 ( SLEEVE, SEAL, COUPLER ) |
Drawings & Photos | NSN 5330-00-342-7320
Demand History | NSN 5330-00-342-7320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 501-200 | 2022-06-173 | 56 | DIBBS |
| 5330-00-342-7320 | 2014-08-218 | 110 | DIBBS |
| 5330003427320 | 2012-01-30 | 10 | AE |
| 5330-00-342-7320 | 2011-11-307 | 51 | DIBBS |
| 5330-00-342-7320 | 2011-08-235 | 12 | DIBBS |
| 5330-00-342-7320 | 2009-04-105 | 22 | DIBBS |
Cross Reference | NSN 5330-00-342-7320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 501-200 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-342-7320
Related Products | NSN 5330-00-342-7320
Technical Data | NSN 5330-00-342-7320
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3202 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

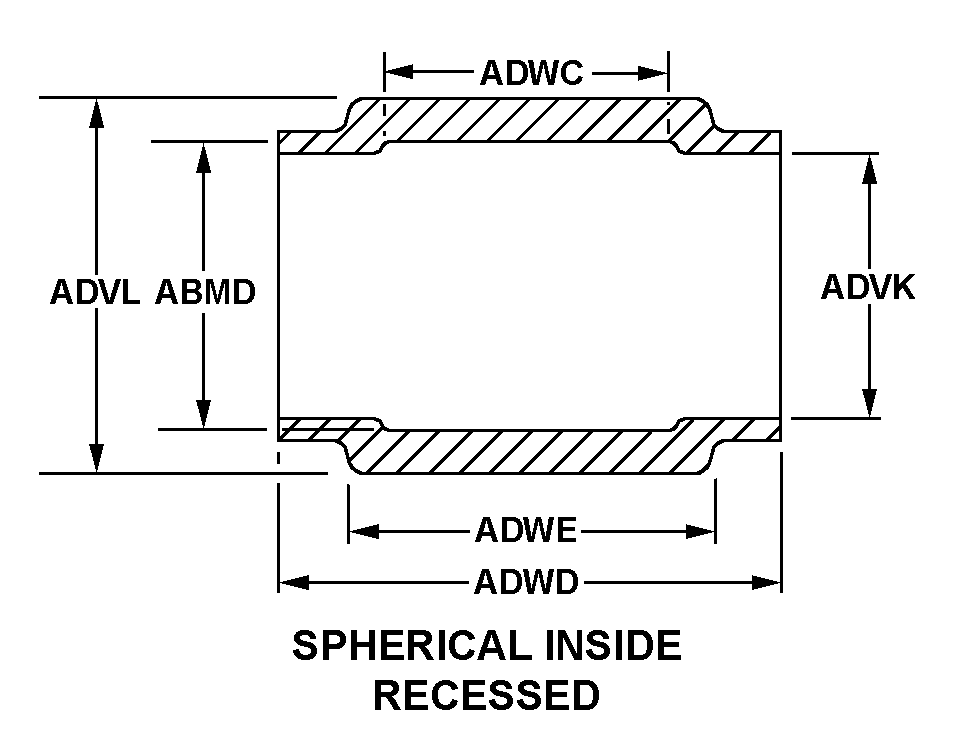

| CROSS-SECTIONAL SHAPE STYLE | 2 SPHERICAL INSIDE RECESSED |
| RECESS DIAMETER | 2.124 INCHES NOMINAL |
| RECESS LENGTH | 0.875 INCHES NOMINAL |
| CROSS SECTION INSIDE DIAMETER | 2.000 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 2.414 INCHES NOMINAL |
| RAISED DIAMETER LENGTH | 1.125 INCHES NOMINAL |
| CROSS-SECTIONAL LENGTH | 1.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | 501-200 |
Restrictions/Controls & Freight Information | NSN 5330-00-342-7320
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-342-7320
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
