Product Details | TURNLOCK FASTENER ASSEMBLY

5325-01-630-6026 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.

Part Alternates: CA1810 , 5325-01-630-6026, 01-630-6026, 5325016306026, 016306026

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 2014223 01-630-6026

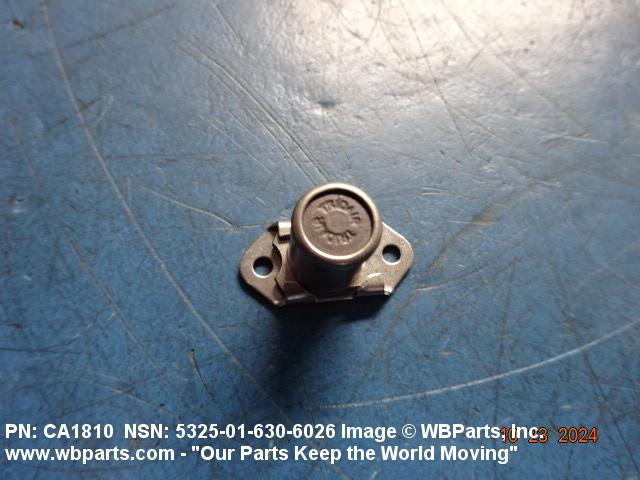

Drawings & Photos | NSN 5325-01-630-6026


Demand History | NSN 5325-01-630-6026

Part Number Request Date QTY Origin
5325-01-630-6026 2024-10-295 4 us
CA1810 2024-04-103 5000 US
5325-01-630-6026 2023-02-47 100 US
CA1810 2020-09-248 22 United States
CA1810 2020-03-91 40 United States
CA1810 2020-03-75 12 DIBBS
CA1810 2012-12-348 25 United States
CA1810 2012-10-284 8 United States
CA1810 2012-05-135 135 United States
CA1810 2011-08-222 200 US
CA1810 2008-06-154 50 United States
CA1810 2008-03-63 21 IL
CA1810 2006-07-186 1000 PT
CA1810 2006-05-138 100 United States

Cross Reference | NSN 5325-01-630-6026

Part Number Cage Code Manufacturer
CA1810 5R793 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-630-6026

Technical Data | NSN 5325-01-630-6026

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM 5731 ASSN STD SINGLE MATERIAL RESPONSE OR
SURFACE TREATMENT PASSIVATE HOUSING
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION ASTMM A967 ASSN STD SINGLE TREATMENT RESPONSE HOUSING
TURNLOCK STUD SHANK STYLE STUD SHANK
TURNLOCK RECEPTACLE STYLE FLOATING RECEPTACLE
III PART NAME ASSIGNED BY CONTROLLING AGENCY CA1810 SERIES LIVELOCK RECEPTACLE ASSEMBLY-FLOATING,2-LUG

Restrictions/Controls & Freight Information | NSN 5325-01-630-6026

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093490 BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 573 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-01-630-6026

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
