NSN 5325-01-539-5925 MS177311, MS17731-1, 01-539-5925
Product Details | TURNLOCK FASTENER ASSEMBLY

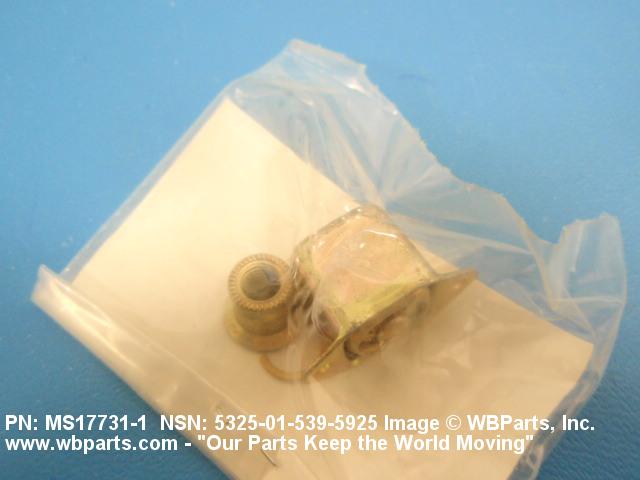

5325-01-539-5925 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.
Part Alternates: MS177311, MS17731-1, 5325-01-539-5925, 01-539-5925, 5325015395925, 015395925
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 26 APR 2006 | 01-539-5925 | 61968 ( FASTENER ASSEMBLY, TURNLOCK ) |
Demand History | NSN 5325-01-539-5925
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS17731-1 | 2013-08-229 | 20 | Canada |
MS177311 | 2009-03-76 | 100 | United States |
MS177311 | 2009-02-49 | 25 | United States |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-539-5925
Related Products | NSN 5325-01-539-5925
Technical Data | NSN 5325-01-539-5925
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | CADMIUM OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 2, CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
TURNLOCK STUD SHANK STYLE | 15 STUD SHANK |
GRIP LENGTH | 0.590 INCHES MINIMUM AND 0.710 INCHES MAXIMUM |
STUD SHANK MAJOR DIAMETER | 0.373 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |
DIAMETER | 0.525 INCHES MAXIMUM |
TURNLOCK RECEPTACLE STYLE | 31 RECEPTACLE |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.875 INCHES NOMINAL |
RECEPTACLE OVERALL LENGTH | 1.135 INCHES MAXIMUM |
RECEPTACLE HEIGHT | 0.625 INCHES MAXIMUM |
RECEPTACLE WIDTH | 0.625 INCHES MAXIMUM |
MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
DRIVE TYPE | CROSS RECESS |
MATERIAL ACCOMMODATED THICKNESS | 0.150 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-01-539-5925
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
