NSN 5325-00-832-5772 MS177326, MS17732-6, FX1015566
Product Details | TURNLOCK FASTENER ASSEMBLY

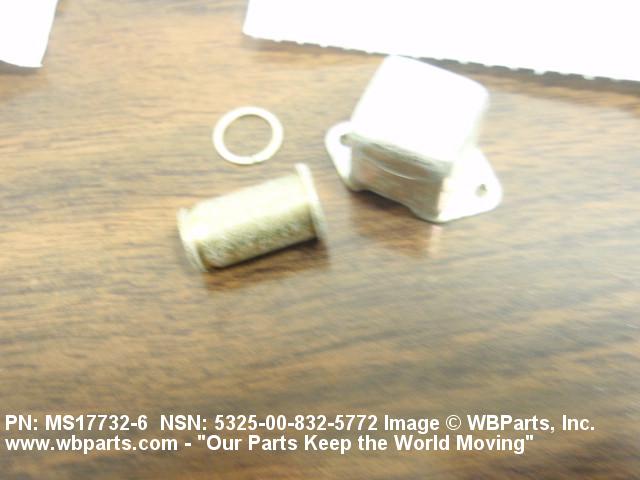

5325-00-832-5772 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.
Part Alternates: MS177326, MS17732-6, FX1015566, FX10-1556-6, FX1015566P, FX10-1556-6P, MILF22978, MIL-F-22978, 802006, 8-02-00-6, 5325-00-832-5772, 00-832-5772, 5325008325772, 008325772
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAR 1967 | 00-832-5772 | 61968 ( FASTENER ASSEMBLY, TURNLOCK ) |
Drawings & Photos | NSN 5325-00-832-5772
Demand History | NSN 5325-00-832-5772
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-832-5772 | 2014-02-35 | 10 | United States |
| 5325-00-832-5772 | 2010-07-195 | 10 | United States |
| 5325-00-832-5772 | 2008-12-352 | 45 | DIBBS |
Cross Reference | NSN 5325-00-832-5772
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8-02-00-6 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 8-02-00-6 | 17419 | DEUTSCH CO THE |
| FX10-1556-6 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FX10-1556-6P | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MIL-F-22978 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17732-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-832-5772
Related Products | NSN 5325-00-832-5772
Technical Data | NSN 5325-00-832-5772
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 OR STEEL COMP 1045 OR STEEL COMP 1050 OR STEEL COMP 1055 OR STEEL COMP 1060 OR STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 15 STUD SHANK |
| GRIP LENGTH | 0.910 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.373 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |
| DIAMETER | 0.500 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.125 INCHES MAXIMUM |
| TURNLOCK RECEPTACLE STYLE | 31 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.873 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 1.135 INCHES MAXIMUM |
| RECEPTACLE HEIGHT | 0.625 INCHES MAXIMUM |
| RECEPTACLE WIDTH | 0.625 INCHES MAXIMUM |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.466 INCHES MINIMUM AND 0.535 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-22978 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17732-6 |
