Product Details | SNAP FASTENER STUD

5325-01-439-7539 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.

Part Alternates: H24964241, H2496-42-4-1, HN4P4241, HN4P42-4-1, 5325-01-439-7539, 01-439-7539, 5325014397539, 014397539

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 18 DEC 1996 01-439-7539

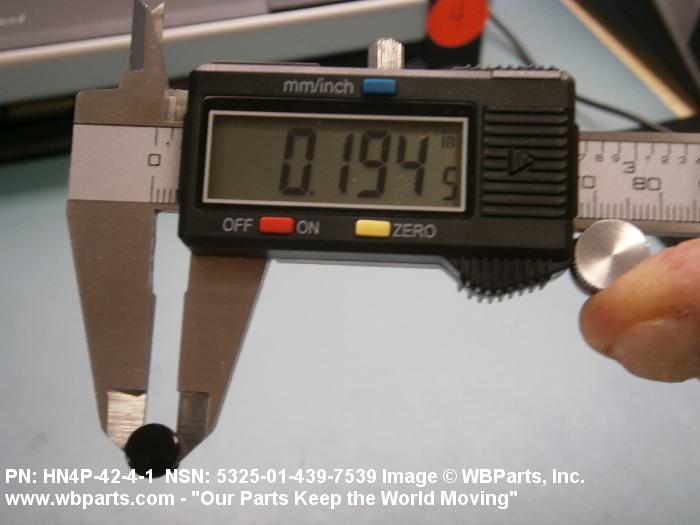

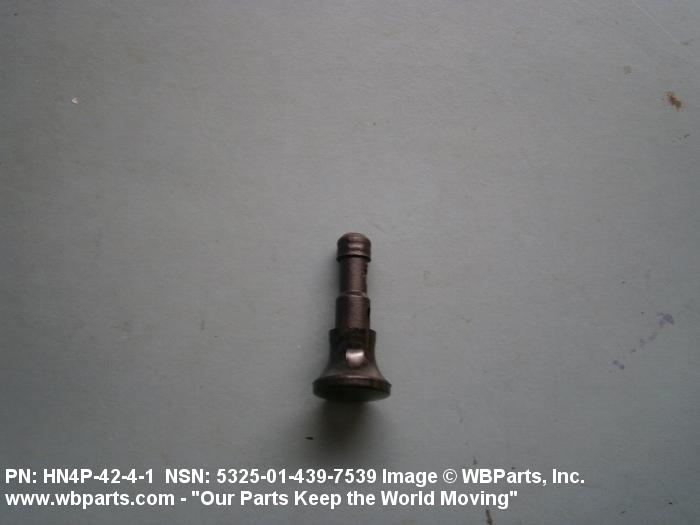

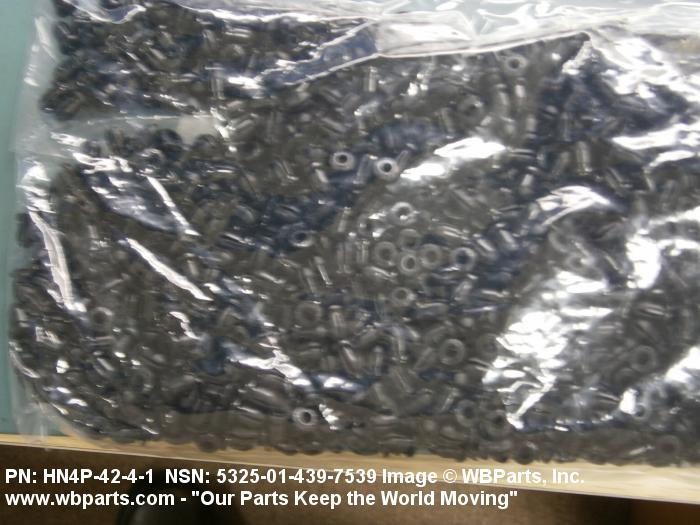

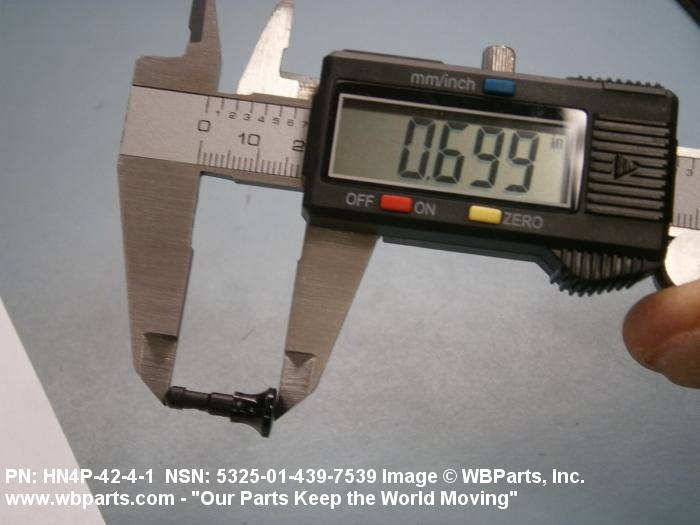

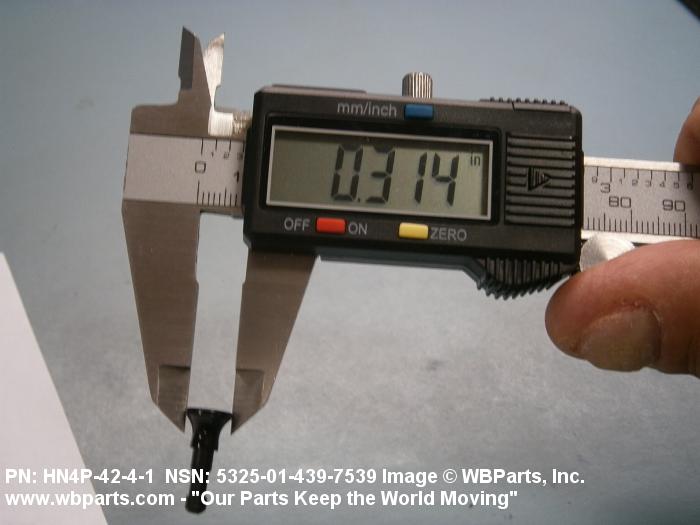

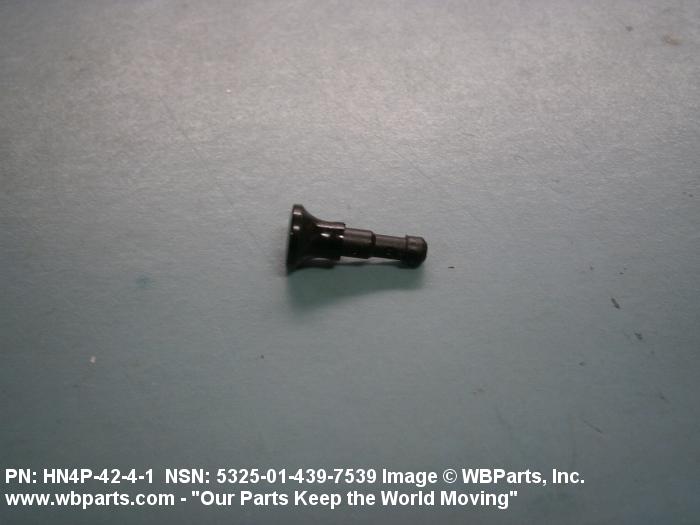

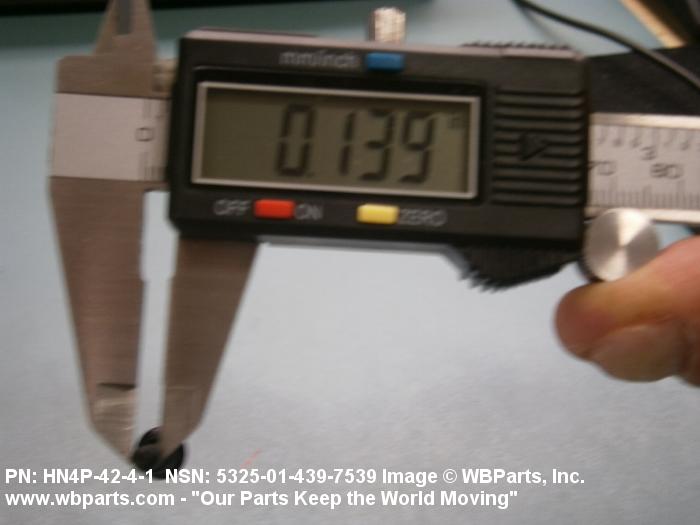

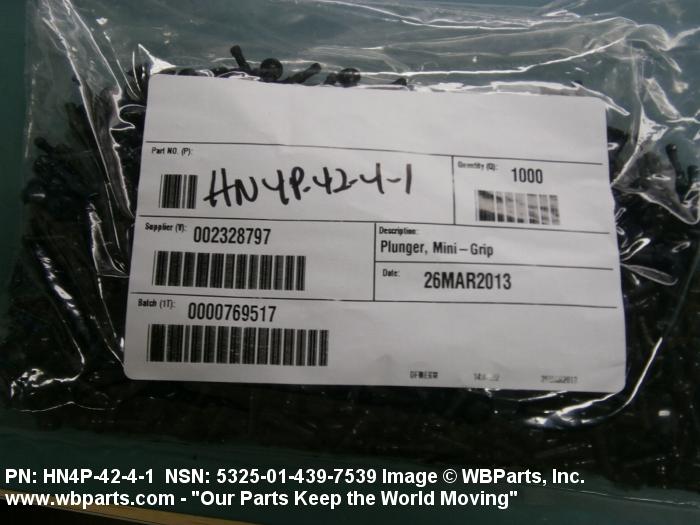

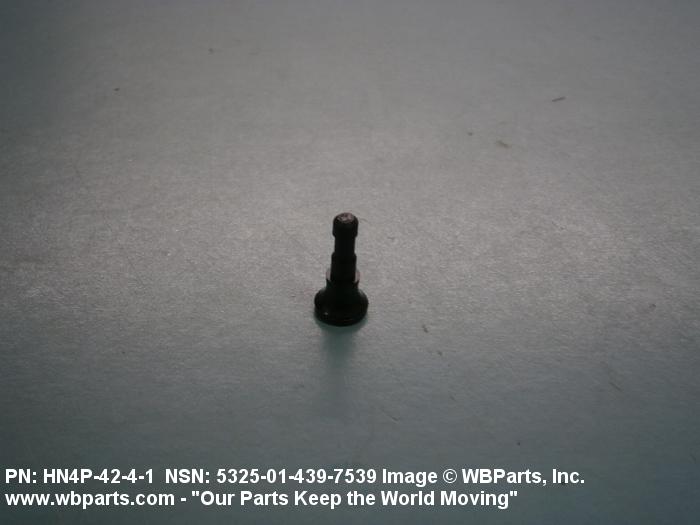

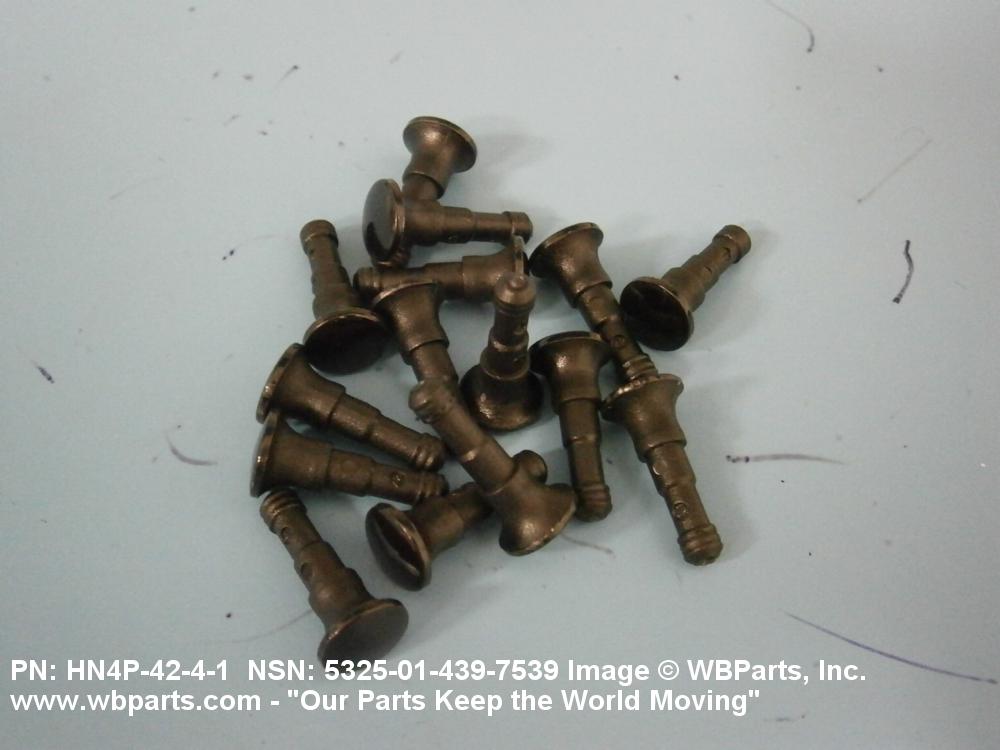

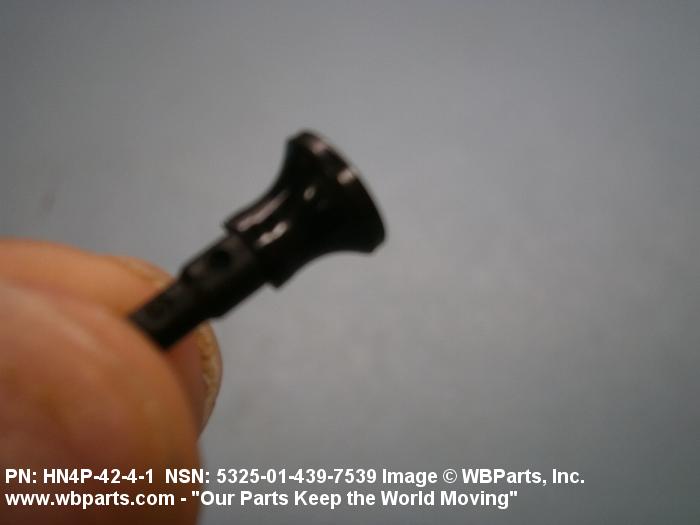

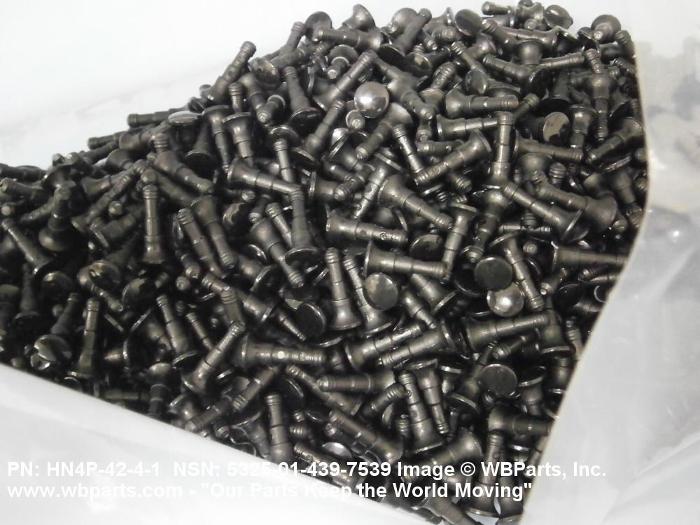

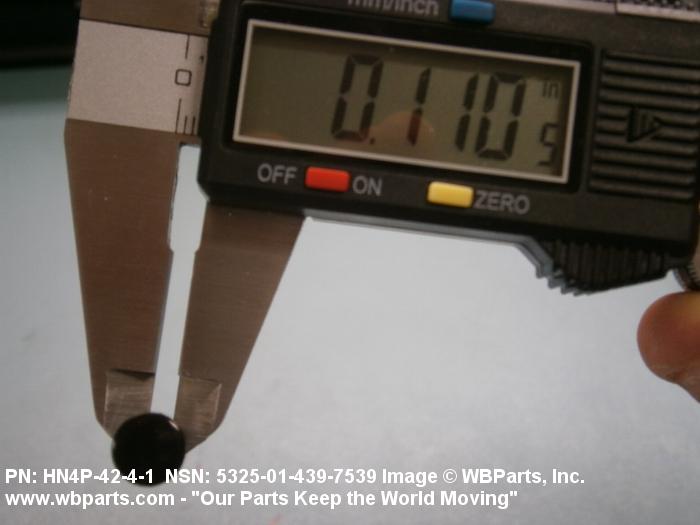

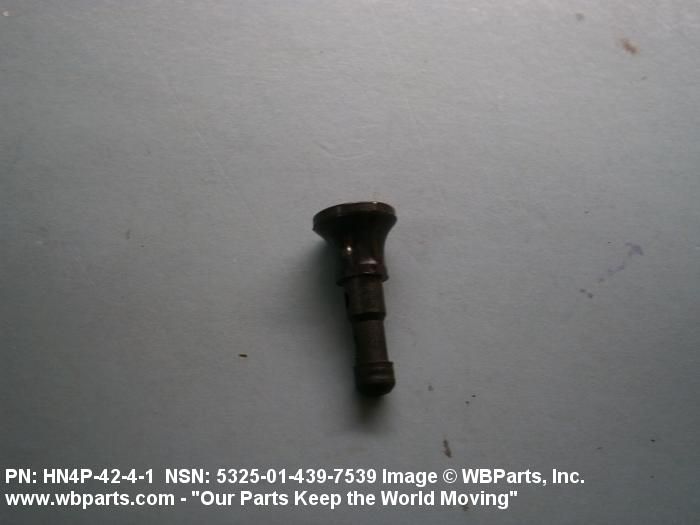

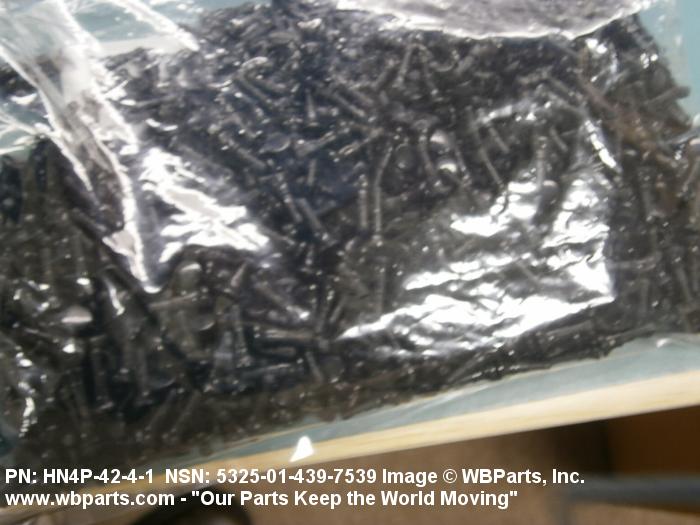

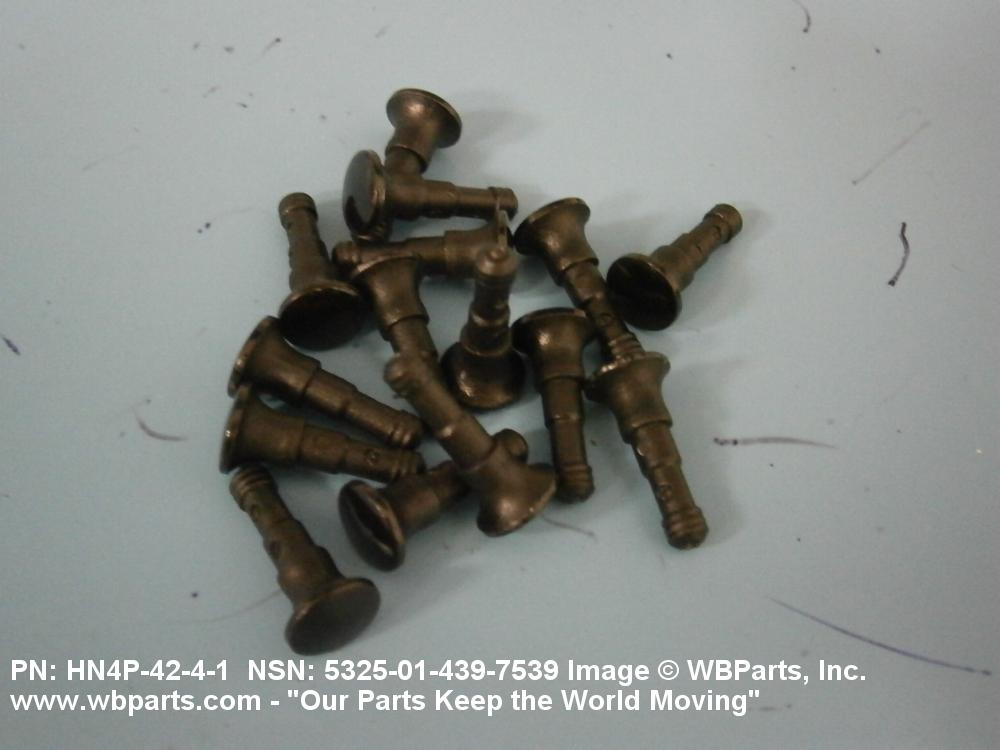

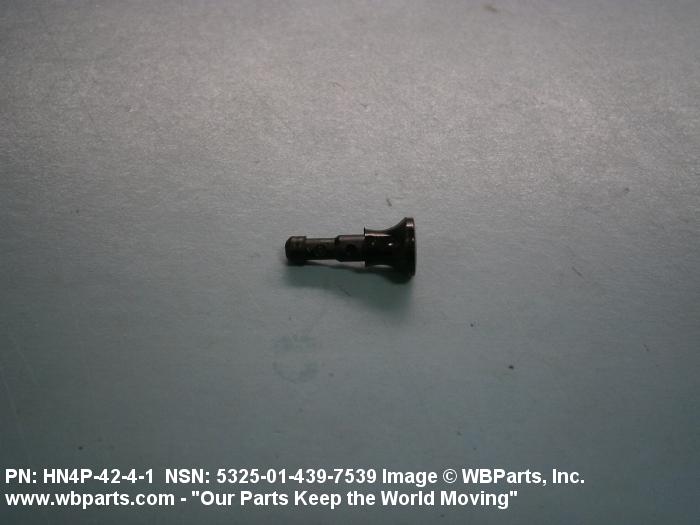

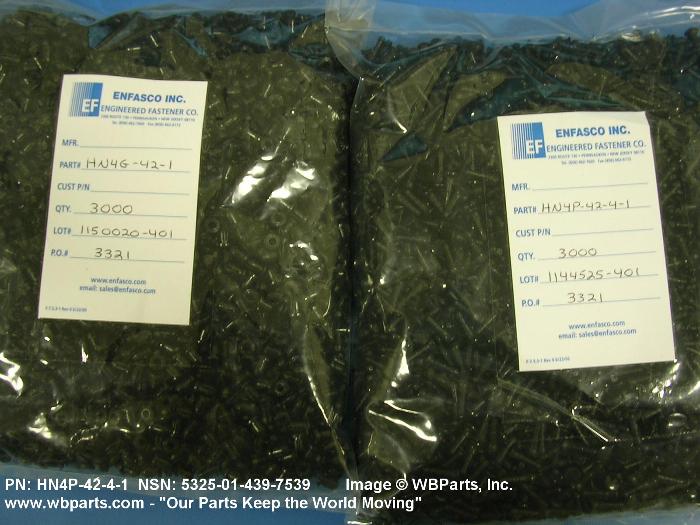

Drawings & Photos | NSN 5325-01-439-7539


Demand History | NSN 5325-01-439-7539

Part Number Request Date QTY Origin
HN4P4241 2024-03-79 37 United Kingdom
HN4P4241 2018-12-351 500 MY
5325-01-439-7539 2013-06-161 3000 Ireland
5325-01-439-7539 2013-06-161 3000 Ireland
5325-01-439-7539 2012-05-136 3000 Ireland
HN4P4241 2011-04-117 10 Canada
5325-01-439-7539 2010-09-250 3000 Ireland
5325-01-439-7539 2010-02-36 3000 Ireland
HN4P4241 2008-06-158 1000 Ireland
HN4P4241 2008-06-158 3000 Ireland
HN4P4241 2008-01-28 1000 Ireland

Cross Reference | NSN 5325-01-439-7539

Part Number Cage Code Manufacturer
H2496-42-4-1 83014 HARTWELL CORPORATION
HN4P42-4-1 83014 HARTWELL CORPORATION
HN4P42-4-1 F6033 TECNOTEC SARL
HN4P42-4-1 F7652 B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-439-7539

Technical Data | NSN 5325-01-439-7539

Characteristic Specifications
MATERIAL PLASTIC POLYAMIDE OVERALL

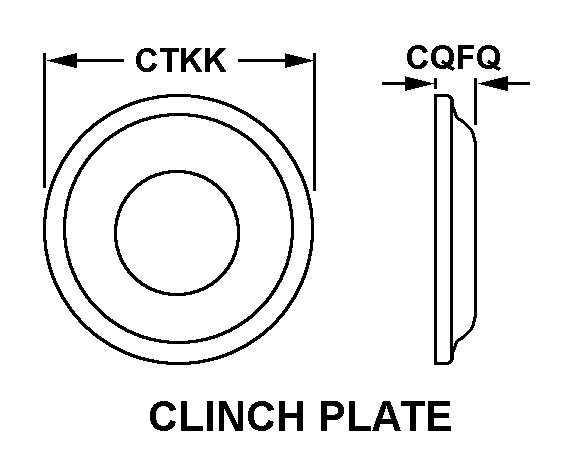

SNAP FASTENER CLINCH PLATE STYLE 1 CLINCH PLATE
PLATE OVERALL HEIGHT 0.280 INCHES NOMINAL
CLINCH PLATE DIAMETER 0.320 INCHES NOMINAL
STUD RETENTION METHOD PUSH ON NUT

Restrictions/Controls & Freight Information | NSN 5325-01-439-7539

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
