NSN 5325-00-276-5877 AN22717BS, AN227-17BS, 00-276-5877
Product Details | SNAP FASTENER STUD
5325-00-276-5877 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Part Alternates: AN22717BS, AN227-17BS, 5325-00-276-5877, 00-276-5877, 5325002765877, 002765877
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-276-5877 | 16550 ( STUD, SNAP FASTENER ) |

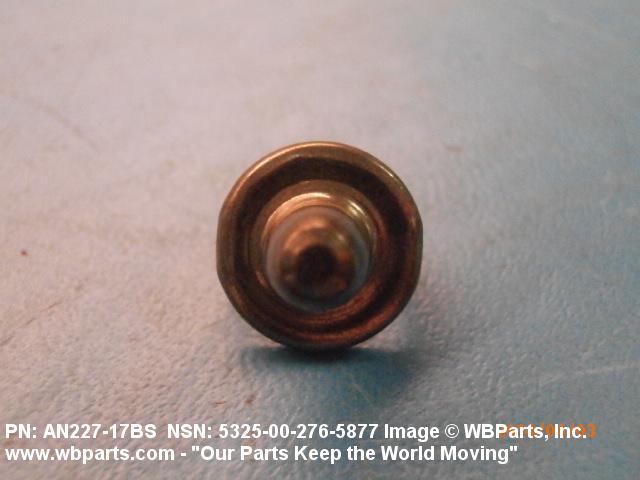

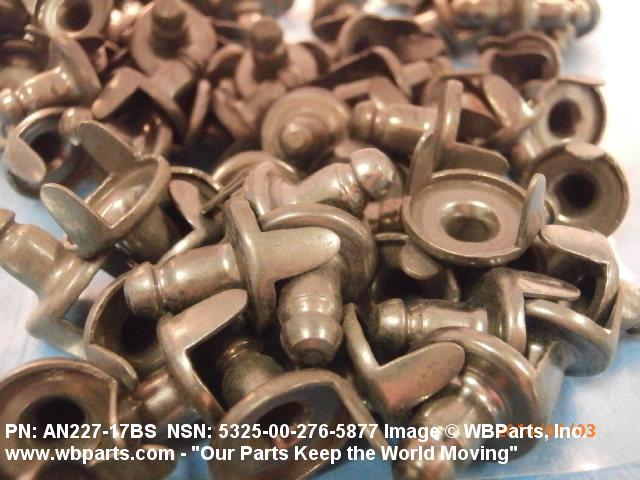

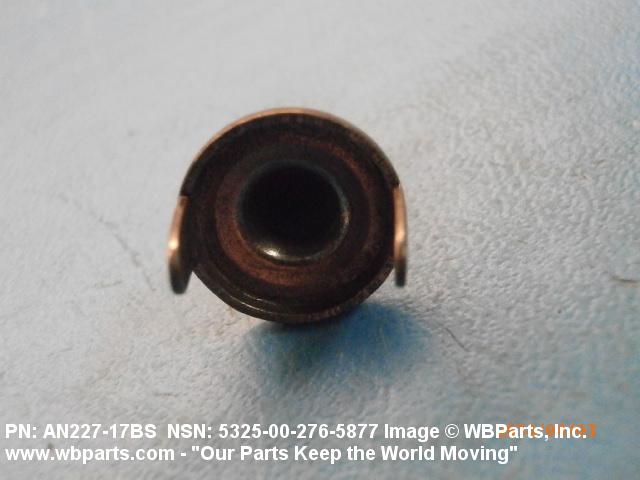

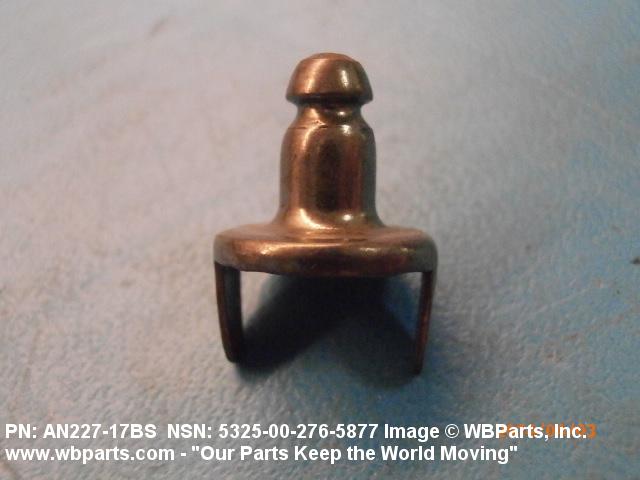

Drawings & Photos | NSN 5325-00-276-5877
Demand History | NSN 5325-00-276-5877
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-276-5877 | 2014-02-38 | 50 | United States |
Cross Reference | NSN 5325-00-276-5877
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-17BS | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-276-5877
Technical Data | NSN 5325-00-276-5877

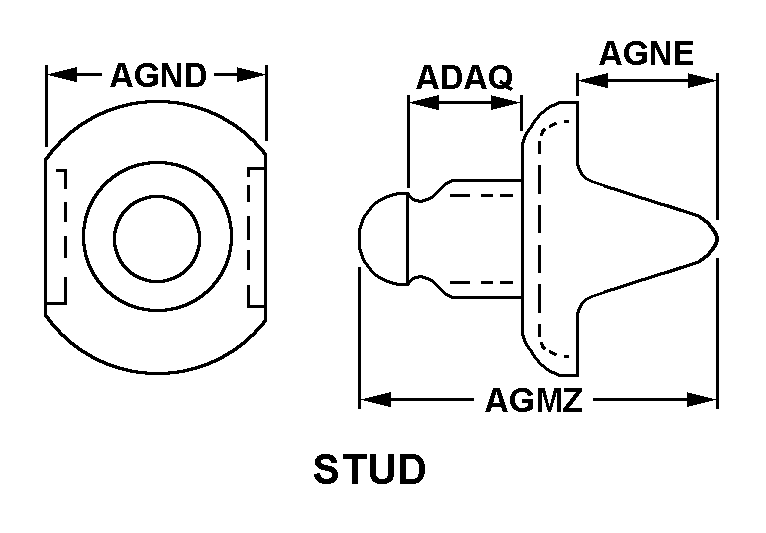

| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY STUD |
| SURFACE TREATMENT | OXIDE FILM STUD |
| SNAP FASTENER STUD STYLE | 19 STUD |

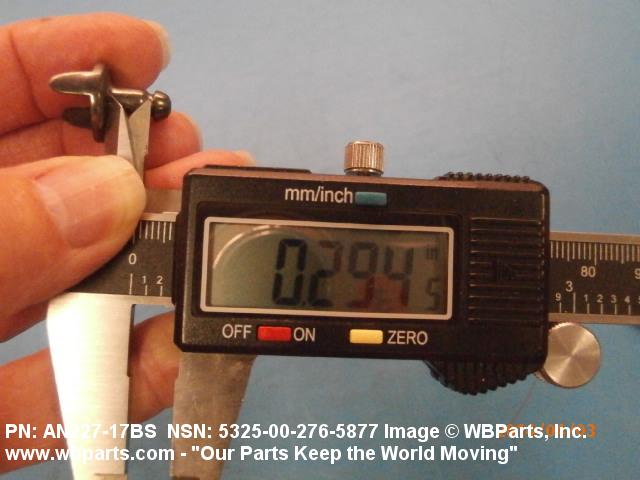

| BODY LENGTH | 0.290 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |

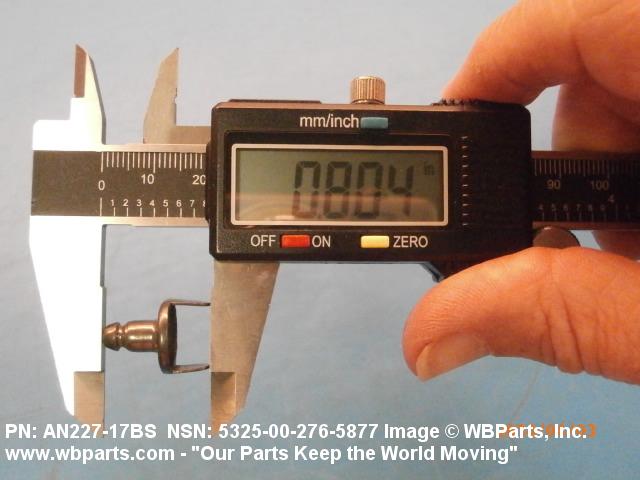

| STUD OVERALL LENGTH | 0.802 INCHES NOMINAL |
| STUD BASE WIDTH ACROSS FLATS | 0.530 INCHES MINIMUM AND 0.555 INCHES MAXIMUM |
| STUD PRONG LENGTH | 0.265 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN227-17BS |
Restrictions/Controls & Freight Information | NSN 5325-00-276-5877
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-276-5877
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
