Product Details | SNAP FASTENER SOCKET

5325-01-439-7541 A component of a FASTENER, SNAP; which is designed as a receptacle for a STUD, SNAP FASTENER. It may be furnished with CAP, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER.

Part Alternates: H2497411, H2497-41-1, HN4G411, HN4G41-1 , 5325-01-439-7541, 01-439-7541, 5325014397541, 014397541

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 18 DEC 1996 01-439-7541

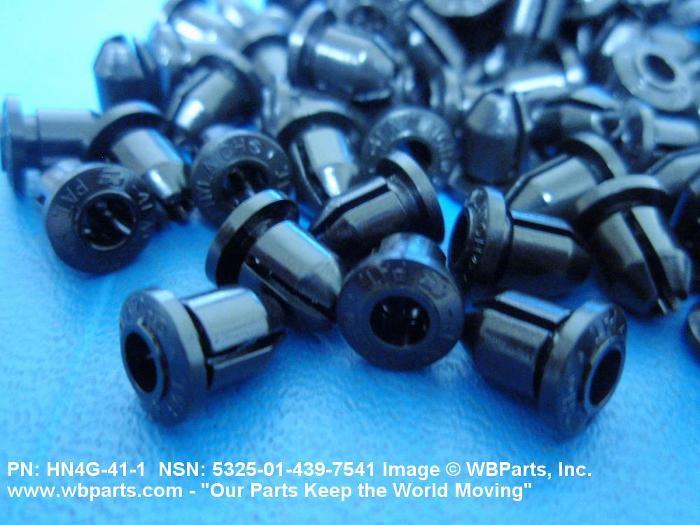

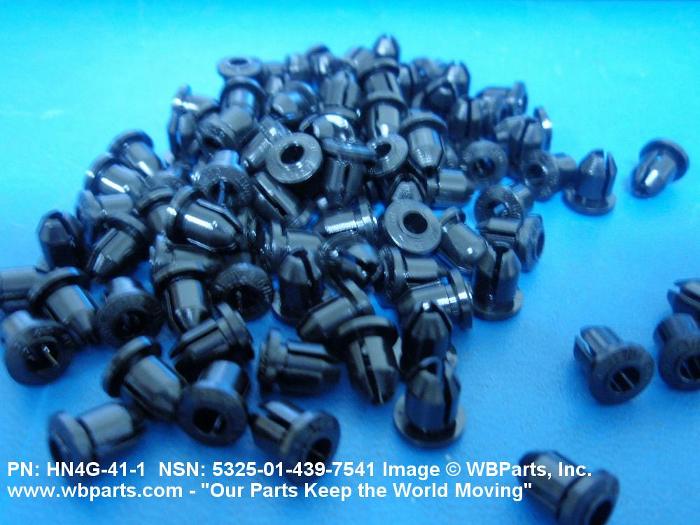

Drawings & Photos | NSN 5325-01-439-7541


Demand History | NSN 5325-01-439-7541

Part Number Request Date QTY Origin
HN4G411 2024-03-86 37 United Kingdom
5325-01-439-7541 2023-03-89 1 US
5325-01-439-7541 2014-07-198 500 US
HN4G411 2011-04-117 10 Canada

Cross Reference | NSN 5325-01-439-7541

Part Number Cage Code Manufacturer
H2497-41-1 83014 HARTWELL CORPORATION
HN4G41-1 83014 HARTWELL CORPORATION
HN4G41-1 B1395 TECHNICAL AIRBORNE COMPONENTS SPRL
HN4G41-1 F6033 TECNOTEC SARL
HN4G41-1 F7652 B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-439-7541

Technical Data | NSN 5325-01-439-7541

Characteristic Specifications
MATERIAL PLASTIC POLYCARBONATE OVERALL
SNAP FASTENER CLINCH PLATE STYLE 1 CLINCH PLATE
PLATE OVERALL HEIGHT 0.079 INCHES NOMINAL
CLINCH PLATE DIAMETER 0.336 INCHES NOMINAL

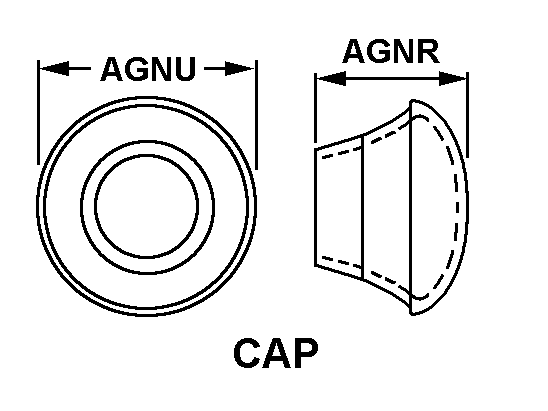

CAP STYLE 11 CAP
CAP OVERALL LENGTH 0.380 INCHES NOMINAL
CAP HEAD DIAMETER 0.630 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5325-01-439-7541

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information

Management | NSN 5325-01-439-7541

Category Code Description
Inventory Account CodesA Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required.
Inventory Account Codes0 Item not controlled by serial number.
Special Material Content Codes9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyZQCCommanding Officer
Department of Homeland Security
USCG Aviation Logistics Center
1664 Weeksville Road
Elizabeth City, NC 27909
AgencyGPU.S. Coast Guard
Service OrganizationCU.S. Coast Guard
ReparabilityC
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
