NSN 5325-01-184-7784 PC9100898, PC91008-9-8, 10119309
Product Details | TURNLOCK FASTENER STUD
5325-01-184-7784 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: PC9100898, PC91008-9-8, 10119309 , 82-16-240-31, 5325-01-184-7784, 01-184-7784, 5325011847784, 011847784, 821624031
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1984 | 01-184-7784 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-184-7784
Demand History | NSN 5325-01-184-7784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 82-16-240-31 | 2019-02-43 | 36 | DIBBS |
| 5325-01-184-7784 | 2018-12-346 | 36 | DIBBS |
| 5325-01-184-7784 | 2018-11-313 | 175 | DIBBS |
| 5325-01-184-7784 | 2018-11-305 | 175 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-184-7784
Technical Data | NSN 5325-01-184-7784
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

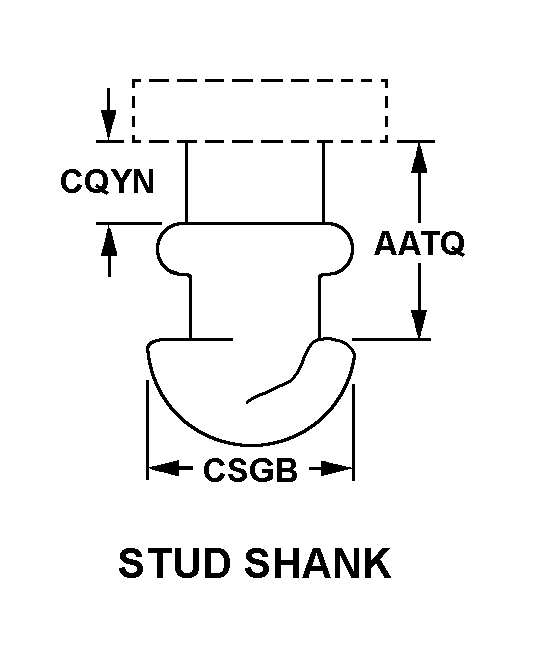

| TURNLOCK STUD SHANK STYLE | 8 STUD SHANK |
| GRIP LENGTH | 0.385 INCHES NOMINAL |
| SHANK NECK LENGTH | 0.267 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.240 INCHES NOMINAL |

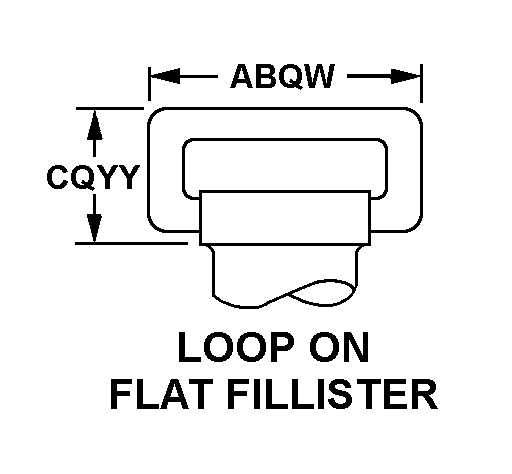

| TURNLOCK STUD HEAD STYLE | 8 LOOP ON FLAT FILLISTER |
| HEAD LENGTH | 0.719 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.641 INCHES NOMINAL |
| SECURING DEVICE TYPE | RING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.230 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-01-184-7784
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
