Product Details | TURNLOCK FASTENER STUD

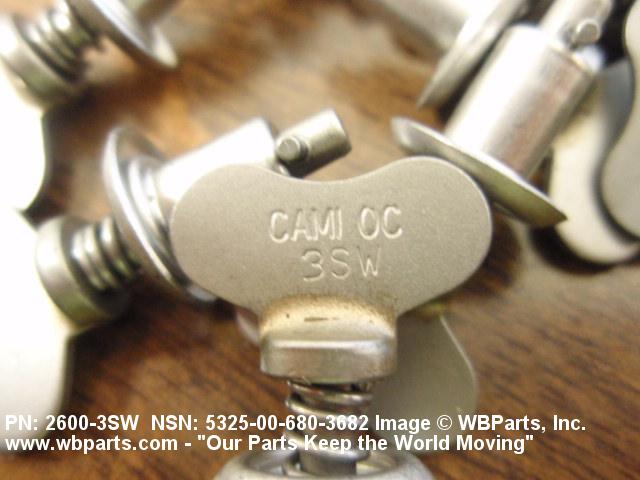

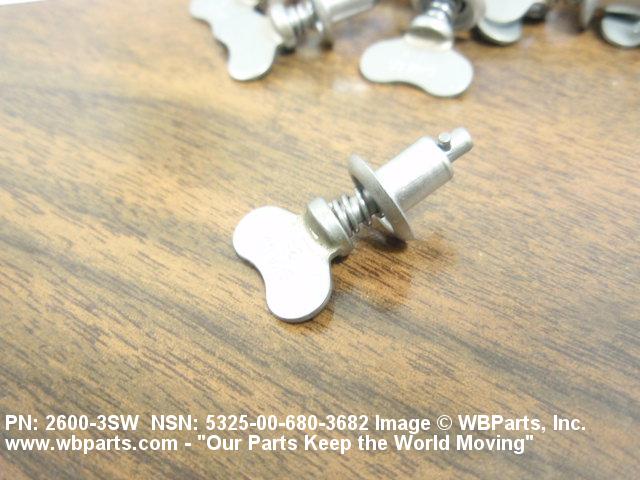

5325-00-680-3682 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: 11466734-1, 26003SW, 2600-3SW, 2600SW3, 5325-00-680-3682, 00-680-3682, 5325006803682, 114667341, 006803682

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-680-3682

Drawings & Photos | NSN 5325-00-680-3682


Demand History | NSN 5325-00-680-3682

Part Number Request Date QTY Origin
26003SW 2023-02-46 572 United States
26003SW 2018-08-225 10 United States
5325-00-680-3682 2014-10-293 329 DIBBS
5325-00-680-3682 2014-10-281 329 DIBBS
26003SW 2011-01-24 5 us
26003SW 2010-10-299 55 India
26003SW 2010-09-246 2 United States
5325-00-680-3682 2010-07-188 56 United States
5325-00-680-3682 2009-06-163 5000 United States
2600SW3 2009-04-97 5 Portugal
5325-00-680-3682 2008-10-291 968 DIBBS
5325-00-680-3682 2008-10-283 900 DIBBS

Cross Reference | NSN 5325-00-680-3682

Part Number Cage Code Manufacturer
11466734-1 18876 U S ARMY AVIATION AND MISSILE COMMAND
2600-3SW 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
2600-3SW D0680 ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
2600SW3 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-680-3682

Technical Data | NSN 5325-00-680-3682

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
TURNLOCK STUD SHANK STYLE 11 STUD SHANK
GRIP LENGTH 0.600 INCHES NOMINAL
STUD SHANK MAJOR DIAMETER 0.128 INCHES NOMINAL
TURNLOCK STUD HEAD STYLE 10 FILLISTER WING
HEAD LENGTH 0.720 INCHES NOMINAL
STUD HEAD HEIGHT 0.440 INCHES NOMINAL
MATERIAL ACCOMMODATED THICKNESS 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
MANUFACTURERS CODE 18876
DESIGN CONTROL REFERENCE 11466734-1
