NSN 5325-00-680-3762 MS21209C115, MS21209-C115, MS21209C1-15

Product Details | SCREW THREAD INSERT

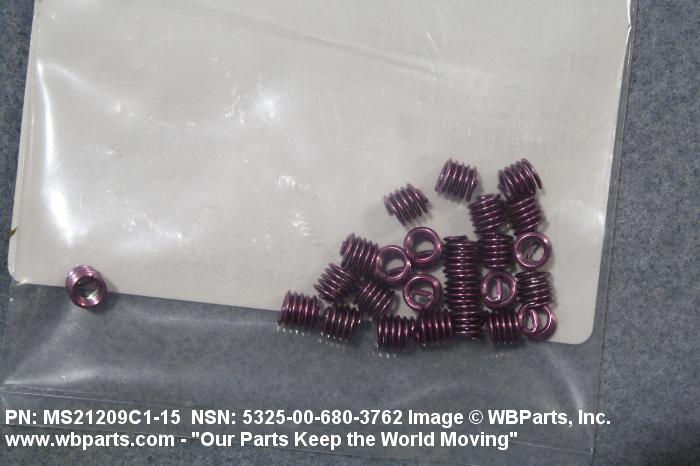

5325-00-680-3762 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS21209C115, MS21209-C115, MS21209C1-15, 5628925, 562892-5, 69678318, 69678-3-18, 9011109, 9508631101, 950863-1101, 1090-41565 ITEM 27, 109041565ITEM27, 15099-41550 ITEM 35, 1509941550ITEM35, 187231, 209C10285, 209C1-0285, 218082, 337049, 35853CN0285, 3585-3CN0285, 35853CN285, 3585-3CN285, 35853CNX0285, 3585-3CNX0-285, 35853CNX285, 3585-3CNX285, 364MR8P5, 37080010B, 37080-010B, 5325-00-680-3762, 00-680-3762, 5340006803762 , 5325006803762, 006803762

Hardware and Abrasives | Fastening Devices
