Product Details | TURNLOCK FASTENER STUD

5325-00-680-3683 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.

Part Alternates: 0N0204644, 0N020464-4, 5W200, 85-12-200-16, 5325-00-680-3683, 00-680-3683, 5325006803683, 006803683, 851220016

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-680-3683

Drawings & Photos | NSN 5325-00-680-3683


Demand History | NSN 5325-00-680-3683

Part Number Request Date QTY Origin
851220016 2011-07-208 100 US

Cross Reference | NSN 5325-00-680-3683

Part Number Cage Code Manufacturer
0N020464-4 98230 NATIONAL SECURITY AGENCY
5W200 75618 SOUTHCO INC NEW YORK DIV
5W200 94222 SOUTHCO, INC.
85-12-200-16 94222 SOUTHCO, INC.
85-12-200-16 U4447 SOUTHCO EUROPE LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-680-3683

Technical Data | NSN 5325-00-680-3683

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL

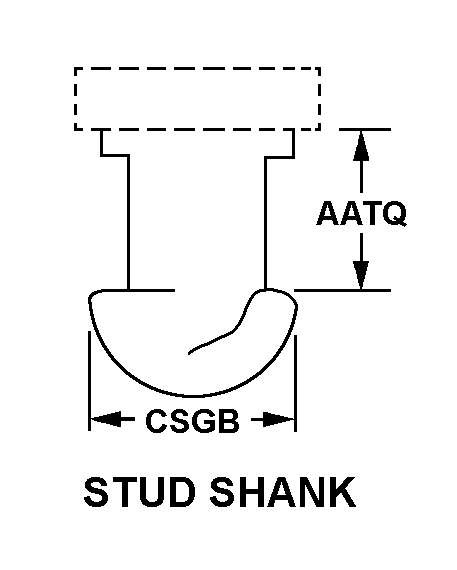

TURNLOCK STUD SHANK STYLE 9 STUD SHANK
GRIP LENGTH 0.305 INCHES NOMINAL
STUD SHANK MAJOR DIAMETER 0.290 INCHES NOMINAL
TURNLOCK STUD HEAD STYLE 10 FILLISTER WING
HEAD LENGTH 1.125 INCHES NOMINAL
STUD HEAD HEIGHT 0.437 INCHES NOMINAL
MATERIAL ACCOMMODATED THICKNESS 0.190 INCHES MINIMUM AND 0.209 INCHES MAXIMUM
MANUFACTURERS CODE 94222
DESIGN CONTROL REFERENCE 85-12-200-16
