NSN 5325-01-184-7785 ST3M472F5C2040M, 1120342040, 112034-2040
Product Details | TURNLOCK FASTENER STUD
5325-01-184-7785 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: ST3M472F5C2040M, 1120342040, 112034-2040, 5325-01-184-7785, 01-184-7785, 5325011847785, 011847785
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1984 | 01-184-7785 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-184-7785
Cross Reference | NSN 5325-01-184-7785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112034-2040 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| ST3M472F5C2040M | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| ST3M472F5C2040M | 59570 | TRICO MANUFACTURING INC. |
| ST3M472F5C2040M | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| ST3M472F5C2040M | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M472F5C2040M | 76530 | TRW INC TRW ELECTRONICS COMPONENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-184-7785
Technical Data | NSN 5325-01-184-7785
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

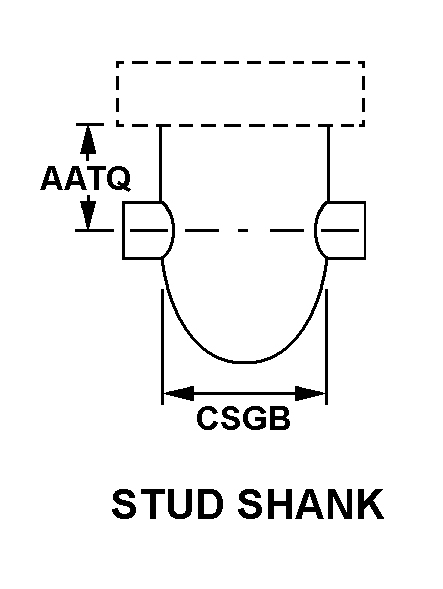

| TURNLOCK STUD SHANK STYLE | 11 STUD SHANK |
| GRIP LENGTH | 2.227 INCHES MINIMUM AND 2.237 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.262 INCHES MINIMUM AND 0.267 INCHES MAXIMUM |

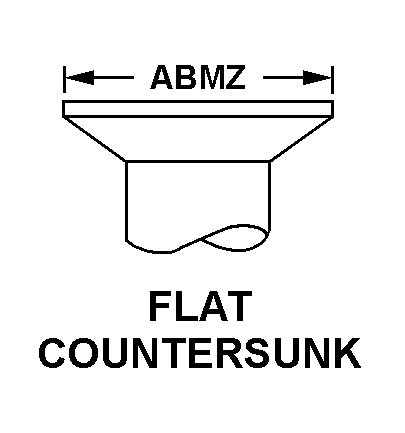

| TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |
