Product Details | RETAINING RING

5325-01-071-8458 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: 10S0511AA, 10S05-1-1AA, 5325-01-071-8458, 01-071-8458, 5325010718458, 010718458

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 15 FEB 1979 01-071-8458

Drawings & Photos | NSN 5325-01-071-8458


Cross Reference | NSN 5325-01-071-8458

Part Number Cage Code Manufacturer
10S05-1-1AA 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-071-8458

Technical Data | NSN 5325-01-071-8458

Characteristic Specifications
MATERIAL CRES,AMS 5673
SURFACE TREATMENT PASSIVATED, QQ-P-35
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED

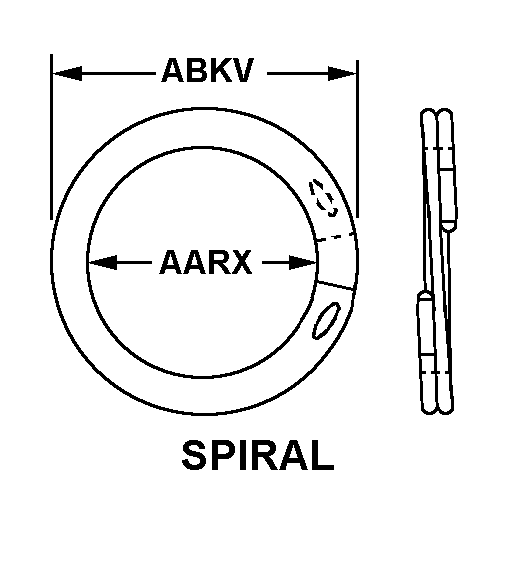

RING STYLE A60 SPIRAL
INSIDE DIAMETER 0.310 INCHES MINIMUM AND 0.324 INCHES MAXIMUM
OUTSIDE DIAMETER 0.405 INCHES NOMINAL
CROSS-SECTIONAL SHAPE STYLE D12 DOUBLE OVAL
MAJOR THICKNESS 0.012 INCHES MINIMUM AND 0.030 INCHES MAXIMUM
USAGE DESIGN EXTERNAL OR INTERNAL
