Product Details | NONMETALLIC GROMMET
5325-01-071-8819 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 103, 103G, 12007141, 26665891, 2666589-1, 4820801, 482080-1, 5325-01-071-8819, 01-071-8819, 5325010718819, 010718819
Hardware and Abrasives | Fastening Devices
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 16 FEB 1979 | 01-071-8819 | 33729 ( GROMMET, NONMETALLIC ) |
Demand History | NSN 5325-01-071-8819
Part Number | Request Date | QTY | Origin |
---|---|---|---|
103 | 2024-07-206 | 15 | United States |
103 | 2022-03-62 | 1 | us |
5325-01-071-8819 | 2014-03-85 | 286 | DIBBS |
Cross Reference | NSN 5325-01-071-8819
Part Number | Cage Code | Manufacturer |
---|---|---|
103 | 13103 | THERMALLOY CO INC |
103 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
103G | 13103 | THERMALLOY CO INC |
12007141 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
2666589-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
482080-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
482080-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-071-8819
Related Products | NSN 5325-01-071-8819
Technical Data | NSN 5325-01-071-8819
Characteristic | Specifications |
---|---|
MATERIAL | PLASTIC OVERALL |
COLOR | ANY ACCEPTABLE OVERALL |

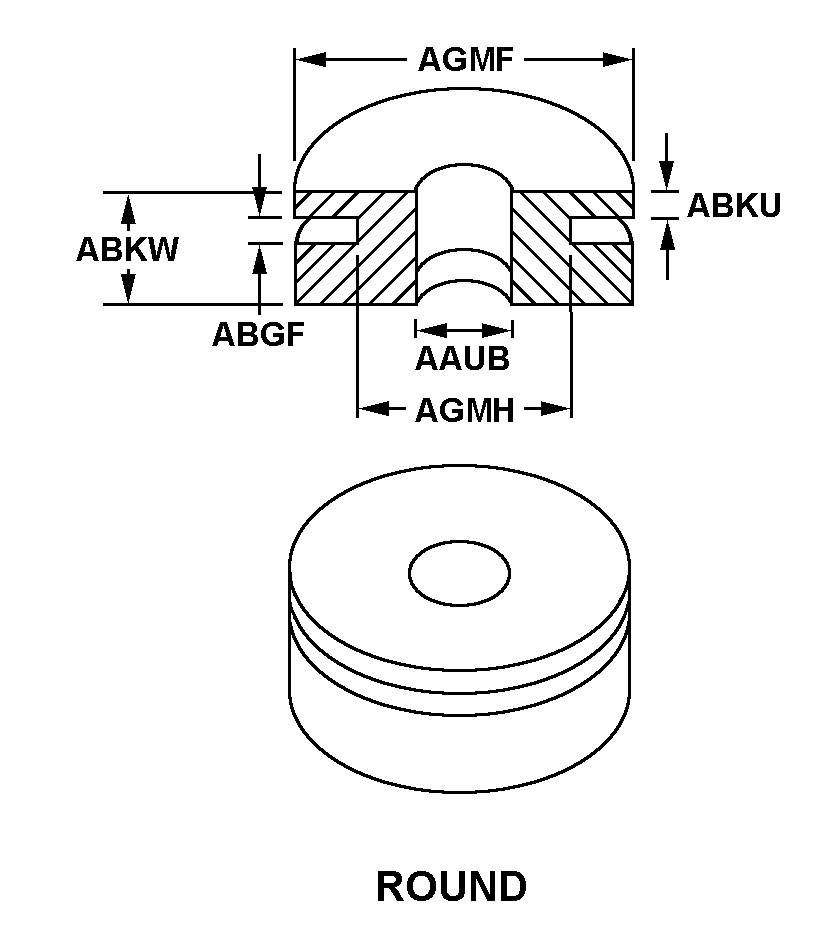

GROMMET STYLE | 2 ROUND |
HOLE DIAMETER | 0.137 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |
GROOVE WIDTH | 0.058 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
FLANGE THICKNESS | 0.091 INCHES MINIMUM AND 0.096 INCHES MAXIMUM |
OVERALL HEIGHT | 0.264 INCHES MINIMUM AND 0.298 INCHES MAXIMUM |
LARGE FLANGE OUTSIDE DIAMETER | 0.358 INCHES MINIMUM AND 0.392 INCHES MAXIMUM |
GROOVE OUTSIDE DIAMETER | 0.193 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
GROMMET CONSTRUCTION TYPE | SOLID |
MANUFACTURERS CODE | 19204 |
DESIGN CONTROL REFERENCE | 12007141 |
Restrictions/Controls & Freight Information | NSN 5325-01-071-8819
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
Less than car load rating | P | 77.5 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 596 | unknown |
Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-071-8819
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Materiel Management Code | 5 | General Property Materiel15; 16; 18; 31; 35; 39; 40; 44; 49 except 4910, 4925, 4930, 4931, 4933, 4935; 51; 52; 53; 63; 65 except 6545; 69; 70; 71; 72; 73; 74; 75; 76; 77; 78; 79; 80; 81 except 8140; 83; 84; 85; 87; 88; 89; 91; 93; 94; 95; 96; 99 10.3-125 |
Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
