5325-01-071-8822 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.

Part Alternates: 91S212W, 91S2-12W, 5325-01-071-8822, 01-071-8822, 5325010718822, 010718822

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 16 FEB 1979 01-071-8822

Drawings & Photos | NSN 5325-01-071-8822


Cross Reference | NSN 5325-01-071-8822

Part Number Cage Code Manufacturer
91S2-12W 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-071-8822

Technical Data | NSN 5325-01-071-8822

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

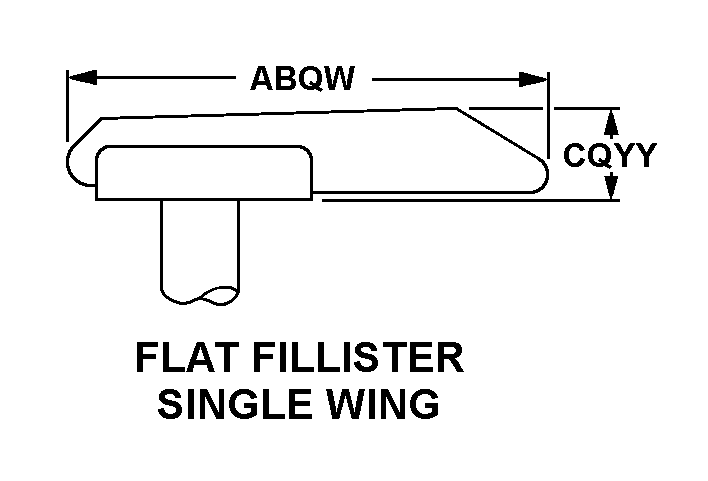

TURNLOCK STUD HEAD STYLE 25 FLAT FILLISTER SINGLE WING
HEAD LENGTH 2.130 INCHES NOMINAL
STUD HEAD HEIGHT 0.900 INCHES MINIMUM AND 0.980 INCHES MAXIMUM
STUD ASSEMBLY STYLE 19 STUD ASSEMBLY
DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD ANY ACCEPTABLE
STUD DIAMETER 0.372 INCHES MINIMUM AND 0.378 INCHES MAXIMUM
SECURING DEVICE TYPE WASHER
MATERIAL ACCOMMODATED THICKNESS 0.365 INCHES MINIMUM AND 0.394 INCHES MAXIMUM
