NSN 5325-00-851-8122 MS279831N, MS27983-1N, 00-851-8122
Product Details | SNAP FASTENER CAP
5325-00-851-8122 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.
Part Alternates: MS279831N, MS27983-1N, 5325-00-851-8122, 00-851-8122, 5325008518122, 008518122
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-851-8122 | 16556 ( CAP, SNAP FASTENER ) |

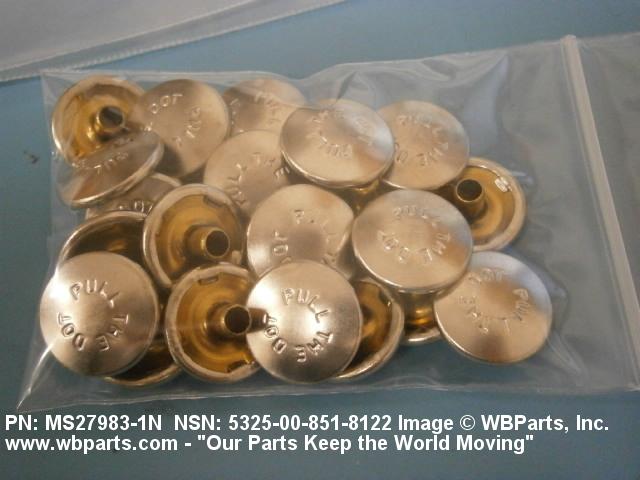

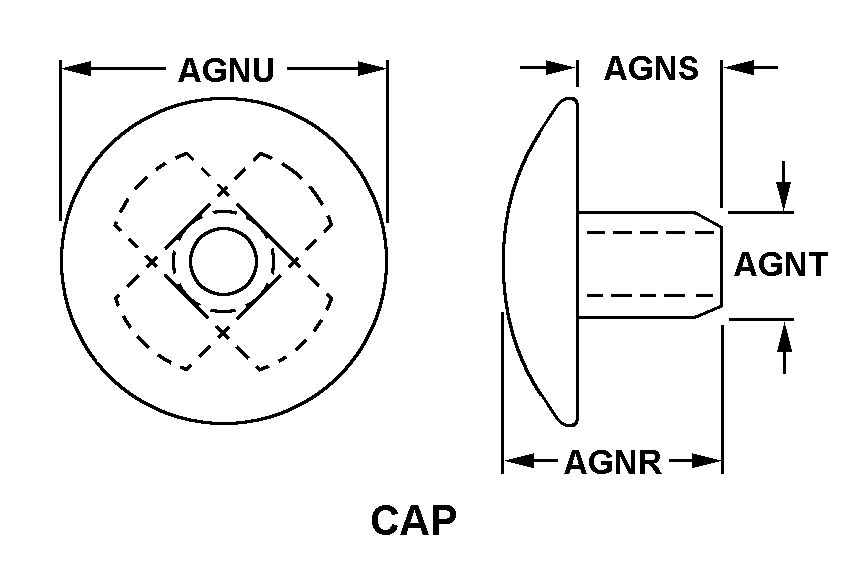

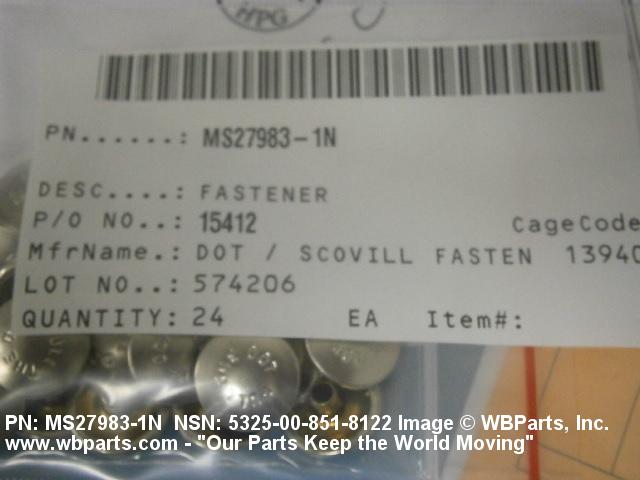

Drawings & Photos | NSN 5325-00-851-8122
Demand History | NSN 5325-00-851-8122
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-851-8122 | 2024-09-254 | 19754 | DIBBS |
| 5325-00-851-8122 | 2024-09-246 | 19754 | DIBBS |
| 5325-00-851-8122 | 2024-02-48 | 3000 | Singapore |
| 5325-00-851-8122 | 2023-11-317 | 11074 | DIBBS |
| 5325-00-851-8122 | 2023-11-316 | 11074 | DIBBS |
| 5325-00-851-8122 | 2023-08-220 | 8327 | DIBBS |
| 5325-00-851-8122 | 2023-05-143 | 11074 | DIBBS |
| MS279831N | 2023-03-88 | 1 | US |
| 5325-00-851-8122 | 2022-12-347 | 3000 | AE |
| 5325-00-851-8122 | 2019-03-65 | 3000 | DIBBS |
| 5325-00-851-8122 | 2017-05-150 | 5098 | DIBBS |
| 5325-00-851-8122 | 2017-05-141 | 5098 | DIBBS |
| 5325-00-851-8122 | 2013-03-73 | 500 | us |
| 5325-00-851-8122 | 2012-01-12 | 24 | United States |
| 5325-00-851-8122 | 2008-07-189 | 5078 | DIBBS |
Cross Reference | NSN 5325-00-851-8122
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27983-1N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-851-8122
Related Products | NSN 5325-00-851-8122
Technical Data | NSN 5325-00-851-8122
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| CAP STYLE | 2 CAP |
| CAP OVERALL LENGTH | 0.281 INCHES NOMINAL |
| CAP SHANK LENGTH | 0.156 INCHES NOMINAL |
| CAP SHANK DIAMETER | 0.156 INCHES NOMINAL |
| CAP HEAD DIAMETER | 0.609 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27983-1N |
Restrictions/Controls & Freight Information | NSN 5325-00-851-8122
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-851-8122
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
