NSN 5325-00-851-9028 00-851-9028, 008519028
Product Details | PANEL FASTENER INSERT
5325-00-851-9028 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: 5325-00-851-9028, 00-851-9028, 5325008519028, 008519028
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-851-9028 | 37444 ( INSERT, PANEL FASTENER ) |

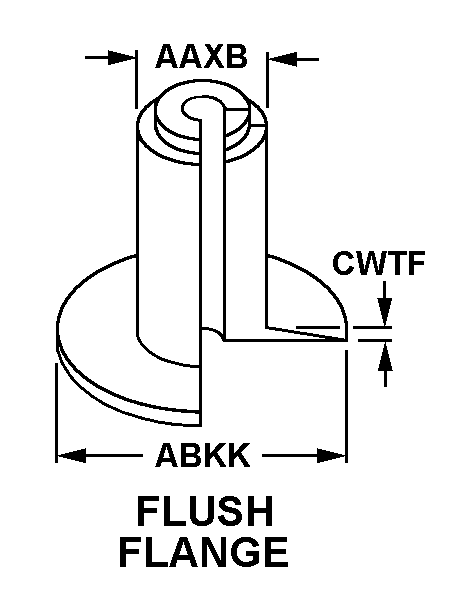

Drawings & Photos | NSN 5325-00-851-9028
Cross Reference | NSN 5325-00-851-9028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80-011P11D1-0 | 56958 | YOUNG ENGINEERS INC. THE |
| 80-011P11D1-0 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 80-011P11D1-0 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| 80-011P11D1-0 | 97499 | BELL HELICOPTER TEXTRON INC. |
| P102D25-3 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| P102D25-3 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-851-9028
Technical Data | NSN 5325-00-851-9028
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| INSERT STYLE | 2 FLUSH FLANGE |
| SHOULDER DIAMETER | 0.372 INCHES NOMINAL |
| FLANGE DIAMETER | 0.750 INCHES NOMINAL |
| FLANGE THICKNESS | 0.023 INCHES NOMINAL |
| HOLE TYPE | PLAIN |
| HOLE DIAMETER | 0.256 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.344 INCHES NOMINAL |
| FEATURES PROVIDED | GROMMET |
Restrictions/Controls & Freight Information | NSN 5325-00-851-9028
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
